DELIVERY PERIOD : 1-2 WEEKS  Part Type FAN Part Number 5915PC-20T-B20-S01 Brand NMB Size 150 mm x 170 mm x 38 mm Length 170 mm Width 150 mm height 38 mm voltage 200/240V Power 25-44W 23-44W Frequency [Hz] 50 Input Power (+10% or -20%) [W] 22 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 800 Max. Air Flow [CFM] 141.2 Max. Air Flow [m3 per min] 4 Max. Static Pressure [In H2O] 0.393 Max. Static Pressure [Pa] 98 Noise [dB] 46 Fan Speed [RPM] 2200 Bearing Type Ball Bearing

Read more less

DELIVERY PERIOD : 1-2 WEEKS  SKU 5915PC-20T-B30-S01 Part Type Cooling Fan, Thermal Fans, Server Fan, Computer Fan, Industral Fan Manufacturer NMB Part Number 5915PC-20T-B30-S01 Other Name 5915PC20TB30S01 AC/DC AC Size 170 mm x 150 mm x 38 mm Power 42/40W Voltage 200V Frequency [Hz] 50 Input Power (+10% or -20%) [W] 34 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 800 Max. Air Flow [CFM] 176.5 Max. Air Flow [m3 per min] 5 Max. Static Pressure [In H2O] 0.629 Max. Static Pressure [Pa] 156.8 Noise [dB] 52 Fan Speed [RPM] 2700 Bearing Type Ball Bearing

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 5915PC-20W-B30 other name 5915PC-2OW-B3O,5915PC20WB30 AC/DC AC Fans Fan Type Axial Size 150 mm x 172 mm x 38 mm Voltage 200V PoWer 26/34W Bearing Type Ball Bearing Frequency [Hz] 60 Input Power (+10% or -20%) [W] 40 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 900 Max. Air Flow [CFM] 225 Max. Air Flow [m3 per min] 6.3 Max. Static Pressure [In H2O] 0.66 Max. Static Pressure [Pa] 163.8 Noise [dB] 53 Fan Speed [RPM] 3150

Read more less

DELIVERY PERIOD : 1-2 WEEKS SKU 5915PC-20W-B30-SM4 Part Type Cooling Fan, Thermal Fans, Server Fan, Computer Fan, Industral Fan Manufacturer NMB Part Number 5915PC-20W-B30-SM4 Other Name 5915PC20WB30SM4 AC/DC AC Size 172 mm x 150 mm x 51 mm Power 42/40W Voltage 200V Frequency [Hz] 60 Input Power (+10% or -20%) [W] 40 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 900 Max. Air Flow [CFM] 225 Max. Air Flow [m3 per min] 6.3 Max. Static Pressure [In H2O] 0.66 Max. Static Pressure [Pa] 163.8 Noise [dB] 53 Fan Speed [RPM] 3150 Bearing Type Ball Bearing

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 5915PC-22T-B20 other name 5915PC-22T-B2O,5915PC22TB20 AC/DC AC Fans Fan Type Axial Size 150 mm x 172 mm x 38 mm Voltage 220V PoWer 23/26W Bearing Type Ball Bearing Frequency [Hz] 50 Input Power (+10% or -20%) [W] 23 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 800 Max. Air Flow [CFM] 141.2 Max. Air Flow [m3 per min] 4 Max. Static Pressure [In H2O] 0.393 Max. Static Pressure [Pa] 98 Noise [dB] 46

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 5915PC-22T-B20 other name 5915PC-22T-B2O,5915PC22TB20 AC/DC AC Fans Fan Type Axial Size 150 mm x 172 mm x 38 mm Voltage 220V PoWer 23/26W Bearing Type Ball Bearing Frequency [Hz] 50 Input Power (+10% or -20%) [W] 23 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 800 Max. Air Flow [CFM] 141.2 Max. Air Flow [m3 per min] 4 Max. Static Pressure [In H2O] 0.393 Max. Static Pressure [Pa] 98 Noise [dB] 46

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Part Type FAN Part Number 5915PC-22W-B30-SM1 Brand NMB Size 150 mm x 172 mm x 38 mm Length 172 mm Width 150 mm height 38 mm voltage 220V Power 12/40W Frequency [Hz] 60 Input Power (+10% or -20%) [W] 40 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 900 Max. Air Flow [CFM] 225 Max. Air Flow [m3 per min] 6.3 Max. Static Pressure [In H2O] 0.66 Max. Static Pressure [Pa] 163.8 Noise [dB] 53 Fan Speed [RPM] 3150 Bearing Type Ball Bearing

Read more less

Manufacturer NMB Part number 5915PC-23T-B20-A00 other name 5915PC23TB20A00,5915PC-23T-B2O-AOO, AC/DC AC Fans Fan Type Axial Size 172 mm x 150 mm x 38 mm Voltage 230V Current 0.14A PoWer 26W Termination 2 wires Bearing Type Ball Bearing Noise [dB] 50 Max. Static Pressure [Pa] 117.6 Max. Static Pressure [In H2O] 0.472 Max. Air Flow [m3 per min] 4.7 Max. Air Flow [CFM] 166 Mass (g) 800 Life Expectancy L10 25deg.C 100,000 hours Input Power (+10% or -20%) [W] 26 Frequency [Hz] 60

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Part Type Cooling Fan Part Number 5915PC-23W-B30-S01 Brand NMB Length 172 Width 150 height 38 voltage 230V Power 42/40W Bearing Type Ball Bearing requency [Hz] 50 Input Power (+10% or -20%) [W] 35 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 850 Max. Air Flow [CFM] 211.8 Max. Air Flow [m3 per min] 5 Max. Static Pressure [In H2O] 0.628 Max. Static Pressure [Pa] 157 Noise [dB] 52 Fan Speed [RPM] 3200

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer NMB Part number 5915PC-24T-B30-A00 other name 15038PB-B4L-EP-00,P14988,5915PC-24T-B3O-AOO,5915PC24TB30A00 AC/DC AC Fans Fan Type Axial Size 172 mm x 150 mm x 38 mm Voltage 240V Current 0.17A PoWer 34W Termination 2 wires Speed (RPM) 3200 Air Flow 212.0 CFM (6.00 m³/min) Bearing Ball Shape Rectangular Series 5915PC Static Pressure 0.865 in H2O (215.6 Pa) Noise 56 dBA Blade_material Polycarbonate (PC), Fiberglass Reinforce Frame_material Aluminum Frequency [Hz] 50 Input Power (+10% or -20%) [W] 39 Life Expectancy L10 25deg.C 100,000 hours Mass (g) 900 Max. Air Flow [CFM] 189.3 Max. Air Flow [m3 per min] 5.3 Max. Static Pressure [In H2O] 0.51 Max. Static Pressure [Pa] 127.5 Noise [dB] 48

Read more less

Type Description Select All Category Safety Products Machine Safety Interlock Switches Manufacturer SICK, Inc. Series i12S Packaging Bulk Part Status Active Type Non-Locking Circuit 3PST-2NC/1NO Current Rating (Amps) 3A (AC), 2A (DC) Voltage Rating 240VAC, 24VDC Voltage - Supply - Holding Force 2kgf Actuator Type Panel Disconnect Termination Style Screw Terminal Features - Must Operate - Must Release - Conduit Thread Size M16 Operating Temperature -20°C ~ 80°C Ingress Protection IP67 - Dust Tight, Waterproof Approval Agency CCC, CE, cULus

Read more less

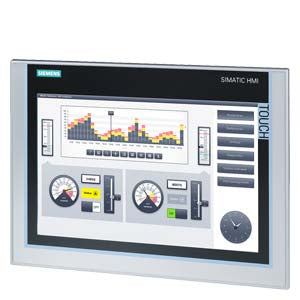

SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 Product lifecycle Phase Out Announce  Product class A: Standard product which is a stock item could be returned within the returns guidelines/period. Packaging dimensions (L x W x H) 50,9 x 36,2 x 12,6 cm Net weight 3,46 Kg Product related Article number 6AV2124-0MC01-0AX0 Life cycle status Phase Out Announce Product Family Comfort Panels standard devices EAN 4025515079002 UPC 040892686050 Commodity Code 85371091 Pricing related Customer Price – List Price – Region Specific Price Group / Headquarter Price Group 239 / 239 Surcharge for raw material Metal Factor – Delivery related Export Control Regulations AL : N / ECCN : 9N9999 Standard delivery time 1 Day/Days Packaging dimensions (L x W x H) 50,9 x 36,2 x 12,6 cm Net weight 3,46 Kg Quantity Unit 1 Piece Packaging Quantity 1 Minimum Order Quantity 1 Dangerous goods No Environment related WEEE (2012/19/EU) Take-Back Obligations Yes Compliance with the substance restrictions according to RoHS directive Since: 31.01.2011 REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0,1 % (w / w) 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-No. 80-05-7 > 0,1 % (w / w) Silicic acid, lead salt CAS-No. 11120-22-2 > 0,1 % (w / w) Lead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w) SCIP Number 43c427dd-eb19-44ab-8e58-208016cd45fc Siemens specific Product Group 3404 Catalog ID ST80.1N Group Code R141 Country of origin Germany Product class A: Standard product which is a stock item could be returned within the returns guidelines/period. Classification eClass Version : 14, Classification : 27-33-02-01 Version : 12, Classification : 27-33-02-01 Version : 9.1, Classification : 27-33-02-01 Version : 9, Classification : 27-33-02-01 Version : 8, Classification : 27-24-23-02 Version : 7.1, Classification : 27-24-23-02 Version : 6, Classification : 27-24-23-02 ETIM Version : 10, Classification : EC001412 Version : 9, Classification : EC001412 Version : 8, Classification : EC001412 Version : 7, Classification : EC001412 IDEA Version : 4, Classification : 6607 UNSPSC Version : 15, Classification : 43-21-15-06

Read more less
