Panasonic manufactures a range of inductive proximity sensors designed for industrial applications where non-contact detection of metal objects is required. These sensors operate based on the principle of electromagnetic induction and are used for various automation and control tasks. Here are some general features and specifications typically associated with Panasonic's inductive proximity sensors: Sensing Distance: Panasonic's inductive proximity sensors come in different models with varying sensing distances, typically ranging from a few millimeters to several centimeters. The exact sensing distance depends on the specific model and application requirements. Operating Principle: These sensors emit a high-frequency electromagnetic field from a coil. When a metallic object enters the sensing range, it disturbs this field, causing a change in the sensor's output signal. This change is then processed to detect the presence or absence of the metal object. Output Types: Panasonic's sensors are available with different output configurations, including NPN or PNP transistor outputs, which can interface with a wide range of control systems, PLCs (Programmable Logic Controllers), and industrial devices. Compact and Durable Design: The sensors are designed to be compact and robust, suitable for installation in industrial environments. They are often housed in rugged enclosures to protect against dust, moisture, and mechanical stress. Applications: These sensors find applications in various industries such as automotive, manufacturing, packaging, and robotics. Common uses include: Presence detection of metallic components on assembly lines. Position sensing for automated machinery. Object counting and sorting in material handling systems. Machine safety applications to detect the presence of metal in hazardous zones. Key Features: High reliability and accuracy in metal detection. Fast response time for real-time control applications. Resistance to environmental factors like oil, water, and vibration. Long operational lifespan with minimal maintenance requirements. When selecting a Panasonic inductive proximity sensor, it's important to consider factors such as the required sensing distance, output type, environmental conditions, and specific application needs. This ensures optimal performance and reliability in your industrial automation setup. If you have a specific model or sensing distance range in mind, feel free to provide more details for a tailored recommendation or further information.

Read more less

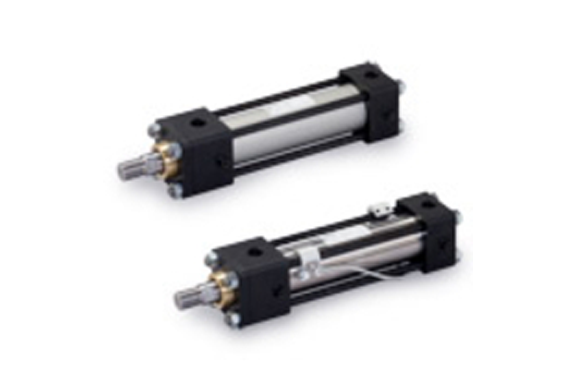

Feature: Compact type 21 MPa hydraulic cylinders Now even more compact. Total cylinder length: Shortened by up to 23mm(compared to the 210C-1) Bore size: φ40 to φ250 Improved cushion performance Increased absorption energy Reduced shocks when stopping Cushion adjustment possible in all sizes Improved check valve performance Specification:

Read more less

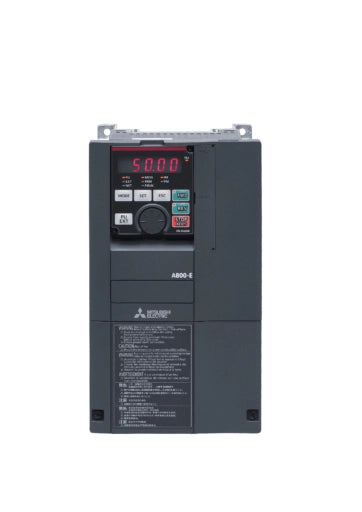

FA-Inverter: Inverter Series FR-A SERIES Type FR-A800-E INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 323 Maximum Rated Voltage (V) 500 Max. Permissible Voltage (V) 550 Current Type AC Phases 3 Rated Output Current SLD (A) 8,3 Rated Output Current LD (A) 7,6 Rated Output Current ND (A) 6 Rated Output Current HD (A) 4 Rated Motor Capacity SLD (kW) 3,7 Rated Motor Capacity LD (kW) 3,7 Rated Motor Capacity ND (kW) 2,2 Rated Motor Capacity HD (kW) 1,5 Frequency Range (Hz) 0,2–590 Control Method VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL Motor Type INDUCTION MOTOR, PM MOTOR Brake Chopper ED (%) 100 Integrated EMC Filter YES Safe Torque Off (STO) YES Regenerative (4Q) NO Integrated DC Choke NO Display FR-DU08 Display Type 5 DIGITS LED (12 SEGMENT) PLC Function YES Program Memory 6K Program Memory Unit STEPS Integrated Digital Inputs 12 Digital Outputs (Transistor) 5 Digital Outputs (Relay) 2 Integrated Analogue Inputs 3 Integrated Analogue Outputs 2 IO Type of Terminal Block SPRING CLAMP Expandable YES RS-485 OPTIONAL USB 1+1 MINI Ethernet Port 1 Built-In Network CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS Leakage Current (mA) 35(DELTA) / 2(STAR) Power Loss SLD (W) 130 Power Loss LD (W) 120 Power Loss ND (W) 100 Power Loss HD (W) 75 Standby Power Consumption (W) 19 Protection Class IP20 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK UKCA COMPLIANT Product Dimensions & Weight Width (mm) 150 Height (mm) 260 Depth (mm) 140 Weight (kg) 3,4 Product Packaging Cardboard (g) 388 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 6,768 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

Specifications General Brand Ovicart Model Number 15A Fuse 240V Fast Glow Size: 5x20mm (Pack of 5) Model Name 15A Glass Fast Fuse Current Rating Range 15 A Body Material Glass, Metal Operating Voltage 250 V Fuse Type Fast Acting Suitable For UPS, Audio system, Set top box, Power Supply, Inverter DIY Key Features Fast Blow Fuse Dimensions Fuse Length 2 cm

Read more less

Coil ratings 24 VDC 25.6 mA Operating indicator LED Coil surge killer Diode Contact form SPDT Contact method Single Contact material Ag alloy Contact rated load 250 VAC 10 A (Resistive load)250 VAC 7.5 A (Inductive load (cosφ = 0.4))30 VDC 10 A (Resistive load)30 VDC 5 A (Inductive load (L/R = 7 ms)) Terminal structure Plug-in terminal

Read more less

Fluid Type Solvent, Water Line Size 20 mm Water Type Hot Water End Connection Flanged Type AMR Water Meter Size 2 Inch Material Stainless Steel Usage/Application Industrial Display Digital Brand PETROTECH Model Name/Number Reva-200 Warranty 1 Year Explosion Proof Degrade IP68 Flow Range 1-10 m3/hr Operating Pressure 25.4 kg/cm2 Operating Temperature 20- 80 Degree C Accuracy 0.25 % Output 4-20mA Country of Origin Made in India Availability In Stock

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors - Industrial RoHS:   Technology: Inductive Measuring Range - Max: 4 mm Output Type: PNP Mounting Style: Panel Mount Connection Method: Connector Connector Type: M12 Supply Voltage - Min: 10 VDC Supply Voltage - Max: 30 VDC Series: E2B Brand: Omron Automation and Safety Housing Material: Brass IP Rating: IP67 Maximum Frequency: 1 kHz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Product Type: Proximity Sensor 1 Subcategory: Sensors Part # Aliases: E2BM12KS04M1B2 Unit Weight: 20 g

Read more less

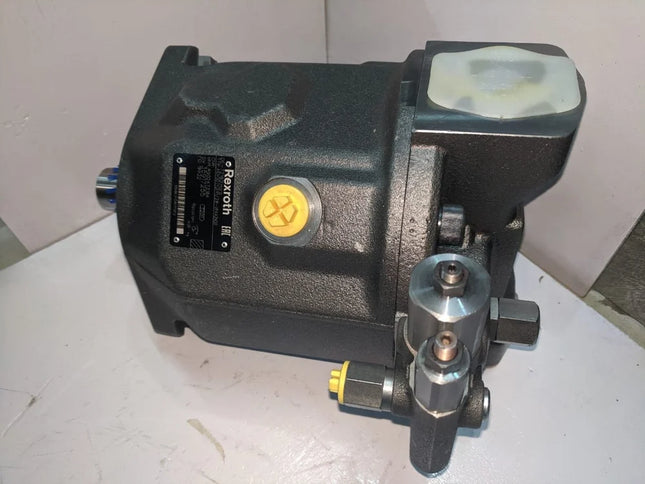

Brand Rexroth Bosch Usage/Application Industrial Power Source AC Powered Max Flow Rate 150 LPM Material Cast Iron Model Name/Number A10VSO 71 DR / A10VSO 71 DFR/ A10VSO 71 DFR1 Frequency 50 Hz Voltage 240 V Color Black Warranty Period 6-12 Months Availability In Stock Hydraulic fluid Before starting project planning, please refer to our data sheets RE 90220 (mineral oil) and RE 90221 (environmentally acceptable hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and application conditions.   When using environmentally acceptable hydraulic fluids, the limitations regarding technical data and seals must be observed. Please contact us. When ordering, indicate the hydraulic fluid that is to be used.

Read more less

Sick GTB6-N1211 PHOTOELECTRIC SENSOR   Detailed technical data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range max. 5 mm ... 250 mm 1) Sensing range 35 mm ... 140 mm Polarisation filters No Emitted beam Light source PinPoint LED 2) Type of light Visible red light Light spot size (distance) Ø 6 mm (100 mm) Key LED figures Wave length 650 nm Adjustment Mechanical spindle, 5 turn
