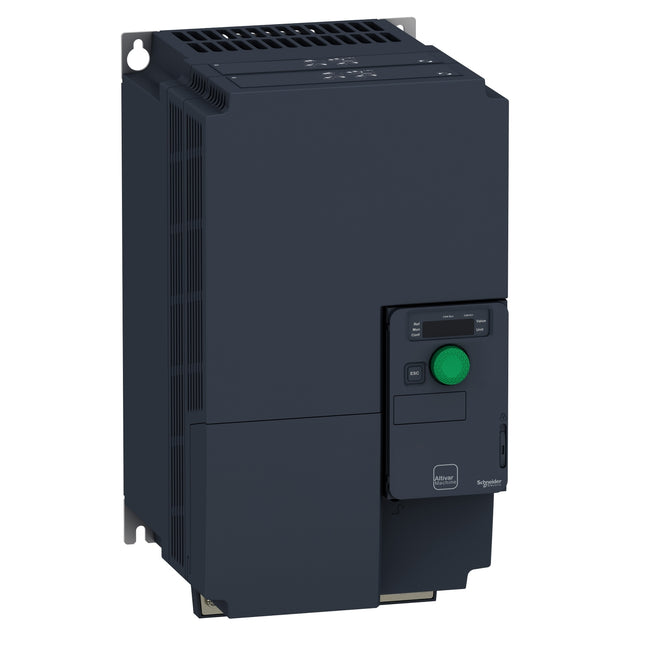

Main Range of product Altivar Machine ATV320 Product or component type Variable speed drive Product specific application Complex machines Variant Standard version Format of the drive Compact Mounting mode Wall mount Communication port protocol Modbus serialCANopen Option card Communication module, CANopenCommunication module, EtherCATCommunication module, Profibus DP V1Communication module, PROFINETCommunication module, Ethernet PowerlinkCommunication module, EtherNet/IPCommunication module, DeviceNet [Us] rated supply voltage 380...500 V - 15...10 % nominal output current 27.7 A Motor power kW 11 kW for heavy duty Motor power hp 15 hp EMC filter Integrated IP degree of protection IP20 Sort by: Select Installation, Commissioning DC Bus Connector kitVW3M2207 Modbus splitter block - 10 RJ45 and 1 screw terminal blockLU9GC3 Description Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames It works at a rated power up to 11kW / 15hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 6.8kg and its dimensions are 180mm wide, 330mm high, 192mm deep. Altivar Machine ATV320 meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).

Read more less

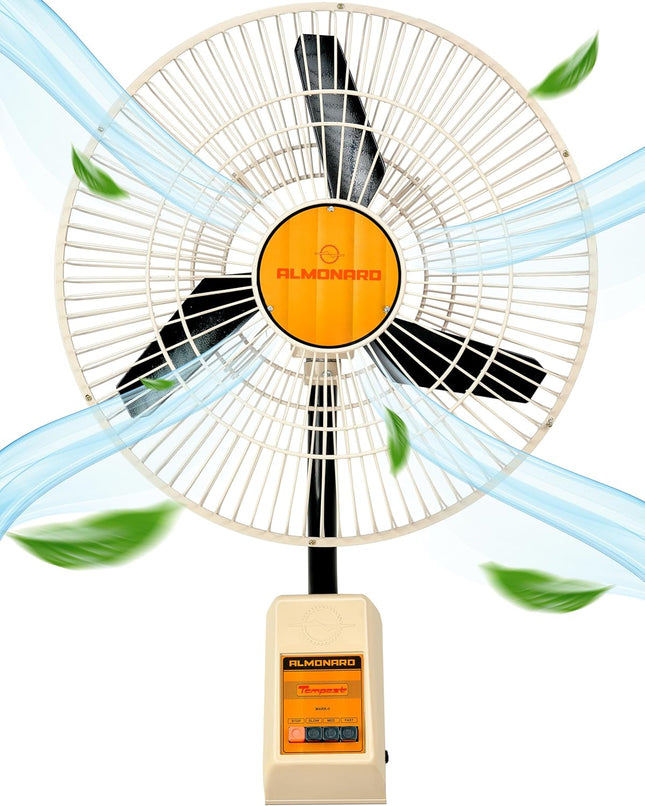

Brand Almonard Colour Black Electric fan design Window Fan Power Source Corded Electric Style Wall-mounted Product Dimensions 7.1D x 7.1W x 11.4H Centimeters Room Type Bathroom, Kitchen, Living Room Special Feature Oscillating Mounting Type Wall Mount Controller Type Button Control See less About this item 3 Speed Settings: With 3 speed settings and easy-push buttons, our wall fan for kitchen while cooking lets you be in control. Our wall mounted fans are fitted with a motor capacitor with copper winding and 18” aerofoil blades, spinning at 1400 RPM for a refreshing breeze. Wide Angle Oscillation: Designed with a 90° widespread oscillation, our wall mount fans for home ensures even and consistent airflow in your space. Our high speed wall mount fan is perfect for warehouses, factories, workshops, garages, and offices. Adjustable Head: Customize your cooling experience with our wall mounted fan for kitchen and home. Simply adjust the Almonard fan’s angle from 22° to 45° for precision cooling. Robust and Durable: Built for long-lasting performance, our wall fan high speed for home has a robust full powder-coated body and blades for longevity. Pioneers in Air Technology: As market leaders in the fan industry for over five decades, Almonard offers a diverse range of products, including wall, pedestal, table, ceiling, exhaust, ventilation, and in/out fans.

Read more less

Type Grooved Type (T-shaped) (Slot center 7 mm) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON/Light-ON (selectable) Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm max. Light source （Peak wavelength） Infrared LED (940 nm) Indicator Light indicator (red) Power supply voltage 5 to 24 VDC ±10%ripple (p-p) 10 % max. Current consumption 12 mA (L terminal open) Control output Output type NPN open collector output Load power supply voltage 5 to 24 VDC Load curren 100 mA max. Residual voltage at 100 mA load current: 0.8 V max.at 40 mA load current: 0.4 V max. Protection circuits Output short-cut protection Response frequency elements 1 kHz min.Average value: 3 kHz Illumination on the surface receiver Fluorescent light: 1000 lx max. Ambient temperature Operating: -25 to 55 ℃ (with no freezing or condensation)Storage: -30 to 80 ℃ (with no freezing or condensation) Ambient humidity Operating: 5 to 85 % (with no condensation)Storage: 5 to 95 % (with no condensation) Vibration resistance Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IP50 Connection method Connector type (Direct soldering possible) Weight Package: Approx. 2.4 g Material Case: Polybutylene terephthalate (PBT)Emitter/Receiver Cover: Polycarbonate (PC)

Read more less

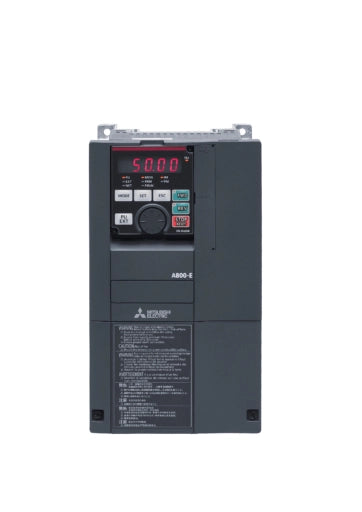

FA-Inverter: Inverter Series FR-A SERIES Type FR-A800-E INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 323 Maximum Rated Voltage (V) 500 Max. Permissible Voltage (V) 550 Current Type AC Phases 3 Rated Output Current SLD (A) 8,3 Rated Output Current LD (A) 7,6 Rated Output Current ND (A) 6 Rated Output Current HD (A) 4 Rated Motor Capacity SLD (kW) 3,7 Rated Motor Capacity LD (kW) 3,7 Rated Motor Capacity ND (kW) 2,2 Rated Motor Capacity HD (kW) 1,5 Frequency Range (Hz) 0,2–590 Control Method VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL Motor Type INDUCTION MOTOR, PM MOTOR Brake Chopper ED (%) 100 Integrated EMC Filter YES Safe Torque Off (STO) YES Regenerative (4Q) NO Integrated DC Choke NO Display FR-DU08 Display Type 5 DIGITS LED (12 SEGMENT) PLC Function YES Program Memory 6K Program Memory Unit STEPS Integrated Digital Inputs 12 Digital Outputs (Transistor) 5 Digital Outputs (Relay) 2 Integrated Analogue Inputs 3 Integrated Analogue Outputs 2 IO Type of Terminal Block SPRING CLAMP Expandable YES RS-485 OPTIONAL USB 1+1 MINI Ethernet Port 1 Built-In Network CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS Leakage Current (mA) 35(DELTA) / 2(STAR) Power Loss SLD (W) 130 Power Loss LD (W) 120 Power Loss ND (W) 100 Power Loss HD (W) 75 Standby Power Consumption (W) 19 Protection Class IP20 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK UKCA COMPLIANT Product Dimensions & Weight Width (mm) 150 Height (mm) 260 Depth (mm) 140 Weight (kg) 3,4 Product Packaging Cardboard (g) 388 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 6,768 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

Tohnichi's interchangeable head wrenches have specific diameter round ends that fit into corresponding head base openings. Head and wrench model names include the diameter sizes so that heads can be matched to wrenches that accept those heads. For example: SH15Dx17 (15mm nominal diameter base opening ) will fit on CL100NX15D (15mm nominal diameter end) With the large selection of head styles available, wrenches such as CL (for tightening) and CEM3 (for measuring) can use the same head that has the same root diameter--making interchangeable head wrenches an economical and flexible tool choice.

Read more less

Type Description Select All Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub, D-Shaped Connector Adapters Manufacturer Phoenix Contact Series SUBCON Packaging Bulk Part Status Active Connector Style Connector Saver Convert To (Adapter End) D-Sub, 9 Pin Female Convert From (Adapter End) D-Sub, 9 Pin Male Number of Rows 2 Mounting Type Free Hanging (In-Line) Features Terminal Block Shielding Shielded Shell Material, Finish - Contact Finish - Contact Finish Thickness - Ingress Protection - Material Flammability Rating - Includes - Housing Color Silver Operating Temperature -20°C ~ 75°C

Read more less

Type Description Select All Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub, D-Shaped Connector Adapters Manufacturer Phoenix Contact Series SUBCON Packaging Bulk Part Status Active Connector Style Connector Saver Convert To (Adapter End) D-Sub, 9 Pin Female Convert From (Adapter End) D-Sub, 9 Pin Male Number of Rows 2 Mounting Type Free Hanging (In-Line) Features Terminal Block Shielding Shielded Shell Material, Finish - Contact Finish - Contact Finish Thickness - Ingress Protection - Material Flammability Rating - Includes - Housing Color Silver Operating Temperature -20°C ~ 75°C

Read more less

ey Benefits at a Glance Strong metallic housing in cylindrical shape M18 x 1 Not sensitive to ambient light Degree of protection IP67 Very high detection range

Read more less

Product description: SIMATIC DP, INTERFACE MODULE IM151-1 STANDARD FOR ET200S; INCL. TERMINATING MODULE DATA VOLUME 244BYTE FOR EACH INPUT AND OUTPUT; MAX. OF 63 PERIPHERIEMODULES PROFIBUS DP V0 AND V1 UP TO 2M WIDTH CONNECTABLE; BUS INTERFACING VIA 9-WAY SUB-D

Read more less

PLC Accessories accessory/separate part type Connector Range of product Inverter Cables

Read more less

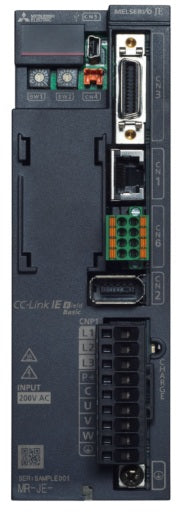

FA-Servo-Motion: Servo Amplifier Series MELSERVO-JE Type MR-JE Command Interface CC-LINK IE FIELD NETWORK Rated Capacity (kW) 0,75 Number of Axes 1 Power Supply (VAC) 1PHASE 230V, 3PHASE 230V Dynamic Break BUILT-IN Conformity CE COMPLIANT UL/cUL COMPLIANT EAC COMPLIANT UKCA COMPLIANT Product Dimensions & Weight Width (mm) 70 Height (mm) 168 Depth (mm) 185 Weight (kg) 1,5 Product Packaging Cardboard (g) 280 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 10 Wood (g) 0 Glass (g) 0 Others (g) 0
