Configured Specifications Ampere frame AF 30AF Rated block capacity AC 100 V 7.5 Rated block capacity AC 200 V 7.5 Rated block capacity AC 400 V 5 Number of Poles 2 Rated Operating Voltage AC 100–240 Rated Current 5 rate sensitivity current 30 Mounting Method DIN/Screw retention Representative Standard PSE Dimension height 100 Dimension width 36 Dimension depth 90 Rated block capacity, voltages except VAC 100/200/400, VDC 250 Available Connection Method Surface form Type - Specifications - - - Product Description WS-V series NV-S type earth leakage circuit breaker (general-purpose product), F style.[Features]· Has a small size that is the smallest class in the industry, while maintaining conventional breaking performance.· Standard support for mounting IEC 35 mm rail.· Standard compatibility with protection grade IP20 from all directions of terminal area.· Can mount operation handle.· Voltage tripping device (SHT) can be mounted on the earth leakage circuit breaker.[Applications]· Earth leakage circuit breaker, F style.

Read more less

SVA-2100 SureServo servo drive, 1 kW, 230 VAC, 1 and 3-phase, (1) RS-232/RS-485/RS-422 (IEEE1394) port(s), Modbus RTU and Modbus ASCII. For use with 750W and 1 kW systems.

Read more less

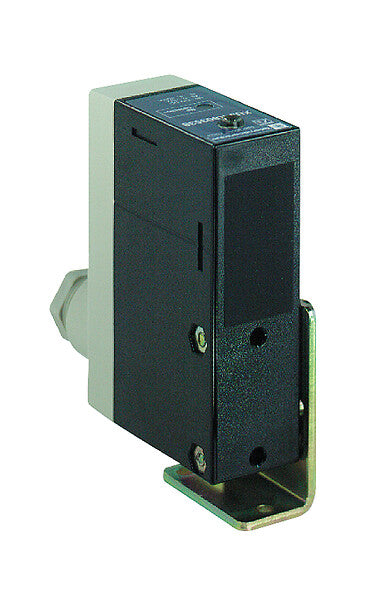

Range of product Telemecanique Photoelectric sensors XU Series name Application material handling Electronic sensor type Photo-electric sensor Sensor name XUJ Sensor design Compact Detection system Diffuse Material Plastic Type of output signal Analogue Supply circuit type DC Wiring technique 3-wire [Sn] nominal sensing distance 0.2-0.8 m diffuse Discrete output type PNP Analogue output range - Electrical connection Screw-clamp terminals, 1 x 2.5...2 x 1.5 mm² Product specific application Not applicable Emission Infrared diffuse

Read more less

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.  Brand Weidmuller Model DRI424024LTD MPN Does Not Apply UPC Does not apply Country of Origin China Category breadcrumb

Read more less

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yesv

Read more less

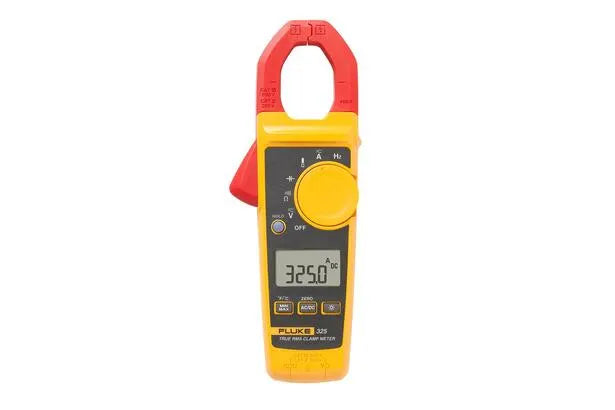

Specifications: Fluke 325 True RMS Clamp Meter Specifications AC current Range 40.00 A / 400.0 A Accuracy 2% ± 5 digits (45 Hz to 65 Hz)2.5% ± 5 digits (65 Hz to 400 Hz) DC current Range 40.00 A / 400.0 A Accuracy 2% ± 5 digits AC voltage Range 600.0 V Accuracy 1.5% ± 5 digits DC voltage Range 600.0 V Accuracy 1.0% ± 5 digits Resistance Range 400.0 Ω / 4000 Ω / 40.00 kΩ Accuracy 1.0% ± 5 digits Continuity ≤ 30 Ω Capacitance 0 to 100.0 μF / 100μF to 1000 μF Frequency 5.0 Hz to 500.0 Hz AC response True-RMS Backlight Yes Data hold Yes Contact temperature -10.0°C to 400.0°C (14.0°F to 752.0°F) Min/Max Yes Size H x W x D (mm) 207 x 75 x 34 Max wire diameter 30 mm (600 MCM) Weight 283 g Category rating CAT III 600 VCAT IV 300 V Warranty Two-year

Read more less

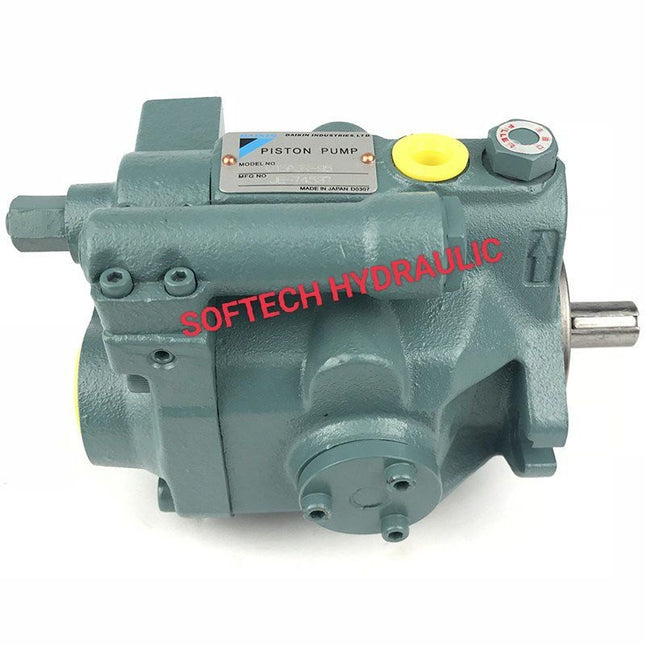

Model Name/Number V38 Brand Daikin Power Hydraulic Usage/Application Industrial Material V38 Installation/After Sales Service Provided Color Green Size 38 Weight 35kg approx Warranty Period 0-6 Months Valve Operation V38 I Deal In New and Second Hand Country of Origin Made in India Availability In Stock

Read more less

Product Specifications More Information Brand Schneider Electric Model TeSys - Schneider Electric Reference No LC1D12M7 Manufacturer Details Schneider Electric India (P) Ltd. Notus IT Park, 10th Floor, Block-D Sarabhai Campus, Vadiwadi, Vadodara, Gujarat - 390017, India

Read more less

Specifications This Acti9 DPN N Vigi product is an earth leakage circuit breaker. It is a 1P+N circuit breaker with 1 protected pole and 32A In rated current at 30°C, and a C tripping curve. The earth-leakage protection class is type AC with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short-circuit breaking capacity is up to 6000A at 230VAC conforming to EN 61009 standard. This product protects against short-circuit, cable overload, electrical shock by indirect contact and fire hazards. It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. This product complies with EN/IEC 61009-1 and EN/IEC 61009-2-1 standards. The electrical endurance goes up to 10000 cycles conforming to IEC 61009 standard and the mechanical endurance goes up to 20000 cycles. This circuit breaker has a position contact indicator and also has an ON/OFF indication on the toggle at front of the device for local signaling. It has a tunnel type terminals connection at top or bottom. The connection allows rigid copper cables with a cable cross-section from 1mm² to 16mm². The connection allows flexible or with ferrule copper cables with a cable cross-section from 1mm² to 10mm². The Ue rated operational voltage is up to 230VAC. The Ui rated insulation voltage is up to 400VAC. The Uimp rated impulse withstand voltage of 4kV conforming to EN 61009 standard. It can be mounted on a DIN rail for modular installation. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 81mm x (D) 77.5mm. The product colour is white. The product weight is 125g. The pollution degree is 3. The relative humidity is 95% at 55°C. The level of tropicalisation is 2 conforming to EN 61009 standard. The overvoltage category is 4. The wire stripping length is 15mm (top or bottom). The tightening torque of the connection is 2N.m (top or bottom) for the PZ2 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to +60°C. The storage temperature is from -30°C to +70°C. Specifications

Read more less

specifications description Type of Product Integrated RCBO Module - Dpn N Vigi Model No A9N19667 Sensitivity 30 mA Current Rating 25 Amp Modular Width (18 mm/Module) 2 No. of Pole 2 Pole Country of Origin India Name of Manufacturer/Packer/Importer Schneider Electric
