Usage/Application Use as a Earthing Wire Packaging Type Roll Crossectional Size 2.5 Sqmm Insulating Material PVC Color Green Fire Resistant Yes Length 90 m Availability In Stock

Read more less

FA-Inverter: Inverter Series FR-A SERIES Type FR-A800-E INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 323 Maximum Rated Voltage (V) 500 Max. Permissible Voltage (V) 550 Current Type AC Phases 3 Rated Output Current SLD (A) 93 Rated Output Current LD (A) 85 Rated Output Current ND (A) 71 Rated Output Current HD (A) 57 Rated Motor Capacity SLD (kW) 45 Rated Motor Capacity LD (kW) 45 Rated Motor Capacity ND (kW) 37 Rated Motor Capacity HD (kW) 30 Frequency Range (Hz) 0,2–590 Control Method VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL Motor Type INDUCTION MOTOR, PM MOTOR Integrated EMC Filter YES Safe Torque Off (STO) YES Regenerative (4Q) NO Integrated DC Choke NO Display FR-DU08 Display Type 5 DIGITS LED (12 SEGMENT) PLC Function YES Program Memory 6K Program Memory Unit STEPS Integrated Digital Inputs 12 Digital Outputs (Transistor) 5 Digital Outputs (Relay) 2 Integrated Analogue Inputs 3 Integrated Analogue Outputs 2 IO Type of Terminal Block SPRING CLAMP Expandable YES RS-485 OPTIONAL USB 1+1 MINI Ethernet Port 1 Built-In Network CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP, SLMP, iQSS Leakage Current (mA) 35(DELTA) / 2(STAR) Power Loss SLD (W) 1110 Power Loss LD (W) 1020 Power Loss ND (W) 840 Power Loss HD (W) 700 Standby Power Consumption (W) 28 Protection Class IP00 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK UKCA COMPLIANT Product Dimensions & Weight Width (mm) 435 Height (mm) 550 Depth (mm) 250 Weight (kg) 41 Product Packaging Cardboard (g) 4908,8 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 155 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA UKCA COMPLIANT Product Dimensions & Weight Width (mm) 175 Height (mm) 90 Depth (mm) 86 Weight (kg) 0,85 Product Packaging Cardboard (g) 115 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 0 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

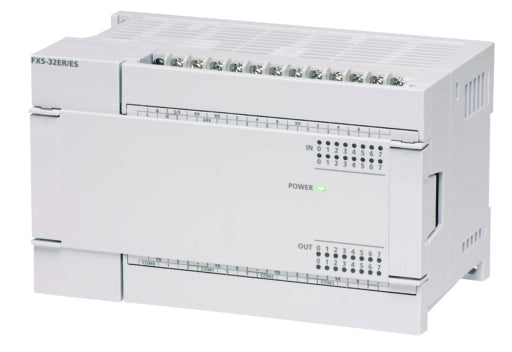

FA-COM PLC: Digital I/O Module Series MELSEC IQ-F SERIES Type POWERED I/O MODULE (AC) Power Supply (V) 100-240 Current Type AC Occupied I/O Points on PLC 32 Integrated Digital Inputs 16 Integrated Digital Outputs 16 Output Type TRANSISTOR Output Logic SOURCE Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA UKCA COMPLIANT Product Dimensions & Weight Width (mm) 150 Height (mm) 90 Depth (mm) 83 Weight (kg) 0,65 Product Packaging Cardboard (g) 117 Other paper (g) 0 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 0 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

Shape Cylinder type Sensing method Diffuse-reflective Sensing distance White paper 300 x 300 mm: 300 mm Spot size 40 x 50 mm (sensing distance: 300 mm) Differential distance 20% max. Light source Red LED (624 nm) Power supply voltage 10 to 30 VDC±10% ripple (p-p) 10% included Current consumption 25 mA max. Control output PNP open collector30 VDC max.100 mA max.Residual voltage: 3 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 0.5 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -40 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67DIN40050-9: IP69K Connection method M12 connector models Indicator Operation indicator (orange), Stability indicator (green) Weight Package: Approx. 20 gMain Unit: Approx. 10 g Accessories Instruction sheet, M18 nuts Material Case: ABSLens: Methacrylate resin (PMMA)Display: Methacrylate resin (PMMA)Adjustment: POMNut: POM

Read more less

Description It's a 24V DC Transparent 5-Pin general-purpose Relay. Mostly, relays are used to perform switching operation  without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings. Applications:  When galvanic isolation is desired, relays are employed whenever it is necessary to control a high-power or high-voltage circuit with a low-power circuit. Lighting control systems. Industrial process controllers. Traffic control. Motor drives control. Protection systems of electrical power system. Coil Voltage: 24V DC  Specifications Colour Transparent Model No G2R-1 Voltage rating 24V DC Type Relay Current 10A Mounting Style Through Hole No of Pins 5 Brand Omron

Read more less

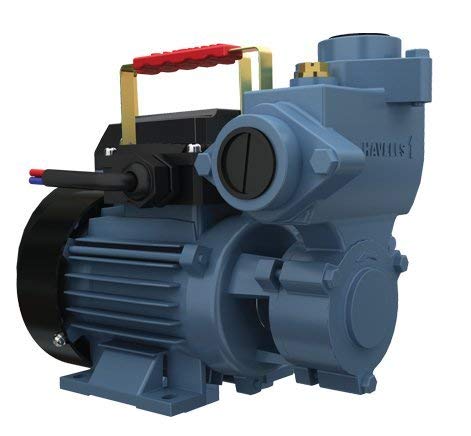

Brand Havells Colour Grey Material Cast Iron Style Centrifugal Power Source Corded Electric Item Weight 7500 Grams Manufacturer XPERT DESIGN, XPERT DESIGN About this item Energy Efficient: Motor Motors are with F Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures. Pump Performance: Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range. Pump Casting: High Grade Pump Castings (FG-200 grade) ensures very slow rusting of pump. Pump life is increases due to less rusting and wear and tear. Most of the pumps available in market have low grade castings, which causes rusting of pump parts. Home Service: Home service of the pumps assures trouble free service. Havells pumps are available with 2 Year Warranty. IN BOX: 1 pump set, 1 power cord of 1 metre length, 1 instruction manual, 2 year warranty card

Read more less

Product Attributes Type Description Select All Category Industrial Automation and Controls Cable and Hose Carriers, Drag Chains Manufacturer Igus Series 2500 Packaging Box Part Status Active Frame Type Open Loading Side Inside and Outside Bend Cavity Height 0.980" (24.89mm) Cavity Width 3.030" (76.96mm) Minimum Bend Radius 4.920" (124.97mm) Outer Height 1.380" (35.05mm) Outer Width 3.660" (92.96mm) Length 39.370" (1000.00mm) Link Pitch 1.810" (45.97mm) Features - Material Igumid G Operating Temperature -40°C ~ 120°C Weight -

Read more less

Product Attributes Type Description Select All Category Industrial Automation and Controls Cable and Hose Carriers, Drag Chains Manufacturer Igus Series 2500 Packaging Box Part Status Active Frame Type Open Loading Side Inside and Outside Bend Cavity Height 0.980" (24.89mm) Cavity Width 3.030" (76.96mm) Minimum Bend Radius 4.920" (124.97mm) Outer Height 1.380" (35.05mm) Outer Width 3.660" (92.96mm) Length 39.370" (1000.00mm) Link Pitch 1.810" (45.97mm) Features - Material Igumid G Operating Temperature -40°C ~ 120°C Weight -

Read more less

The MHY2 is a compact 180-degree angular gripper. Its size and mass allow for small, lightweight tooling, while delivering large gripping forces via piston/cam design. The MHY2 gives you maximum installation flexibility with mounting options on 4 sides and recessed auto switch grooves on either side of the gripper. Precision reference points on body and fingers are standard.

Read more less

Specifications Product related Article number 6EP1931-2FC42 Life cycle status Phase Out Announce Product Family SITOP DC UPS EAN 4025515151425 UPC 662643298468 Commodity Code 85044060 Pricing related Customer Price – List Price – Region Specific Price Group / Headquarter Price Group 585 / 585 Surcharge for raw material Metal Factor – Delivery related Export Control Regulations AL : N / ECCN : N Standard delivery time 1 Day/Days Packaging dimensions (L x W x H) 14,00 x 16,00 x 11,00 cm Net weight 1,00 Kg Quantity Unit 1 Piece Packaging Quantity 1 Dangerous goods No Environment related WEEE (2012/19/EU) Take-Back Obligations Yes Compliance with the substance restrictions according to RoHS directive Since: 01.08.2006 REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0,1 % (w / w) Lead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w) 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 > 0,1 % (w / w) Silicic acid, lead salt CAS-No. 11120-22-2 > 0,1 % (w / w) is(α,α-dimethylbenzyl) peroxide CAS-No. 80-43-3 > 0,1 % (w / w) SCIP Number 9a3a596e-14e8-44ed-b2e8-d2b4dfac7cb7 Sustainability Siemens specific Product Group 4215 Catalog ID KT10-PD Group Code R315 Country of origin Romania Product class A: Standard product which is a stock item could be returned within the returns guidelines/period. Classification eClass Version : 14, Classification : 27-04-07-05 Version : 12, Classification : 27-04-07-05 Version : 9.1, Classification : 27-04-07-05 Version : 9, Classification : 27-04-07-05 Version : 8, Classification : 27-04-06-90 Version : 7.1, Classification : 27-04-06-90 Version : 6, Classification : 27-04-06-90 ETIM Version : 10, Classification : EC000382 Version : 9, Classification : EC000382 Version : 8, Classification : EC000382 Version : 7, Classification : EC000382 IDEA Version : 4, Classification : 4149 UNSPSC Version : 15, Classification : 39-12-10-11

Read more less

Product Dimensions 40L x 20W x 40H Millimeters Brand ebm-papst Power Connector Type 2-Pin Voltage 24 Volts Wattage 1 Watts
