Specifications Primary brand Mitsubishi Electric Main function AC servo motor Product series / family name MELSERVO J4 series Sub-range name HG-SR series Functions AC brushless rotary servo motor Design straight shaftbuilt-in absolute feedback encod. (22-bit)oil sealmedium inertia / medium power capacitynatural cooling Supply voltage (AC) 200Vac class Rated current 14A Rated active power (kW) 3500W / 3.5kW Rotational speed 2000rpm3000rpm (maximum) Torque 16.7Nm nominal Maximum torque 50.1Nm Moment of inertia 0.00786kg.m2 (78.6kg.cm2) Connection type 2 x MS-type connectors Mounting mode 176x176mm flange mounting Resolution 22-bit (equivalent to 4194304ppr) feedback Degree of protection IP67 Dimensions H228.9mm x W176mm x D241.5mm Net Height (mm) 228.9 mm Net Width (mm) 176 mm Net Depth (mm) 241.5 mm Ambient air temperature for operation 0...+40 °C Ambient air temperature for storage -15°C...+70 °C Maximum radial load 2058 N Maximum axial load 980 N Maximum current 45 A Order code / Manufacturer SKU HG-SR352J Manufacturer product status Commercialized Equivalent to HGSR352J Compliant with standard(s) CE markingTUV RheinlandcULusULKCEN61800-3EN60034-1EN62061SILCL3EN50581UL1004-1UL1004-6CSAKCEAC Recommended accessories for standard 1-axis use amplifiers- MR-J4-350GF- MR-J4-350GF-RJ- MR-J4-350B- MR-J4-350B-RJ- MR-J4-350A- MR-J4-350A-RJUse amplifier <=> motor cables as follows- Encoder cable for HG-SR and HG-SR (direct connection type)-- Standard bending life--> 2m (MR-J3ENSCBL2M-L)- Encoder cable for HG-SR and HG-SR (direct connection type)-- Standard bending life--> 2m (MR-J3ENSCBL2M-L)--> 5m (MR-J3ENSCBL5M-L)--> 10m (MR-J3ENSCBL10M-L)--> 20m (MR-J3ENSCBL20M-L)--> 30m (MR-J3ENSCBL30M-L)-- Long bending life--> 2m (MR-J3ENSCBL2M-H)--> 5m (MR-J3ENSCBL5M-H)--> 10m (MR-J3ENSCBL10M-H)--> 15m (MR-J3ENSCBL15M-H)--> 17m (MR-J3ENSCBL17M-H)--> 20m (MR-J3ENSCBL20M-H)--> 30m (MR-J3ENSCBL30M-H)--> 40m (MR-J3ENSCBL40M-H)--> 50m (MR-J3ENSCBL50M-H or MR-J3ENS4CBL50M-H)--> 60m (MR-J3ENSCBL60M-H or MR-J3ENS4CBL60M-H)--> 80m (MR-J3ENS4CBL80M-H)--> 90m (MR-J3ENS4CBL90M-H)--> 100m (MR-J3ENS4CBL100M-H)- Power supply cable cables (straight type connector)-- Standard bending life--> 2m (MR-J3P4-2M)--> 5m (MR-J3P4-5M)--> 10m (MR-J3P4-10M)--> 15m (MR-J3P4-15M)--> 20m (MR-J3P4-20M)--> 25m (MR-J3P4-25M)--> 30m (MR-J3P4-30M)--> 100m (MR-J3P4-100M)- Power supply cable; Shielded type cables (straight type connector)-- Long bending life--> 2m (MR-J3PWS4-2M)--> 5m (MR-J3PWS4-5M)--> 10m (MR-J3PWS4-10M)--> 15m (MR-J3PWS4-15M)--> 20m (MR-J3PWS4-20M)--> 25m (MR-J3PWS4-25M)--> 30m (MR-J3PWS4-30M)--> 40m (MR-J3PWS4-40M)--> 50m (MR-J3PWS4-50M)- Power supply cable for HG-SR/HG-JR/HG-UR series to MR-J4W2/MR-J4W3 series amplifier-- Standard bending life--> 2m (SC-EPWS2CBL2M-L)--> 5m (SC-EPWS2CBL5M-L)--> 10m (SC-EPWS2CBL10M-L)--> 20m (SC-EPWS2CBL20M-L)--> 30m (SC-EPWS2CBL30M-L)-- Long bending life--> 2m (SC-EPWS2CBL2M-H)--> 5m (SC-EPWS2CBL5M-H)--> 10m (SC-EPWS2CBL10M-H)--> 20m (SC-EPWS2CBL20M-H)--> 30m (SC-EPWS2CBL30M-H)

Read more less

Configured Specifications Dimension width W 94 Dimension vertical H 50 Dimension depth D 23.5 Material Resin Protection function (environmentally resistant) IP65 Intermediate plate Without Circuit Board Usage location Indoor Terminal block capacity 15 Number of terminal block electrodes 6 Specifications 4-point screw retention type Recommended cable outer diameter 4.0 to 3.5, 6.0 to 9.0 - -

Read more less

Sensing Distance 10 mm Type Proximity Sensor Usage For Industrial Body Material PBT plastic Brand PANASONIC Sensor Type INDUCTIVE PROXINITY SENSOR Model Name/Number GL-118H Product Type COMPACT & LOW PRICE INDUCTIVE PROXINITY SENSOR Response frequency 500HZ Control output NPN OPEN -COLLECTOR TRANSISTOR Ambient Humidity Range 45 TO 85% RH Availability In Stock We provide our products and services inpan india. Owing to high demand, professionals make these products in varied patternsWe are engaged in offering Contactor which is extremely praised in the market.

Read more less

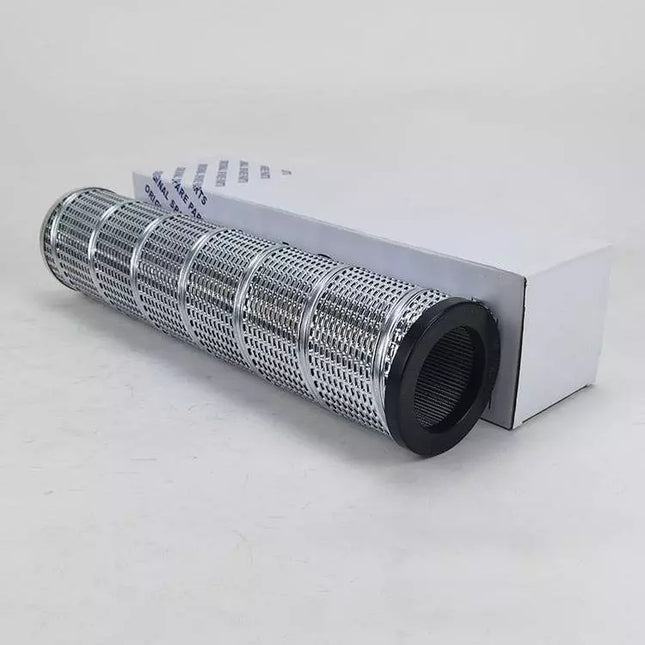

Product Attributes： Model No ： MR2504A10AP01 Brand ： BAMA Packaging : Carton Box Productivity : 3000pcs/month Transportation : Ocean,Land,Air Place of Origin : Hebei, China Certificate ： ISO9001:2015 HS Code ： 8421999090 Selling Units: Piece/Pieces Filtration Efficiency : 99%

Read more less

Speed 1500 rpm Type DC COOLING FAN COLOR BLACK MATERIAL PLASTIC VOLTAGE 24V DC Usage/Application CNC MACHINE / DRIVES CURRENT 0.36A Availability In Stock MODEL: MMF-12D24DS-CP1BRAND: MELCOVOLTS: 24 VDCAPPLICATION: USED IN MITSUBISHI CNC MACHINESORIGIN: CHINA

Read more less

Description DELIVERY PERIOD : 1-2 WEEKS [Type] Circuit Protector[Series Name] CP SeriesFrame A: 30Model: CP30-BA 2P 1-MPoles: 2[Rated Current (A)] 3[Rated insulation voltage (V)] 250[Rated impulse resistance voltage (kV)] 2.5[Current type] AC/DC[Reverse connection] Yes[Open and close life (times)]Mechanical 10000Electrical 6000[Standard Ambient Temperature] 40 (T40)[Internal Circuit] Series[Characteristics] Medium speedPull off system: Medium speed[Connection method] Screw terminalOperating Method: S-type (IEC 60934)[Pull off free/Operating system] Trip-free (IEC 60934)[External Dimensions (mm)]a 35b 73c 65ca 65Product Weight: 0.3 lbs (0.16 kg).[Installation Method]Surface mountIEC 35mm Rail MountFlush Mount[Marine Association Certified] NK acquired

Read more less

Item ID BRH 0811404803 Manufacturer Part # 0811404803 AHC Part # 1349712 Unit Size 1 Brand Bosch Rexroth Features 4WRPH and 4WRPEH type proportional directional valves offer fast response, minimal hysteresis, and are excellent performers in closed loop applications. Available with or without on-board electronics, these valves may be used in a variety of applications and environments. The robust design is also applicable to circuits where vibration may be a concern Directly operated servo solenoid directional control valve, with control piston and sleeve in servo quality Actuated on one side, 4/4 fail-safe position when switched off Electrical position feedback and on-board electronics (OBE) Electrical connection - 6P+PE, signal input differential amplifier with interface A1 ±10 V, or interface F1 4...20 mA (Rsh = 200 ?) Controls the direction and magnitude of the flow Use for position, velocity and pressure control Actuation through control solenoid Position sensing of the control spool via an inductive position transducer Characteristic curves with and without inflection, unit series 2X Spool and sleeve in servo-type quality, Integral electronics (OBE) for type 4WRPEH, Control piston/sleeve Tech Specifications Type: Direct Operated, High-Response Series: WRPEH10 Size: 10 Fluid Type: Mineral Oil (HL, HLP) Electrical Connection: Without Plug-in Connector, With Plug to DIN 43563-AM6 Actuator Type: Control Servo Solenoid With Position Control Number of Ways: 4 Number of Position: 4 Flow Rating: 100Lpm (Linear) Voltage Rating: 24VDC Power Rating: 40VA Seal Material: NBR Mounting: Subplate Spool Action: Fail Safe Position Spool Symbol: C4 Viscocity: 10-800 sq-mm/sec Pressure Rating: 250 - 315 Bar Temperature Rating: -20 to 50 deg C Fluid Temperature Rating: -20 to 70 deg C Includes: Sleeve, Electrical Position Feed Back and Integrated Control Electronics Dimensions: 242 mm Depth x 70 mm Width x 129 mm Height Weight: 2.7kg

Read more less

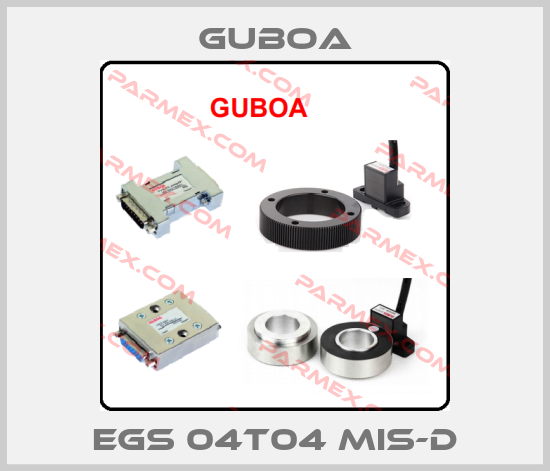

EGS 04T04 MIS-D Fabricantes : Guboa Producto : EGS 04T04 MIS-D Descripción : sensor Código interno: PAR4352573 peso (kg) 0.3

Read more less

Brand ZHRCLY Item dimensions L x W x H 1 x 1 x 1 inches Manufacturer Original factory About this item Brand Name:NoEnName_Null Origin:Mainland China Type:Valves

Read more less

Brand ZHRCLY Item dimensions L x W x H 1 x 1 x 1 inches Manufacturer Original factory About this item Brand Name:NoEnName_Null Origin:Mainland China Type:Valves

Read more less

Product Attributes Type Description Select All Category Power Supplies - External/Internal (Off-Board) AC DC Desktop, Wall Power Adapters Manufacturer ENG ELECTRIC CO., LTD Series 6A-601DB12 (65W) Packaging Box Part Status Active Region Utilized International Form Desktop (Class I) Input Type Cord (Sold Separately) Voltage - Input 90 ~ 264 VAC Voltage - Output 12V Current - Output (Max) 5A No Load Power Consumption 210mW (Max) Polarization Positive Center Applications ITE (Commercial) Efficiency Level VI Operating Temperature 0°C ~ 40°C Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm Cord Length 47.2" (1.20m) Input Connector IEC 320-C14 Size / Dimension 4.76" L x 2.05" W x 1.30" H (121.0mm x 52.0mm x 33.0mm) Approval Agency AS/NZS,BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL Standard Number 60950-1; 62368-1

Read more less

Grit Material Aluminium Oxide Brand L&T (Larsen & Toubro) Grit Type Medium Item Weight 500 Grams Set Name Single Set (3 items)
