Specification Product Attributes Manufacturer Product Code ST 406080B Basic Product Description Linear ball bearing Measurement Metric UOM Each id (mm) 40 od (mm) 60 Width (mm) 80 Weight (Kg) 0.54 Variance Closed type linear ball bearing

Read more less

Model number: ER6VC119A,ER6V/3.6V Features: high energy density, long service life Application: Suitable for Omron instrument, water meter, gas meter, CNC machine, PLC machine, etc storage life: Suitable for long-term micro-current work.Normal storage, storage life of up to 10 years Safty: work with long-time micro-current, stable working voltage and good safety

Read more less

Safety Level Type 4 Model Name/Number CE3ae3 Technique Na Range Of Product Jrr Availability In Stock

Read more less

Output Voltage 24V Usage/Application Electronic Instruments Input Voltage 24V Design Smps Display Type LED Series ORBPS-1 Input Current 400mA Availability In Stock POWER SUPPLY MODULE FOR SAFETY LIGHT CURTAIN.ORBPS-1KEY OPERATED.24V, 400mA Paracetamol Tablets IP Parahin 650 77 Mrp 33.60

Read more less

specifications description Model No EE-SX670A Type Photomicro Sensor Product Sub Type Slot Type Connecting Method Connector type（direct soldering possible ） Sensing Distance 0 to 5 mm (slot width) Sensing Method Through-beam type (with slot) Output Configuration NPN Protection Class IEC60529 IP50 Supply Voltage 5 to 24V ±10% (ripple (p-p)10% max.) Operation Mode Dark-ON/Light-ON (selectable) Vibration Resistance 20 to 2,000 Hz(peak acceleration 100 m/s2), 1.5 mm double amplitude for 2 h (4 min periods) each in X, Y, and Z directions Shock Resistance 500 m/s2 for 3 times each in X, Y, and Z directions Indicator No incident light (red) Appearance Standard Country of Origin Japan Name of Manufacturer/Packer/Importer Omron Corporation

Read more less

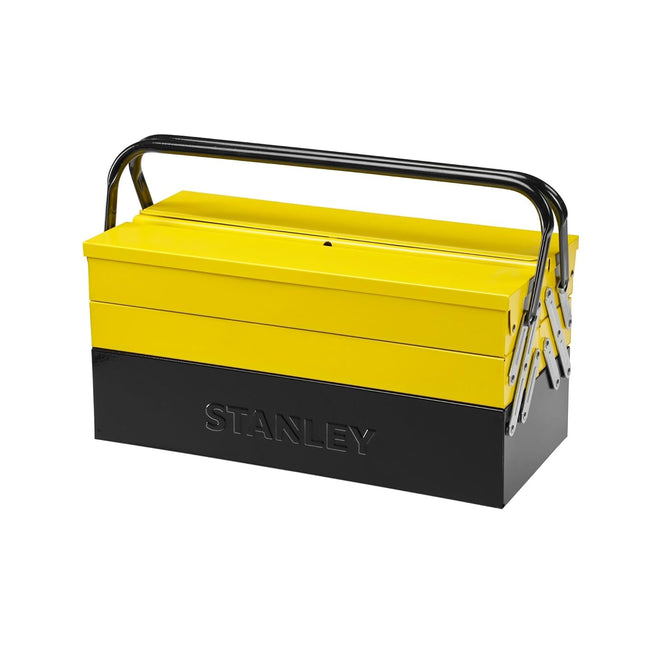

Colour: Multicolour Style Name: 5 Drawer Pattern Name: Tool Kit Brand STANLEY Material Metal Colour Multicolour Product Dimensions 46L x 20W x 20H Centimeters Water Resistance Level Not Water Resistant About this item Electro-powder coating to resist scratch and solvent markings Heavy duty metal for body construction and handle to provide ultimate durability. Double latch for greater strength Tray swing out for easy tool access This tool box is designed for heavy duty use.The portable box has a removable tray compartment The multi-purpose tool box features an internal tray with handle, to place tools It helps in safekeeping the tools and it prevents the user from misplacing any important equipment The tool box is ideal for use by professionals, It offers a convenient solution for tools

Read more less

Inductive sensor Key Benefits at a Glance 2 mm flush Increased operating distance Extended temperature range-40 ... +85 °C

Read more less

Triangulation sensor with background suppression, 350 mm adjustable detection range, red light, light/dark on, pnp output, fixed cable Show more Key Benefits at a Glance Miniature design Easy to use Very bright, highly visible light spot Full metal thread mounting Highly visible LEDs for Power ON and switching state Not sensitive to ambient light

Read more less

Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number NA1-PK5-PN Part Number NA1-PK5-PN Products Name Ultra-slim Body Picking Sensor Product details PNP output [Standard type] The price of the product Please contact our office Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UL Recognition Sensing height 100 mm 3.937 in Sensing range 0.1 to 1.2 m 0.328 to 3.937 ft(0.05 to 0.5 m 0.164 to 1.640 ft when set to SHORT)(Note) The sensing range is the possible setting distance between the emitter and the receiver. Beam pitch 25 mm 0.984 in Number of beam channels 5 beam channels Sensing object ø35 mm ø1.378 in or more opaque object(completely beam interrupted object) Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less Power consumption Emitter: 0.6 W or lessReceiver: 0.9 W or less(Note) Obtain the current consumption by the following equation.Current consumption = Power consumption / Supply voltage(e.g.) When the supply voltage is 12 V, the current consumption of the emitter is0.5 W / 12 V ≈ 0.042 A = 42 mA Output PNP open-collector transistor- Maximum source current: 100 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current) Output:Utilization category DC-12 or DC-13 Output:Output operation ON or OFF when one or more beam channels are interrupted / ON or OFF when two or more beam channels are interrupted, selectable by operation mode switch Output:Short-circuit protection Incorporated Response time 10 ms or less (when the interference prevention is used, in Light state: 30 ms or less, in Dark state: 13 ms or less) Indicators:Emitter Power indicator: Green LED (lights up when the power is ON)Job indicator: Orange LED (lights up or blinks when the job indicator input is High, lighting pattern is selected by operation mode switch) Indicators:Receiver Operation indicator: Red LED (lights up when one or more beam channels are interrupted, but lights up when two beam channels or more are interrupted in the double-beaminterruption mode)Stable incident beam indicator: Green LED (lights up when all beam channels are stably received)Job indicator: Orange LED (lights up or blinks when the job indicator input is High, lighting pattern is selected by operation mode switch) Interference prevention function Incorporated Pollution degree 3 (Industrial environment) Protection IP62 (IEC) Ambient temperature -10 to +55 ℃ +14 to +131 ℉(No dew condensation or icing allowed),Storage: -20 to +70 ℃ -4 to +158 ℉ Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each Shock resistance 490 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each Emitting element Infrared LED(Peak emission wavelength: 950 nm 0.037 mil, synchronized scanning system) Material Enclosure: Heat-resistant ABSLens cover: AcrylicIndicator cover: Acrylic Cable 0.3 mm2 4-core (emitter: 3-core) oil resistant cabtyre cable, 2 m 6.562 ft long Cable extension Extension up to total 100 m 328.084 ft is possible for both emitter and receiver with 0.3 mm2, or more, cable. Weight Net weight: Emitter 80 g approx., Receiver 85 g approx.Gross weight: 270 g approx.

Read more less

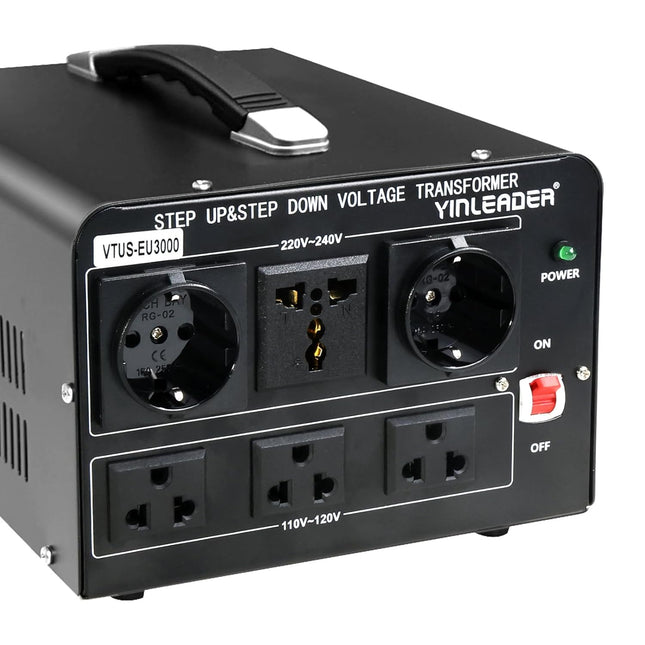

Brand Yinleader Power Source Corded Electric Product Dimensions 26D x 19W x 16H Centimeters Current Rating 28 Amps Specification Met CE About this item 【Reliable Voltage Conversion】It can step-up voltage from 110-120V to 220-240V or step down voltage from 220-240V to 110-120V, making it perfect for use anywhere in the world. 【Multiple Outlets】6 AC outputs, 3 US Standard Socket for 110-120V appliance(s) & 2 EU Sockets and 1 Universal Socket accept all types of plugs except the Big South African plug for 220-240V appliance(s).The transformer can be used in countries which voltage are 90V～125V or 180V～250V such as US, EU, UK, JP and more. 【Enhanced Safety】 Our step up step down transformer has CE Certification and is equipped with circuit breaker protection, overload protection, and overheat protection to ensure your safety and prevent accidents. 【Versatile】The Voltage Converter Transformer can use for both home use and commercial applications.Such as coffee machine, saw, TVs, rice cookers, and more.For safety, it's recommended to use a Voltage Converter/Transformer that's max watts is at least 50% higher than your appliance.We recommend 3X efficiency factor for high wattage heat producing items such as Air Condition, coffee maker,Welding Equipment etc. 【Note】The transformer only converts the voltage, not the frequency hz. If your appliance is not compatible with 50/60hz, it will have an effect on the usage effect. 【what you get】3000 Watt Voltage Converter,Power Cord w/USA Grounded 3-Prong Plug,Manual

Read more less

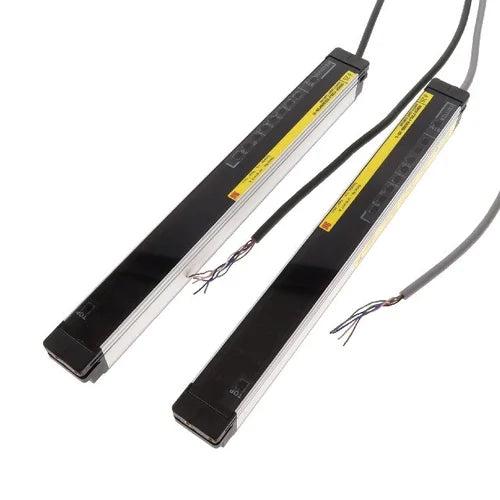

Material Plastic Model Name/Number F3SJ-E0305P25 Automation Grade Automatic Color Black Accuracy 99% Diameter 20 mm Availability In Stock Omron Safety light curtain, 305mm height, 25mm resolution Type 4, PNP output, 3mtr cable length, prewired type. We are authorized channel partner, dealers, distributors, suppliers for OMRON, PANASONIC, FUJI ELECTRIC, PHOENIX CONTACT, FESTO, CANON, SUPVAN, EPSON ROBOTS and Super Stockiest, Wholesalers for MITSUBISHI ELECTRIC, PROFACE, BANNER, SCHNEIDER ELECTRIC, SIEMENS, MEANWELL, AUTONICS, DELTA, SICK Etc. Note : We are also Importers and Exporters  for all Industrial Automation products along with  manufacturers of Electrical Control Panels.
