Automation Products
-
MODEL-CONNECTING BAR 20 POS JUMPER 38X1 SERIES BLUE 093.20 TO SOCKETS
Colour Blue Pattern Solid Brand Finder Number of Pieces 1 Global Trade Identification Number 08012823122977 Manufacturer Finder About this item Type of accessory: connecting bridge For connecting A1 or A2 terminals with up to 20 sockets Colour: blue
Rs. 450.00
-
MODEL-SOURCE STEP-PS/1AC/24VDC/1.75(PRODUCT NO. 2868648) 1.75A, 24V DC,100-240V AC
STEP POWER power supplies for distribution boardsThe STEP POWER power supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface.
Rs. 5,400.00
-
MODEL-SOURCE STEP-PS/1AC/24VDC/1.75(PRODUCT NO. 2868648) 1.75A, 24V DC,100-240V AC
STEP POWER power supplies for distribution boardsThe STEP POWER power supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface.
Rs. 6,372.00
-

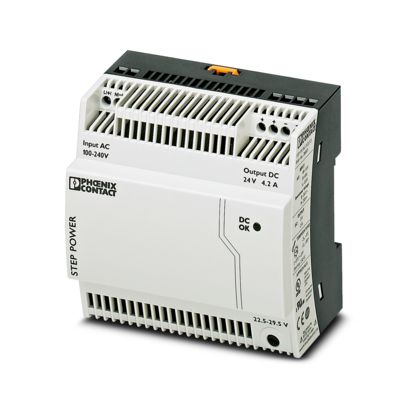

MODEL-SOURCE STEP-PS/1AC/24DC/4.2(2868664) 4.2A,24V DC,100-240V AC
STEP POWER power supplies for distribution boardsThe STEP POWER power supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface.
Rs. 9,500.00
-
MODEL-SERIAL TERMINAL BOX A131181 RSA 4A-NO
Rated cross-section [mm²] 4 Connection capacity [mm²] 0,5 ÷ 6 Rated current [A] 32 Short-time withstand current [A] 480 Insulation voltage Ui [V] 1000 V AC / 1500 V DC Impulse voltage U (Imp) [V] 8000 Tightening torque [Nm] 0,5 Tools Screwdriver PH 0 / 0,5 x 3 Assembly method (on DIN rail) TH 15, TH 35, G 32 Pollution degree 2 IP code 20 Operating temperature [°C] -40 ÷ +105 Number of clamping points per level 2 Number of levels 1 End cover plate required YES Testing IEC 60947-7-1 Dimensions [mm] (width / height / length) 6,6 / 39 / 41,5 Weight [g] 8 Packing [pcs] 100 Clamping screw M 3 x 7 Conductor cross section Solid conductor [mm²] 0,5 ÷ 6 Stranded conductor [mm²] 0,5 ÷ 4 Finely stranded conductor [mm²] 0,5 ÷ 4 2 x Solid conductor, stranded, finely stranded [mm²] 0,5 ÷ 2,5 3 x Solid conductor, stranded, finely stranded [mm²] 0,5 ÷ 1 Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²] 4 Stripping length [mm] 10 Performance Insulating body Polyamide PA 6, flammability V0 halogen free Electric conductive part Brass (galvanic surfaced) Fixing part Thermally treated steel (galvanic surfaced)
Rs. 265.00
-
MODEL-SERIAL TERMINAL BOX A131181 RSA 4A-NO
Rated cross-section [mm²] 4 Connection capacity [mm²] 0,5 ÷ 6 Rated current [A] 32 Short-time withstand current [A] 480 Insulation voltage Ui [V] 1000 V AC / 1500 V DC Impulse voltage U (Imp) [V] 8000 Tightening torque [Nm] 0,5 Tools Screwdriver PH 0 / 0,5 x 3 Assembly method (on DIN rail) TH 15, TH 35, G 32 Pollution degree 2 IP code 20 Operating temperature [°C] -40 ÷ +105 Number of clamping points per level 2 Number of levels 1 End cover plate required YES Testing IEC 60947-7-1 Dimensions [mm] (width / height / length) 6,6 / 39 / 41,5 Weight [g] 8 Packing [pcs] 100 Clamping screw M 3 x 7 Conductor cross section Solid conductor [mm²] 0,5 ÷ 6 Stranded conductor [mm²] 0,5 ÷ 4 Finely stranded conductor [mm²] 0,5 ÷ 4 2 x Solid conductor, stranded, finely stranded [mm²] 0,5 ÷ 2,5 3 x Solid conductor, stranded, finely stranded [mm²] 0,5 ÷ 1 Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²] 4 Stripping length [mm] 10 Performance Insulating body Polyamide PA 6, flammability V0 halogen free Electric conductive part Brass (galvanic surfaced) Fixing part Thermally treated steel (galvanic surfaced)
Rs. 312.70
-
Industry Baba0 MODEL-RE30E-400-213-1-ENCODER, COPAL NIDEC
Product Attribute Attribute Value Select Attribute Manufacturer: Nidec Product Category: Encoders RoHS: Series: RE30E Mounting Style: Panel Mount Product: Optical Encoders Type: Incremental Resolution: 400 PPR Technology: Optical Number of Detents: No Detent Number of Channels: 2 Channel Termination Style: Wire Leads Output Type: Quadrature with Index Shaft Diameter: 4 mm Shaft Type: D / Flatted With Switch: Without Switch Operating Supply Voltage: 5 VDC to 12 VDC IP Rating: IP40 Packaging: Box Brand: Nidec Components Cable Length: 500 mm Maximum Operating Temperature: + 70 C Minimum Operating Temperature: 0 C Product Type: Encoders Shaft Length: 10 mm Size/Dimension: 30 mm x 30 mm 25 Subcategory: Encoders Unit Weight: 67.700 g
Rs. 7,350.00
-
MODEL-MOTOR 7Y20 KH42KM2-901 MADE IN VETNAM SERVO
Item specifics Condition Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is ... Read moreabout the condition Brand Japan Servo Co. LTD MPN KH42KM2-901 Wiring Configuration 6-Wire Unipolar Country of Origin Japan UPC Does not apply Category breadcrumb
Rs. 2,707.00
-
MODEL - LCD/HMI fan 109P0424H6D01 SANYO DENKI
Product Attribute Attribute Value Select Attribute Manufacturer: Sanyo Denki Product Category: DC Fans RoHS: Type: Axial Height: 40 mm Depth: 20 mm Width: 40 mm Operating Supply Voltage: 24 VDC Airflow: 8.23 CFM (0.23 m3/min) Speed: 8300 RPM Bearing Type: Ball Noise: 35 dBA Power Rating: 1.68 W Features: Locked Rotor Sensor Housing Material: Plastic Termination Style: Wire Leads - 3 Series: 9P Type Brand: Sanyo Denki Compliance: CSA; TUV; UL Current Type: DC Packaging: Bulk Pressure Type: 7.1 mmAq Product Type: DC Fans 70 Subcategory: Fans, Blowers & Accessories Tradename: San Ace 40 Part # Aliases: 109P0424H6D01PJ Unit Weight: 45 g
Rs. 1,450.00
-
MODEL - LCD/HMI fan 109P0424H6D01 SANYO DENKI
Product Attribute Attribute Value Select Attribute Manufacturer: Sanyo Denki Product Category: DC Fans RoHS: Type: Axial Height: 40 mm Depth: 20 mm Width: 40 mm Operating Supply Voltage: 24 VDC Airflow: 8.23 CFM (0.23 m3/min) Speed: 8300 RPM Bearing Type: Ball Noise: 35 dBA Power Rating: 1.68 W Features: Locked Rotor Sensor Housing Material: Plastic Termination Style: Wire Leads - 3 Series: 9P Type Brand: Sanyo Denki Compliance: CSA; TUV; UL Current Type: DC Packaging: Bulk Pressure Type: 7.1 mmAq Product Type: DC Fans 70 Subcategory: Fans, Blowers & Accessories Tradename: San Ace 40 Part # Aliases: 109P0424H6D01PJ Unit Weight: 45 g
Rs. 1,711.00
-
MODEL - LCD/HMI fan 109P0424H6D01 SANYO DENKI
Product Attribute Attribute Value Select Attribute Manufacturer: Sanyo Denki Product Category: DC Fans RoHS: Type: Axial Height: 40 mm Depth: 20 mm Width: 40 mm Operating Supply Voltage: 24 VDC Airflow: 8.23 CFM (0.23 m3/min) Speed: 8300 RPM Bearing Type: Ball Noise: 35 dBA Power Rating: 1.68 W Features: Locked Rotor Sensor Housing Material: Plastic Termination Style: Wire Leads - 3 Series: 9P Type Brand: Sanyo Denki Compliance: CSA; TUV; UL Current Type: DC Packaging: Bulk Pressure Type: 7.1 mmAq Product Type: DC Fans 70 Subcategory: Fans, Blowers & Accessories Tradename: San Ace 40 Part # Aliases: 109P0424H6D01PJ Unit Weight: 45 g
Rs. 1,711.00
-

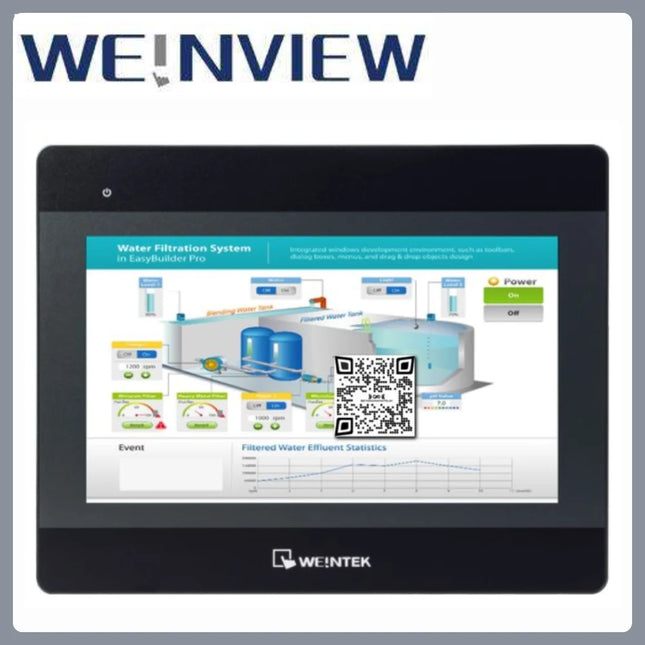

MODEL-HMI MODEL NO-MT6103IP, S/N 1708237749, 1, WV, INPUT 24 VOLT DC MAKE WEINVIEW
Mounting Type Panel Mount Brand Weinview Model Name/Number MT6103iP Display Size 10.1" TFT LCD, 1024x600 resolution Touchscreen 5-wire resistive Power Supply 24V DC +-15% Dimensions Approx. 276 x 180 x 45 mm Availability In Stock The Weinview MT6103iP is a high-performance 10.1-inch HMI designed for industrial applications, offering a clear 1024x600 resolution TFT LCD display with a 5-wire resistive touchscreen. This versatile interface supports RS232, RS485, and Ethernet communication, providing seamless connectivity with various PLCs and automation systems. Powered by a 24V DC supply, the MT6103iP is built for reliability and ease of use in process control, SCADA systems, and industrial machinery interfaces. With its fanless design and industrial-grade durability, it is well-suited for diverse automation environments. Key Features: 10.1" TFT LCD with 1024x600 resolution 5-wire resistive touchscreen for enhanced touch input 24V DC power input (±15%) Communication Ports: RS232, RS485 x2, Ethernet Fanless design for long-lasting, quiet operation Panel-mountable for easy integration into control panels Supports various PLC and industrial protocols
Rs. 20,580.00
