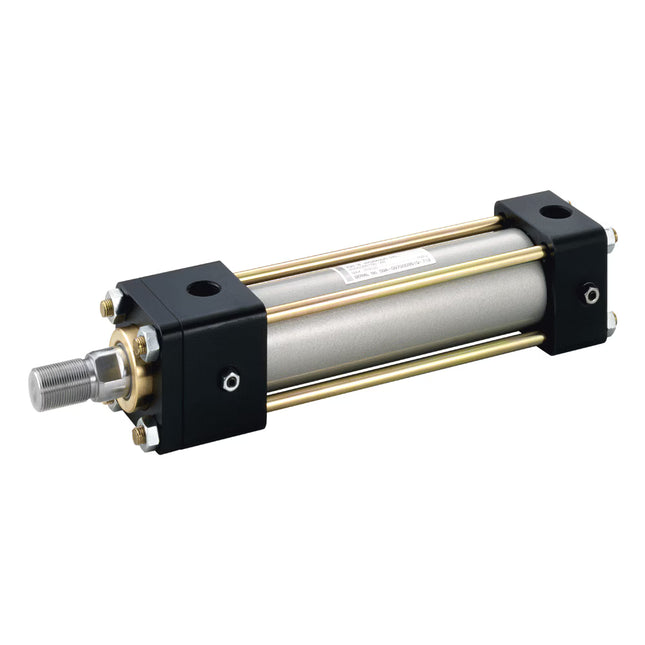

Technical Specifications Bore Diameter: 32 to 250 mm (Rod B), 40 to 250 mm (Rod C), 40 to 160 mm (Rod A) Seal Material: Nitrile (NBR) [1], Urethane Rubber [2](φ32 to φ160), Fluorocarbon [3], Hydrogenated Nitrile (HNBR) [6](φ32 to φ160), Slipper Seal [8](φ32 to φ100) Operating Pressure: 14 MPa Maximum Operating Pressure: 9 MPa Cap Side, 15 MPa Rod Side(A), 13.5 MPa Rod Side(B), 11 MPa Rod Side(C) Proof Pressure: 21 MPa Minimum Operating Pressure: 0.3 MPa or Less, Cap Side, 0.6 MPa or Less, Rod Side(A), 0.45 MPa or Less, Rod Side(B), 0.4 MPa or Less, Rod Side(C) Operating Speed: 8 to 400 mm/sec (U Sealφ32 to φ63), 8 to 300 mm/sec (φ80 to φ125), 8 to 200 mm/sec (φ140 to φ250), 1 to 400 mm/sec (Slipper Sealφ32 to φ63), 1 to 300 mm/sec (φ80,φ100) Operating Temperature: -10 to 80 °C (No freezing) Cushioning Type: Metal Fitting System For Fluid Type: Petroleum-based Fluid (when using another fluid, give us such instructions.) Thread Tolerance: JIS 6g/6H Stroke Tolerance: 0 to +0.8 mm (0 to 100 mm), 0 to +1.0 mm (101 to 250 mm), 0 to +1.25 mm (251 to 630 mm), 0 to +1.4 mm (631 to 1000 mm), 0 to +1.6 mm (1001 to 1600 mm), 0 to +1.8 mm (1601 to 2000 mm) Tube Material: Carbon Steel for Machine Structural Use Mounting Type: SD, LA, LB, LC, FA, FB, FC, FD, FK, FE, FY, FZ, CA, CB, CS, TA, TC Rod End Type: Rod Eye (T-end), Rod Eye (S-end) with spherical bearing, Rod Clevis (Y-end) with pin, lock nut, Floating Joint (F-end:Do not use together with Mounting style CA, CB, CS, TA and TC accessories.), Boots Standard: Nylon tarpaulin, Semi-standard: Chloroprene, Conex Bellows Material: Nylon Tarpaulin (Standard), Chloroprene, Conex (Semi-standard)

Read more less

Colour Green Brand Bosch Material Chrome Vanadium Steel Item Length 23.9 Centimetres Item Weight 1.14 Kilograms About this item Universal Application: This versatile 8-piece wrench set features both open-ended and ring ratchet wrenches, allowing you to tackle a wide variety of tasks. Whether you're working on automotive repairs, plumbing, or general maintenance, this set has you covered. Powerful Torque: The ring ratchet wrenches are designed with a robust 72-tooth mechanism, providing powerful torque and making it easy to handle stubborn fasteners. This feature ensures efficient operation and reliability during use, even in tight spaces. High-Quality Construction: Crafted from premium chrome vanadium steel, these wrenches are not only durable but also rust-resistant. This high-quality material ensures long-lasting performance, making them a reliable choice for both professionals and DIY enthusiasts. Matt Chrome Plated Finish: The wrenches feature a matt chrome plated surface that enhances corrosion resistance and provides a sleek appearance. This finish not only improves durability but also reduces friction, ensuring smooth operation during use. Colour-Coded Size Indication: With a colour-coded size indication system, finding the right wrench for the job is quick and easy. This thoughtful design enhances visibility, allowing for fast selection and minimizing downtime on your projects. Compact Carry Case: The set comes with a compact carry case, making it easy to transport and store the wrenches. The case keeps everything organized, ensuring you can take your tools wherever you need them without the hassle of searching for the right size. Ergonomic Design: Each wrench is ergonomically designed to provide a comfortable grip, allowing for improved control and reduced hand fatigue. This design ensures that you can work for longer periods without discomfort, enhancing productivity.

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Power Supplies - DIN Rail Mount RoHS:   REACH - SVHC: Product: Switching Supplies Output Power: 300 W Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC Number of Outputs: 1 Output Output Voltage-Channel 1: 24 VDC Output Current-Channel 1: 14 A Industry: Industrial Length: 201 mm (7.913 in) Width: 102 mm (4.016 in) Height: 42.5 mm (1.673 in) Brand: Omron Automation and Safety Mounting Style: DIN Rail Open Frame/Enclosed: Enclosed Product Type: DIN Rail Power Supplies 1 Subcategory: AC-DC Power Supply Part # Aliases: S8FSG30024CD Unit Weight: 1.057 kg

Read more less

Brand Motwane Power Source Battery Powered Item Weight 900 g Item dimensions L x W x H 25 x 13 x 6 Centimeters Manufacturer Motwane About this item 3½ digit (1999 counts) backlit LCD display with annunciators Overload protection on all ranges Range 1000A AC Max jaw opening: 50 mm One 9V battery type 6F 22 or equivalent

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Power Supplies - DIN Rail Mount RoHS:   REACH - SVHC: Product: Switching Supplies Input Type: 1-Phase / Single Phase Output Power: 120 W Input Voltage: 85 VAC to 264 VAC Number of Outputs: 1 Output Output Voltage-Channel 1: 24 VDC Output Current-Channel 1: 5 A Industry: Industrial Length: 122.2 mm (4.811 in) Width: 40 mm (1.575 in) Height: 125 mm (4.921 in) Series: S8VKC Brand: Omron Automation and Safety Product Type: DIN Rail Power Supplies 1 Subcategory: AC-DC Power Supply Part # Aliases: S8VKC12024 Unit Weight: 580 g

Read more less

Versatile: This 8-channel relay module features 1C/O (one changeover) OEN relays with 24VDC coil voltage, suitable for various industrial applications. Robust Construction: The relays are securely mounted on sockets, ensuring durability and easy maintenance or replacement. Convenient Wiring: Clearly labelled terminals facilitate hassle-free wiring and connections. Compact Design: The module's compact form factor allows for space-saving installation in control panels or enclosures. Wide Applications: Ideal for use in automation systems, control circuits, and other applications requiring reliable switching of electrical loads.

Read more less

Key Benefits at a Glance 4 mm non-flush 3-wire DC Please contact us for exact delivery estimation.

Read more less

Type of Product Gas Cutter Size 70 sqmm

Read more less

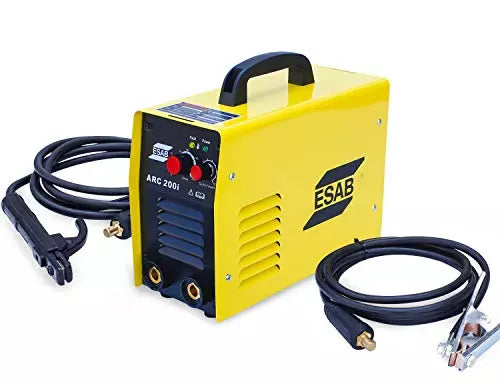

Type of Product MMA Arc Welding Machine Technology IGBT Input Power 7.3 KVA Frequency 50/60 Hz Phase 1 Phase Weight 10.68 Kg Model No Arc 200i Power Factor 0.9 Electrode Diameter 4 mm Current 200 Amp Voltage 220 V Color Multi Suitable Electrode Diameter 4 mm Duty Cycle 200 A Current Range 201-300 Amp Load Capacity 60% Overall Dimensions 40.4x33.5x32.5 mm Machine Type MMA Arc Welding Machine

Read more less

Ratings Operating indicator LED Coil surge killer Diode Degree of protection Closed type (cover) Terminal structure Plug-in terminal Coil Coil ratings 24 VDC 36.3 mA Coil resistance 662 Ω Operate voltage (Set voltage) 80 % max. Release voltage (Reset voltage) 10 % min. Maximum voltage 110 % (23 ℃) Power consumption Approx. 0.9 W Contact Contact rated load 220 VAC 5 A (Resistive load)220 VAC 2 A (Inductive load (cosφ = 0.4))24 VDC 5 A (Resistive load)24 VDC 2 A (Inductive load (L/R = 7 ms)) Max. contact voltage 250 VAC125 VDC Max. contact current AC: 5 ADC: 5 A Maximum switching power 1100 VA (Resistive load)440 VA (Inductive load (cosφ = 0.4))120 W (Resistive load)48 W (Inductive load (L/R = 7 ms)) Contact form DPDT Contact method Single Contact material Ag Performance Contact resistance 50 mΩ max. (Voltage drop method with 5 VDC 1 A) Operating time 20 ms max. (With rated operating power applied, not including contact bounce) Reset time 20 ms max. (With rated operating power applied, not including contact bounce) Maximum operating frequency Mechanical: 18000 time/hourRated load: 1800 time/hour Insulation resistance Between coil and contacts: 100 MΩ min. (at 500 VDC)Between contacts of different polarity: 100 MΩ min. (at 500 VDC)Between contacts of same polarity: 100 MΩ min. (at 500 VDC) Dielectric strength Between coil and contacts: 2000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2000 VAC 50/60 Hz 1 minBetween contacts of same polarity: 1000 VAC 50/60 Hz 1 min Vibration resistance (destruction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) Vibration resistance (Malfunction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) Shock resistance (destruction) 1000 m/s2 Shock resistance (Malfunction) 200 m/s2 Endurance (Mechanical) 100 million operations min. (switching frequency 18,000 operations/h) Endurance (Electrical) 500,000 operations min. (23 ℃, Rated load, switching frequency 1,800 operations/h) Failure rate 1 mA at 5 VDC (failure level: Preference value, Switching frequency: 120 operations per minute) Ambient temperature (Operating) -55 to 60 ℃ (with no freezing or condensation) Ambient humidity (Operating) 5 to 85 % Weight Approx. 35 g Mounting method Socket Applicable socket PYF08S/ PYF08M/ PYF-08-PU/ PYF-08-PU-L/ PYFZ-08/ PYFZ-08-E/ PY08/ PY08-Y1/ PY08QN/ PY08QN2/ PY08QN-Y1/ PY08QN2-Y1/ PY08-02

Read more less

Number Of Poles 4 Pole Available Product Code LY4N Omron Relay Brand Name Omron Relay , Honeywell Relay Available Voltage 12V / 24V / 36V / 48V / 110 V / 220 VAC/DC Other Series WJQX-40F, WJQX-59F, WJQF-38F, WJQX-62F, WJQX-60F, WJQX-30F Relay Pin Available 8 Pin , 11 Pin , 14 Pin Relay Series Model MY2N , MY3N , MY4N , LY2N , LY3N , LY4N , MK2PN , MK3PN , K2PN , K3PN Stock Ready Stock Availability In Stock

Read more less

Specifications Mounting method With plug-in socket Usage General purpose, High power Poles 4 Rated carry current 10 A Coil voltage 24 V Operation voltage DC Contact material Ag alloy Contact description 4PDT Features LED, Transparent case Terminal type Plug-in
