Application Area for Plastic Industry Control Type On/Off Display Size 96*96 mm Output type Relay Sensor Input RTD, Thermocouple Dimension 96*96 panel size Country of Origin Made in India

Read more less

Contactor Type Magnetic Contactors Number of Poles 4 Pole Mounting Type PC Board Voltage 440V Switching Current 22A Electricity Type DC Usage/Application Industrial Phase Three Phase Power 7.5kW Brand Fuji Electric Model NO SC-5-1/G Availability In Stock

Read more less

Usage for Industrial Output PNP Voltage 24 V Switching Function Normally open (NO) Detectable Object Metals Material Stainless Steel Dimension Dia-8mm Length-60mm Operating Voltage 10-30VDC Range 2mm Connector M12 Frequency 100Hz Operating temperature -25 To 70 Deg C Protection IP67 IP68 IP69K Availability In Stock Electrical design PNP Output function normally open Sensing range[mm] 2 Housing threaded type Dimensions[mm] M8 x 1 / L = 60

Read more less

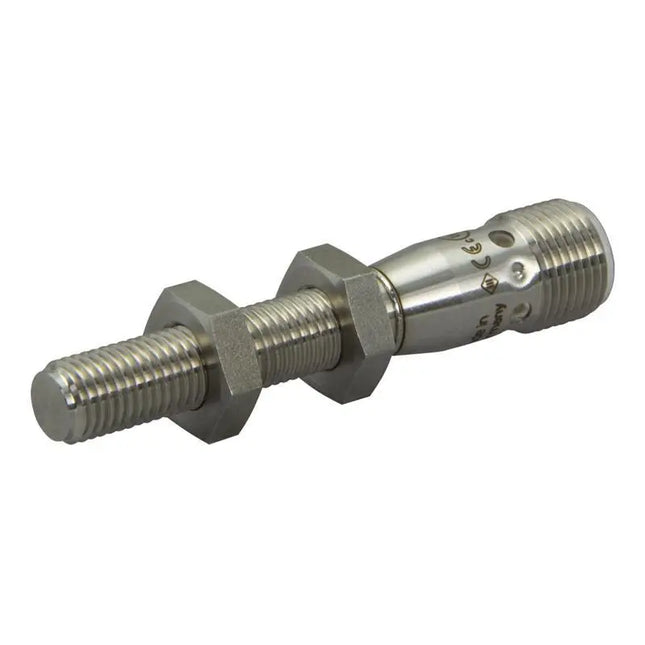

Inductive sensor ifm electronic IEC200 - IEK3002BBPKG/AM/US The inductive sensor IEC200 - IEK3002BBPKG/AM/US from ifm operates with a supply voltage of 10-36 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 2 mm with flush installation the inductive sensor IEC200 - IEK3002BBPKG/AM/US provides more reliability in your applications. Thanks to the high protection rating IP67/IP68, the sensing face of resistant LCP and the special resistance to oils and coolants the inductive sensor IEC200 - IEK3002BBPKG/AM/US is often used as proximity switch in machine tools.

Read more less

A TECHNO 1 Inch 2/2 Way Diaphragm Valve 2W-250-25 is a type of valve that uses a flexible diaphragm to regulate the flow of fluids. It consists of a body, a diaphragm, and a mechanism to actuate the diaphragm, such as a handwheel, pneumatic actuator, or electric actuator. The diaphragm is typically made of a flexible material such as rubber or synthetic elastomer, and it forms a barrier between the fluid flow path and the valve body. When the diaphragm is in the closed position, it seals against the valve seat, preventing fluid from passing through the valve. When the diaphragm is lifted or moved away from the seat, it allows fluid to flow through the valve. Diaphragm valves are commonly used in applications where precise control of fluid flow and tight shut-off are required. They are particularly well-suited for handling corrosive, abrasive, or viscous fluids, as well as fluids containing suspended solids or slurries. One of the key advantages of diaphragm valves is their ability to provide a tight seal even when handling fluids that may be prone to leakage or contamination. Additionally, they are relatively simple in design, easy to operate, and require minimal maintenance. Diaphragm valves find applications in various industries, including water treatment, pharmaceuticals, chemical processing, food and beverage, and biotechnology. They are used in processes such as flow control, shut-off, throttling, and dosing. Overall, diaphragm valves offer reliable performance, excellent sealing capabilities, and versatility, making them suitable for a wide range of fluid handling applications across different industries.

Read more less

Operating mechanism Snap action ctuator Roller plunger 9.5 dia. x 5Resin roller Frequency 50/60 Hz Contact form 1NC/1NO Load General load/Micro load Conduit M20Number of conduit: 1 Ambient temperature Operating: -30 to 70 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating frequency 30 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance 100 MΩ min. Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminal of the different polarities: 4 kVBetween each terminal and non-live-metallic part: 6 kV Durability Mechanical: 15,000,000 operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2Malfunction: 300 m/s2 Degree of protection IP67 Classification of protection against electric shock Class II (Double insulation) Operating Force (OF) Standard value 6.5 N max. Release Force (RF) Standard value 1.5 N min. Pre-Travel (PT) Standard value 2 mm max. Movement Differential (MD) Standard value 1 mm max. Over-Travel (OT) Standard value 4 mm min. Operating Position (OP) Standard value 28.6±0.8 mm Total Travel (TT) Reference value 6 mm Direct Opening Force Standard value 20 N min. Direct Opening Travel Standard value 3.2 mm min.

Read more less

Product Details: Product Description Brand Autonics Model Number BM3M-TDT Sensing Type Transmitted beam Sensing Distance 3m Sensing Target Opaque material of min. Ø8mm Response time Max. 1ms Power Supply 12-24VDC ±10%(ripple P-P: max. 10%) current Consumption Max. 45mA Sensitivity adjustment Fixed Operation mode Dark ON Control output PNP open collector Connection type Cable type(Ø4, 2m) Environment  Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment  Ambient temperature -10 to 60℃, storage: -25 to 70℃ Protection structure IP64 Environment Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Approval CE Material Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum Accessories Fixing bracket, Bolts, Nuts Weight Approx. 170g Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Read more less

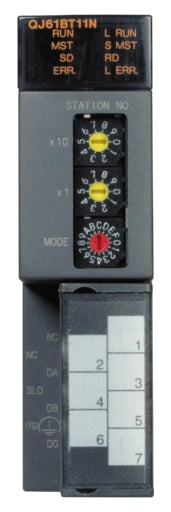

FA-MOD PLC: Network Module Series MELSEC-Q SERIES Type MASTER/LOCAL STATION Network Interface CC-LINK Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 90 Weight (kg) 0,12 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK UKCA COMPLIANT

Read more less

FA-MOD PLC: CPU Module Series MELSEC-Q SERIES Type UNIVERSAL MODEL QCPU Program Memory 30K Program Memory Unit STEPS Local I/O Points 4096 Local + Remote I/O Points 8192 Cycle Time LD (ns) 20 Cycle Time MOV (ns) 40 USB 1 RS-232 1 Buffer Battery YES Int. Current Consumption (A) 0,33 Product Dimensions & Weight Width (mm) 27,4 Height (mm) 98 Depth (mm) 89,3 Weight (kg) 0,18 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA UKCA COMPLIANT

Read more less

Modular stacking type throttle valve, Nominal diameter: â…œ inch, Control port: Port A/B, 25 MPa {250 kgf/cm2} series     MPN:  MT-03W-40Brand   Condition: New Weight:   9.00 Depth:   6.00 Length:   12.00 Width:   12.00 SKU:   41858 4.S8.17.2

Read more less

Item Specifications Control Port Port A Cracking Pressure 0.2 MPa Max Flow Rate 80 L/min Max Pressure 25 MPa Nominal Diameter Rc 3/8

Read more less

Item Specifications Control Port Port A Cracking Pressure 0.2 MPa Max Flow Rate 80 L/min Max Pressure 25 MPa Nominal Diameter Rc 3/8
