Product information Technical Details Manufacturer ‎Autonics Item part number ‎BJ100-DDT-C Product Dimensions ‎91.44 x 60.96 x 91.44 cm; 22.68 g ASIN ‎B00C85YWEU Additional Information Manufacturer Autonics Item Weight 22.7 g Item Dimensions LxWxH 91.4 x 61 x 91.4 Centimeters

Read more less

Product information Technical Details Manufacturer ‎Autonics Item part number ‎BJ100-DDT-C Product Dimensions ‎91.44 x 60.96 x 91.44 cm; 22.68 g ASIN ‎B00C85YWEU Additional Information Manufacturer Autonics Item Weight 22.7 g Item Dimensions LxWxH 91.4 x 61 x 91.4 Centimeters

Read more less

Specification Manufacturer AUTONICS Type of sensor inductive Range 0...5mm Output configuration 2-wire NC Max. operating current 200mA Connection cables Lead length 2m IP rating IP67 Switching frequency max 20Hz Kind of forehead embedded Body dimensions 25x25x39mm Body material plastic Manufacturer series PSN Operating temperature -25...70°C

Read more less

Installation : Flush Sensing side diameter : Ø12mm Sensing distance : 2mm Standard sensing target : 12×12×1mm(iron) Response frequency : 1.5kHz

Read more less

Brand AUTONICS Connector Type Clamp Cable Type Fibre Optic Compatible Devices Amplifier Special Feature Tangle Free

Read more less

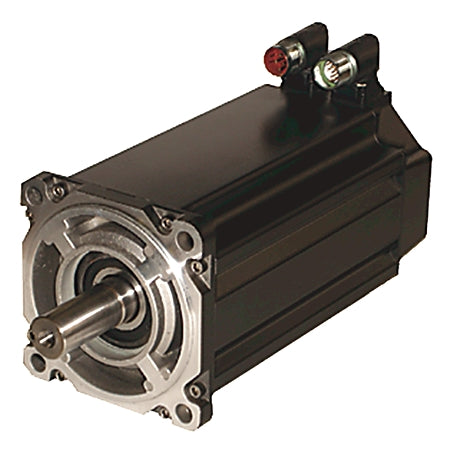

Description The Allen-Bradley MPL-B540K-MJ72AA is a servo motor from the MPL series of low inertial servo motors. Servo motors, typically, are used in motion and position control applications. These application types are generally found in the manufacturing industries, particularly assembly, material handling, and sorting lines. Specific to the MPL-B540K-MJ72AA, this servo motor has a rated speed of 4000 revolution per minute (RPM). It belongs to the 400V voltage class motors with Frame size 5. The motor is installed with a magnetic stack length that measures 101.6 mm or 4.0 inches. Motor connection is made via the provided Circular (SpeedTec) ring angle DIN connector which can be rotated up to 180°. For position feedback, this servo motor comes with a built-in multi-turn encoder. The MPL-B540K-MJ72AA does not have an embedded shaft seal. Shaft seal is an optional kit that is used to prevent entry of process material to the servo motor internal assembly as these material may damage the motor. Additionally, shaft seal increases the inherent IP protection of the motor to IP66. Appropriate shaft seal for the MPL-B540K-MJ72AA is MPL-SSN-F165. Without a shaft seal, the motor’s inherent IP protection falls to IP 50, IP 51 and IP 55, depending on the mounting orientation. The MPL-B540K-MJ72AA is compatible for use with Allen-Bradley Kinetix servo drives such as Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000, and Kinetix 7000. This servo motor is especially compatible for use in Packaging, Converting, Material handling, Electronic assembly, and Automotive applications mostly, Factory Automation applications. The MPL-B540K-MJ72AA servo motor belongs to the 400 Volts AC voltage class and to a category of brushless AC synchronous servo motors. The motor complies with all of the applicable UL/CSA standards and it is CE marked. The MPL-B540K-MJ72AA servo motor has a rated output of 5.4 kilowatts and a rated speed of 4000 rpm. In addition to that, the servo motor has a rotor inertia of 0.00147 kilograms per square meter. The continuous stall torque of the motor is 19.4 N-m, while its peak stall torque is 48.5 N-m. Also, the continuous stall current is 20.5 Amps and the peak stall current is 60 Amps. In regard to feedback, the MPL-B540K-MJ72AA servo motor includes an absolute multi-turn encoder with 128 sin/cos. The included encoder operates through the Hiperface protocol. This motor weighs approximately 15 kilograms (33 pounds) and it features a frame size of 165 millimeters. Besides that, the MPL-B540K-MJ72AA servo motor has a magnet stack length of 101.6 millimeters (4 inches) and its enclosure comes with a shaft key with no shaft seal. The motor does not include a brake function and it is delivered with default factory options.

Read more less

PRODUCT SELECTION Product Type Bulletin MPL - Low-Inertia Brushless Servo Motors Product Voltage (B) 460 V Frame Size (5) 165 mm (6.50 in.) Magnet Stack Length (40) 101.6 mm (4.0 in.) RPM (K) 4000 RPM Feedback (M) Multi-turn High-resolution Encoder (absolute feedback) Enclosure (J) Keyed Shaft Extension Connectors (7) SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect) Brake Option (2) No Brake

Read more less

Lifecycle status:Active

Read more less

Bulletin MPL Low Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 60 = 152.4 mm(6.0 in.), 3000 RPM, Multi turn High resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180 Degrees Rotatable (Quick Connect), No Brake, IEC Metric, Free Mounting Holes (Type FF)

Read more less

Connectors SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect) Type Servo motor

Read more less

Rated Power 400 kW MANUFACTURER Allen Bradley/Rockwell Automation Product Type Servo Drive Safe Torque Off Hardwired EtherNet ports Dual Availability In Stock

Read more less

Brake IGBT Not Included Frequency Rating 50-60 Input Voltage Rating 480V AC Power Factor 0.98 User Interface Integral Keypad; LED Display
