Specifications Model LR-ZB250AN Type Distance based laser sensor Shape Rectangular Output NPN Cable connection 2 m cable Detectable distance 35 to 250 mm (215 to 0)*1 Standard detectable deviation 35 to 180 mm: 9 mm180 to 250 mm: 25 mm Display resolution 1 to 3 (1 to 3 mm) Spot diameter Approx. 2.4 × 1.2 mm at 250 mm Response time 1.5 ms / 10 ms / 50 ms selectable Light source Type Red laser (660 nm) Laser class Class 1 laser product(IEC60825-1, FDA (CDRH) Part1040.10*2) Function Indicator 3-digit 7-segment display (red),output indicator (yellow),DATUM indicator (orange),1 spot indicator (green) Timer OFF/ON delay/OFF delay/One-shot Rating Power voltage 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS Power consumption 450 mW or less (18 mA or less at 24 V, 34 mA or less at 12 V) Specifications Control output NPN Open collector,Applied voltage 30 VDC or less, Control current 100 mA or less,Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA Protection circuit Protection against reverse power connection, output overcurrent, output surge, reverse output connection Output operation Light-ON / Dark-ON selectable External input Input time calibration: 35 ms or more ON, 35 ms or more OFFLaser emission stop: 2 ms or more ON, 20 ms or more OFFShort-circuit current NPN: 1 mA or less/PNP: 2 mA or less Environmental resistance Enclosure rating IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB*3, Diversey*3 Insulation resistance 20 MΩ or more (500 VDC) Ambient light Incandescent lamp: 2,000 lux or lessSunlight: 4,000 lux or less*4 Ambient temperature -10 to +50 °C (No freezing) Relative humidity 35 to 85 % RH (No condensation) Storage temperature -25 to +75 °C (No freezing) Withstand voltage 1,000 VAC, 50/60 Hz, 1 min Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions Material Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating,Packing/Connector ring: FKM Accessories Instruction Manual,Certification/Identification label (FDA) Weight Approx. 110 g (Including cable)

Read more less

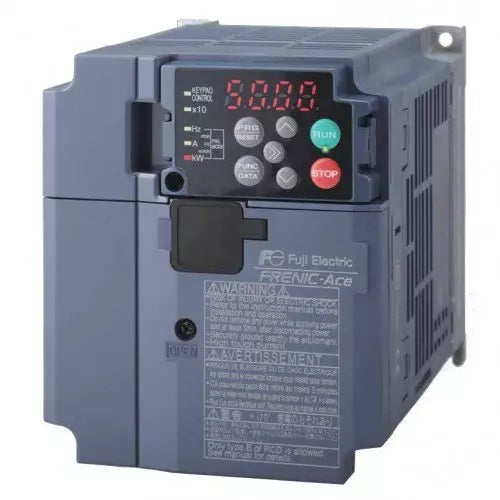

specifications description Power Supply Three Phase Type of Product Electric Inverter Frequency 50-60 Hz Input Voltage 400 VAC Model No FRN0006E2S-4GB Voltage 400V No. of Phases Three Phase Power 2.2KW/3HP Current 5.5 A Country of Origin Japan Supply Voltage 400 V Name of Manufacturer/Packer/Importer Fuji Electric Co Ltd

Read more less

Supply voltage 10 V DC ... 30 V DC Connection type Cable, 3-wire, 2 m Electrical wiring DC 3-wire Switching frequency 600 Hz Availability In Stock

Read more less

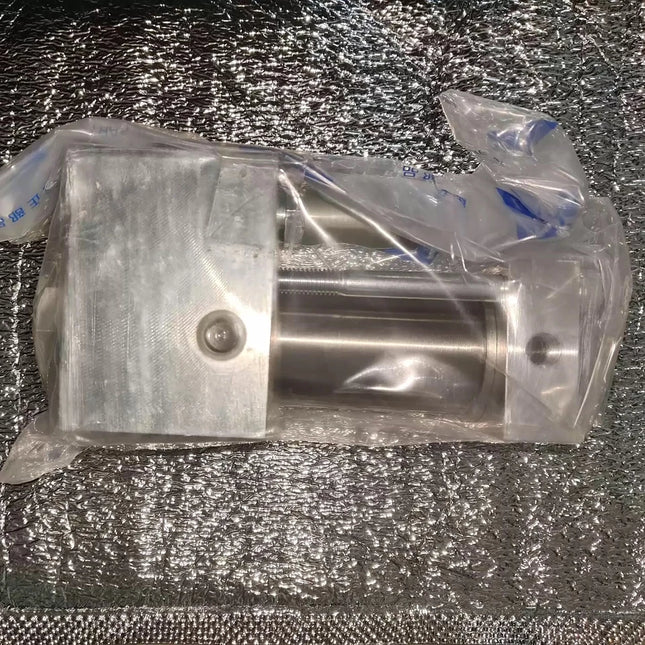

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. Country of Origin Unknown Brand Unbranded Type Valve Model CVV-31B MPN Does not apply Controller Platform Guard PLC UPC Does not apply

Read more less

Max Flow Rate(Litre/Min) 100 LPM Discharge 200LPH Applications Power Steering Type Hydraulic Vane Pump Applicatrion HYDRAULIC Packaging details WOODEN BOX Availability In Stock

Read more less

Part Number 6AV7885-1AE10-1DA8 Manufacturer Siemens Type HMIs Model # 6AV78851AE101DA8 MRO Warranty 2 Year

Read more less

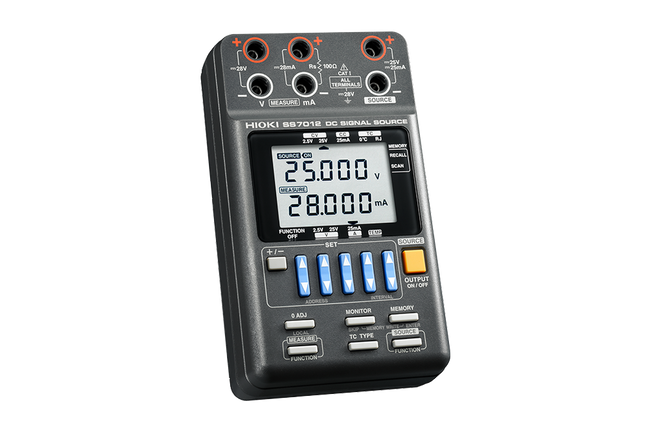

Model Name/Number SS7012 Brand Hioki Display Type Digital Power Source Battery Circuit method Bipolar sink and source Current +-28.000 mA Temperature 80 Degree Celsius Sampling rate Approx. 1.67 times/sec Power Supply 240V, 50 Hz Dimensions 104 mm (4.09 in) W x 180 mm (7.09 in) H x 58 mm (2.28 in) D Weight 660 g Accessories Input cord 9168 x1, Test lead L9170-10 x1, Fuse x1, LR6 (AA) alkaline battery x4, Instru Availability In Stock Discription: The Hioki SS7012 is a compact DC signal source and calibrator that is used to perform maintenance or loop tests of instrumentation systems and can be operated from a computer via a USB cable. It can also be used to calibrate thermometers and measure DC voltage and DC current.

Read more less

Item specifics Condition Used Seller Notes “Fully functional, tested!” Brand Anritsu Country of Origin South Korea

Read more less

Product name SEG.40.15.EX.2.50B Product No 96075910 EAN number 5700394850865 Technical Max. flow 4.17 l/s Max. head 25.8 m Type of impeller GRINDER SYSTEM Primary shaft seal SIC/SIC Approvals PA-I, ATEX Curve tolerance ISO9906:2012 3B2 Materials Pump housing Cast iron EN1561 EN-GJL-200 ASTM A48-30B Impeller Cast iron EN1561 EN-GJL-200 Installation Maximum ambient temperature 40 °C Maximum operating pressure 6 bar Flange standard DIN Pipework connection DN 40/50 Pump outlet DN 40 Pressure rating PN 10 Maximum installation depth 7 m Inst dry/wet SUBMERGED Auto-coupling 96076063 Liquid Liquid temperature range 0 .. 40 °C Selected liquid temperature 20 °C Density 998.2 kg/m³ Electrical data Power input - P1 2.1 kW Rated power - P2 1.5 kW Mains frequency 50 Hz Rated voltage 3 x 400-415 V Voltage tolerance +6/-10 % Max starts per hour 30 Rated current 4 A Starting current 21 A Rated current at no load 2.2 A Cos phi - power factor 0.87 Cos phi - p.f. at 3/4 load 0.79 Cos phi - p.f. at 1/2 load 0.66 Rated speed 2700 rpm Moment of inertia 0.004 kg m² Motor efficiency at full load 72 % Motor efficiency at 3/4 load 73 % Motor efficiency at 1/2 load 69 % Number of poles 2 Start. method direct-on-line Enclosure class (IEC 34-5) IP68 Insulation class (IEC 85) F Explosion proof yes Ex-description II 2 G EX DB IIB T4/T3 GB Explosion protection standard EN 60079-0/EN 60079-1 Built-in motor protection THERMAL SWITCH Thermal protec external Length of cable 10 m Cable type LYNIFLEX Type of cable plug No plug Controls Control box not included Additional I/O External Moisture sensor without moisture sensors AUTOADAPT No

Read more less

Manufacturer CELDUC Type of relay solid state Control voltage 17...30V AC, 17...30V DC Max. operating current 35A Switched voltage 24...600V AC Relay variant 2-phase Switching method(the position in bracket indicates momentary position.) zero voltage switching Body dimensions 44.8x59.4x30mm IP rating IP20 Manufacturer series SOB Leads 4pin, screw terminals Related items 1Y042715 Operating temperature -55...100°C

Read more less

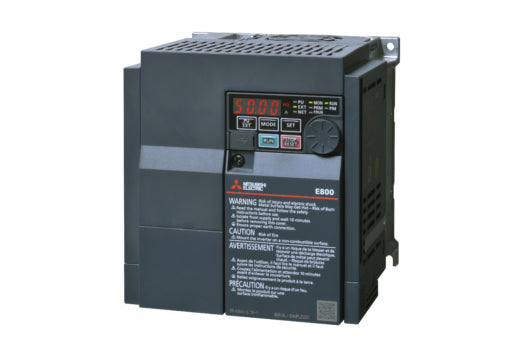

FA-Inverter: Inverter Series FR-E800 SERIES Type FR-E800 RS485 INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 323 Maximum Rated Voltage (V) 480 Max. Permissible Voltage (V) 528 Current Type AC Phases 3 Rated Output Current LD (A) 11,1 Rated Output Current ND (A) 9,5 Rated Motor Capacity LD (kW) 5,5 Rated Motor Capacity ND (kW) 3,7 Frequency Range (Hz) 0,2–590 Control Method V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL Motor Type INDUCTION MOTOR, PM MOTOR Brake Chopper ED (%) 100 Integrated EMC Filter NO Safe Torque Off (STO) YES Regenerative (4Q) NO Integrated DC Choke NO Display BUILT-IN Display Type 4 DIGITS LED PLC Function YES Program Memory 2K Program Memory Unit STEPS Integrated Digital Inputs 7 Digital Outputs (Transistor) 2 Digital Outputs (Relay) 1 Integrated Analogue Inputs 2 Integrated Analogue Outputs 1 IO Type of Terminal Block SPRING CLAMP Expandable YES RS-485 1 USB 1 (MINI B) Ethernet Port NO Built-In Network MODBUS-RTU Leakage Current (mA) 1,2 Power Loss LD (W) 136 Power Loss ND (W) 112 Protection Class IP20 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC COMPLIANT UKCA COMPLIANT Product Dimensions & Weight Width (mm) 140 Height (mm) 150 Depth (mm) 135 Weight (kg) 1,8 Life Cycle Predecessor 240984 Serial No. on the Box QR1 Campaigns Selling Status Standard Product Packaging Cardboard (g) 315 Other paper (g) 17 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 5 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

Brand Name Selec Model Selec Flexys Rail FL-SC-RO08-CE-RoHS Usage Application Industrial Model No FL-SC-RO08-CE-RoHS Type 1 Selec Flexys Rail Availability In Stock
