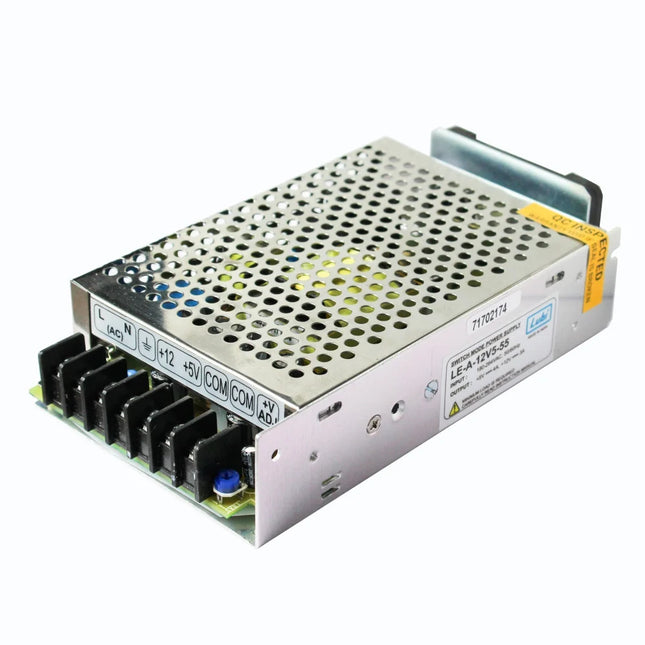

Country of Origin Made in India Model No SMPS Power Supply 20amp 12V Stock Ready Stock Delivery All India Delivery Available Voltage Available 12V , 24V , 220V , 110V Availability In Stock

Read more less

Power rating 15 W Output voltage 5 VDC Efficiency 76 % typ. (at 100 VAC input)76 % typ. (at 200 VAC input) Input Rated input voltage 100 to 240 VAC Allowable input voltage variable range 85 to 264 VAC (Single-phase)90 to 350 VDC Frequency 50/60Hz (47 to 450 Hz) Rated input current 0.35 A typ. (at 100 VAC input)0.25 A typ. (at 200 VAC input) Leakage current 0.5 mA max. (at 100 VAC input)1.0 mA max. (at 200 VAC input) Inrush current (cold start at 25 ℃) 16 A typ. (at 100 VAC input)32 A typ. (at 200 VAC input) Output Rated output current 3 A Output voltage variable range -10 to +15 % With V.ADJ Maximum peak current 3.6 A Ripple 60 mV(p-p) max. at 20 MHz Static input variation influence 0.4 % max. Static load variation influence 0.8 % max. Ambient temperature variation influence 0.05 %/℃ max. Start up time 600 ms typ. (at 100 VAC input)400 ms typ. (at 200 VAC input) Hold time 20 ms typ. (at 100 VAC input)100 ms typ. (at 200 VAC input) Additional functions Overload protection Yes, automatic reset Overvoltage protection Yes, Shut off the input voltage and turn on the input again Series operation Yes (Up to 2 Power Supplies with external diode) Parallel operation Yes (Up to 2 Power Supplies) Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage) Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mABetween all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mABetween all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours Shock resistance 150 m/s2, in each 6 directions 3 times Ambient temperature (Operating) -40 to 70 ℃ (with no freezing or condensation) Ambient temperature (Storage) -40 to 85 ℃ (with no freezing or condensation) Ambient humidity (Operating) 95 %RH max. Ambient humidity (Storage) 95 %RH max. Reliability MTBF 135,000 hours min. Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting) Construction Construction Covered type Connection Terminal blocks Terminal type Rod terminal Mounting DIN track mounting Cooling fan Cooling fan No Degree of protection IP20, EN/IEC 60529 Weight (Main) 150 g max. Note Do not use the Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.

Read more less

Product Attributes Type Description Select All Category Power Supplies - External/Internal (Off-Board) Industrial, DIN Rail Power Supplies Manufacturer Omron Automation and Safety Series S8VK-G (60W) Packaging Box Part Status Active Input Type AC Number of Outputs 1 AC Voltage - Input 85 ~ 264 VAC Voltage - Output 1 12V Voltage - Output 2 - Voltage - Output 3 - Voltage - Output 4 - Voltage - Output 5 - Voltage - Output 6 - Current - Output (Max) 5A Power (Watts) 60W Voltage - Isolation 3 kV Applications ITE (Commercial) Efficiency 85% Operating Temperature -40°C ~ 75°C (With Derating) Features Adjustable Output, Load Sharing, Universal Input Size / Dimension 3.54" L x 1.26" W x 3.54" H (90.0mm x 32.0mm x 90.0mm) Approval Agency CE, cULus, cURus, VDE Minimum Load Required - Base Product Number S8VK-G060

Read more less

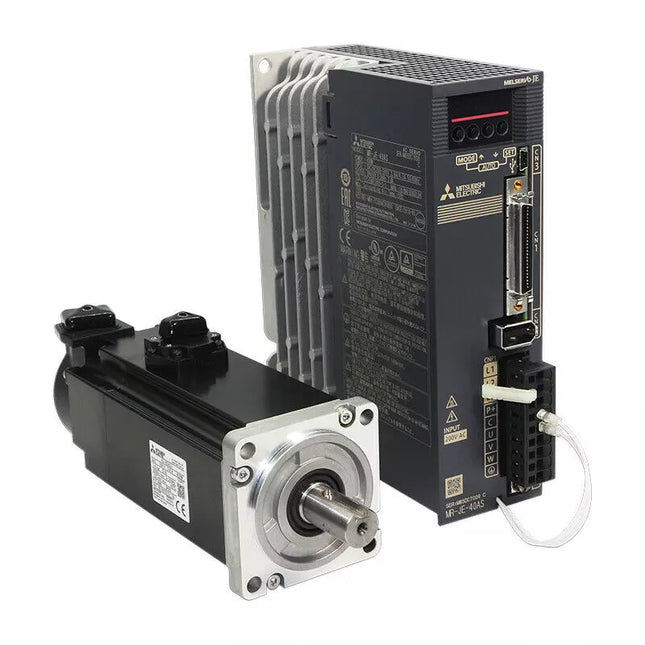

specifications Type of Product Servo Drive Power Supply 220V Model No MR-JE-40AS Phase 3 Protection Class IP65 Frequency 50 to 60 Hz Size 6x16.8cm Rated Speed 3000RPM

Read more less

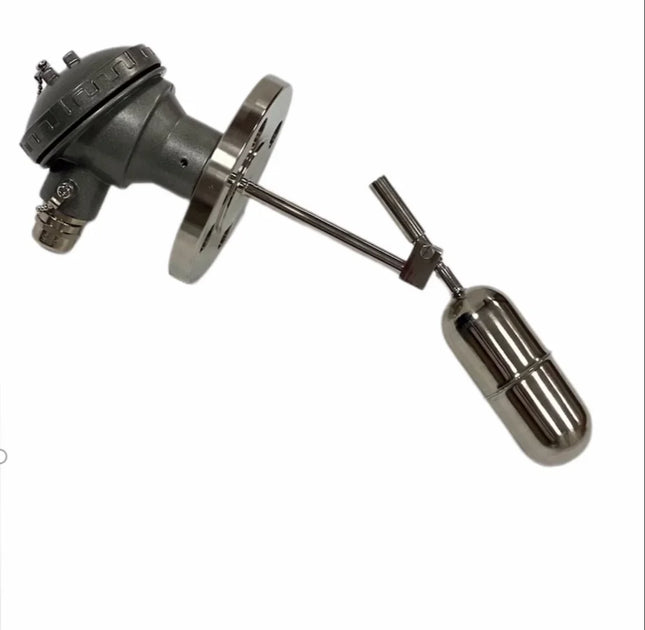

Float Sensor Fuel Mounting Type Magnetic Mount Usage/Application Liquid Level Measurement Country of Origin Made in India Availability In Stock Multifloat level switch available to neasure the level at different pointSS 316 Float, Size: Dia. 28 mm x 28 mm, Max Temp: 120degree cent , Steam : SS 304, Specify Rod length andswitching points from the bottom of flangeMounting : Screwed or flangedSuitable for clear liquids having specific gravity: 0.7 to 1Contact rating : 30 VA, 240 VAC MaxContact Form : SPST for each levelTermination Head : Cast Al or DIN Connector

Read more less

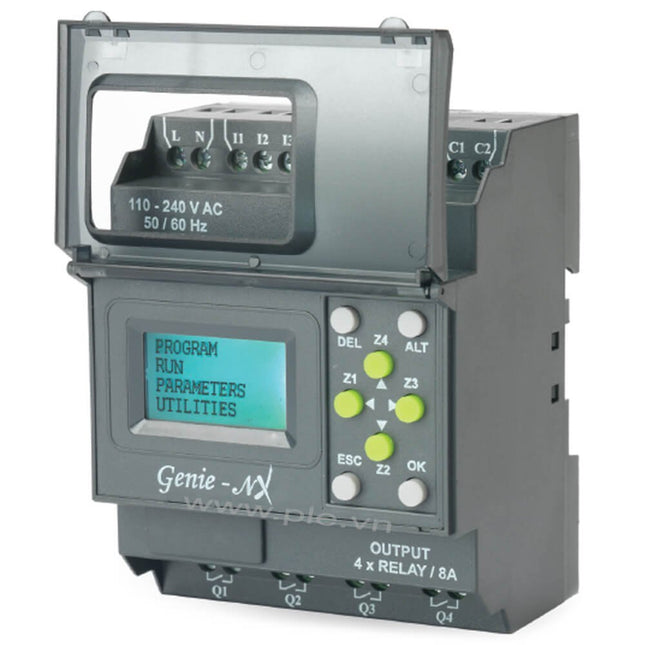

Model Name/Number G7DDT10 Usage/Application Industrial Brand GIC Genie Color Grey Shape Rectangle Supply Voltage 240 VAC Supply Variation +10% Frequency 60 Hz Power Consumption 5W Digital Input 8 Contact Rating 8A Utilization Category 220V Modbus Communication Yes Compare Counters 16 Hour Meter 4 Availability In Stock • Supports up to 48 I/Os (32 Digital Inputs & 16 Digital Outputs) • 250 lines of ladder programming • 16 soft text messages, Time Switches, Compare Counters, Timers, Counters & 12 Analog functions, 4 Hour Meters • DST Feature Available• Backlit LCD Screen for display & modification of pre-selected parameters of functional blocks, viewing I/O status and programming on the device • PC software for programming, online & offline simulation, documentation & printing • Designed for use in automation for commercial & Industrial sectors

Read more less

Based on your query, here are the top possible Schneider Electric recommendations that might suit your needs: LC1E0910M7 This is an Easy TeSys contactor model LC1E with 3 poles, rated for 9A and 220V AC coil. (This product fully matches your request: model-lc1e0910m7-easy tesys)

Read more less

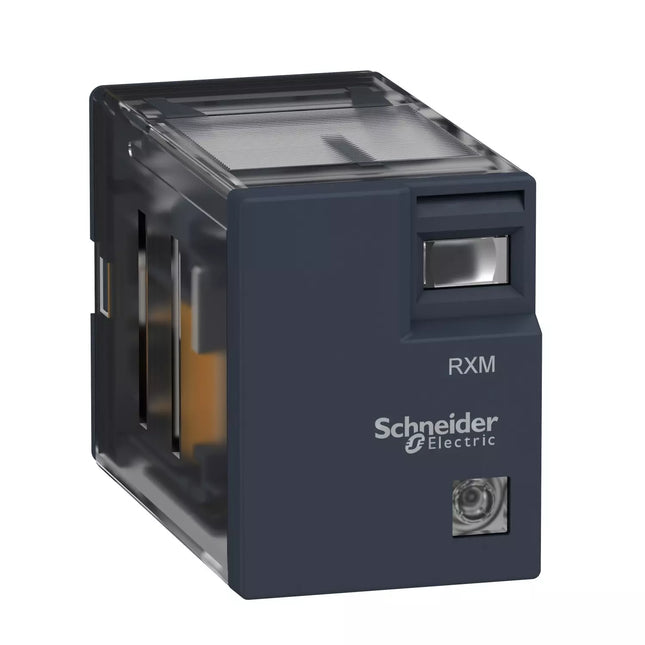

specifications description Type of Product Miniature Plug-in Relay Model No RXM2LB2BD Current 5 A Voltage 24 VDC Country of Origin India Weight 33.0 g Controls Type Without Push-Button Range Name Harmony Electromechanical Relays Dimension 4.5x2.5x2 cm Standard EN/IEC 61810-1 (iss. 2), CE Contacts Type and Composition 2 C/O Depth 46mm Name of Manufacturer/Packer/Importer Schneider Electric

Read more less

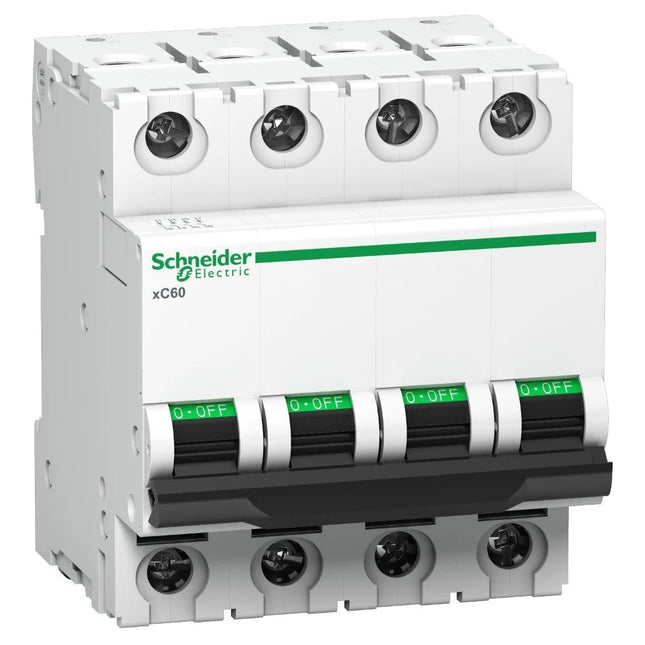

Number of Poles 4 Pole Rated Current 63A Curve Type C Curve Country of Origin Made in India Model Schneider A9N4P63C Availability In Stock Brand: SchneiderBreaking Capacity:10kACategory: MCBCurrent Rating:63AmpsNo. of Poles:4Polesearchfilter:SwitchgearsType of Curve:CType:AC

Read more less

Brand Schneider Electric Current Rating 40 Amps Product Dimensions 12D x 12W x 5H Centimeters Circuit Breaker Type MCB Mounting Type DIN Rail Mount About this item White Color Plastic body material Miniature Circuit Breaker protect against Short Circuit and Overloads and keeps your property safe. This product is compatible for lighting loads,Such as bulb, heater etc DIN Rail Mounted W 72mm x H 85mm x D 77.5mm Green Premium Product - Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products.

Read more less

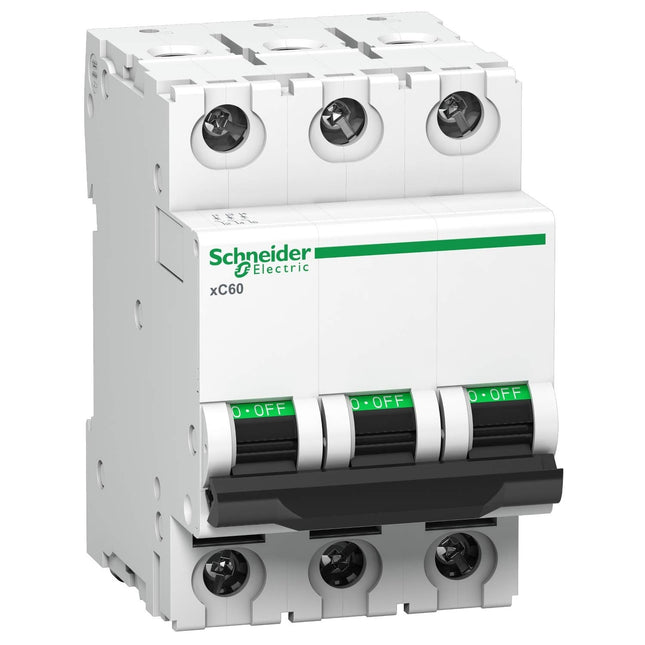

Brand Schneider Electric Current Rating 16 Amps Circuit Breaker Type Attribute not aplicable for product Number Of Poles 3 Manufacturer Schneider Electric, Schneider Electric About this item Schneider Electric A9N3P16C Acti 9 MCB xC60 3P 16A C 10000A

Read more less

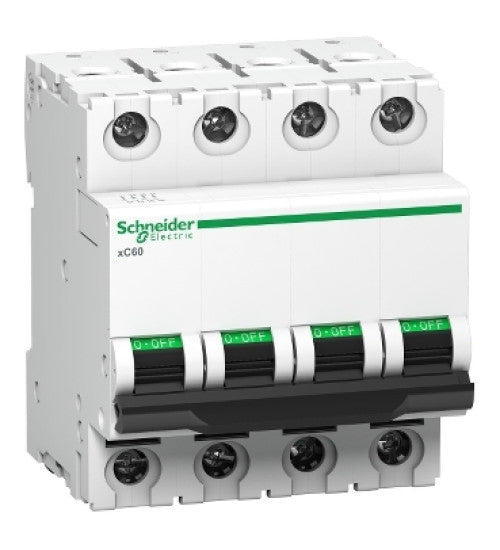

Schneider A9N4P04C MCB Technical Specification MCB Breaking Cap Curve C Model xC60 No of pole 4P Rating 4A
