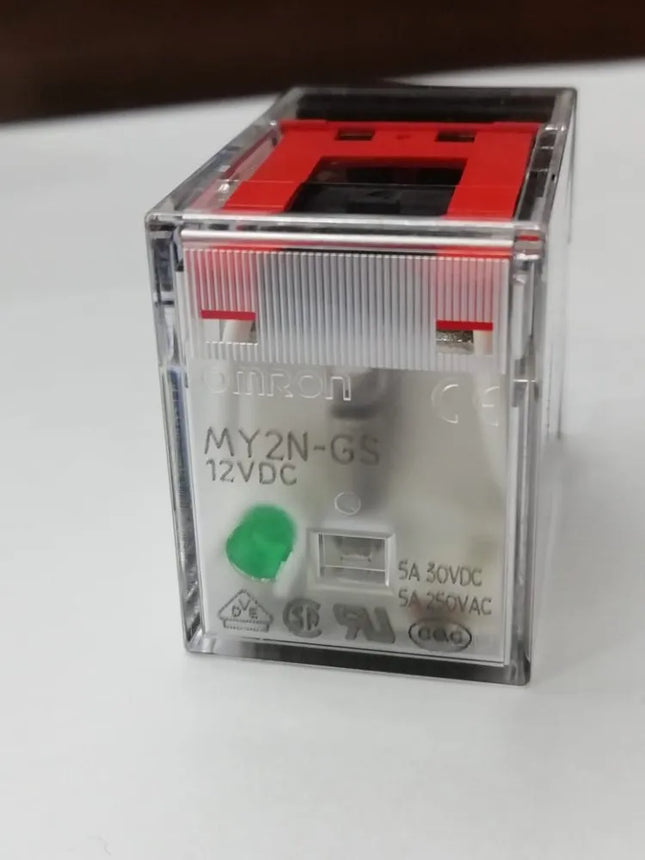

Brand Omron Usage/Application Control Panels Voltage Glass, Plastic Mounting Type Din Rail Voltage Type DC Type Voltage Relays Model Name/Number MY2N-GS Current 5A Relay Type General Purpose Relays Coil Voltage 12VDC Availability In Stock

Read more less

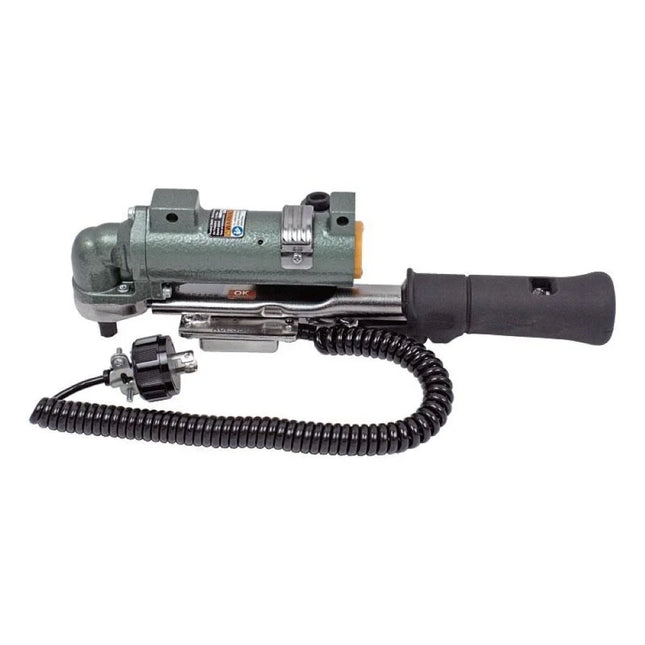

Drive Size 3/8 Inch Brand TOHNICHI Type Of Product High Power Semi-Automatic Airtork with Limit Switch Model Name/Number ACLS50N3 Dimensions 57 x 140 x 33 in Max Torque Min.- Max. : 10-50 Square Drive 3/8" Weight 4.06lbs Availability In Stock View in Hindi टोहनिची हाई पावर सेमी-ऑटोमैटिक एयरटॉर्क लिमिट स्विच एसीएलएस50एन3 के साथ IMP Industrial Technologies - Wholesale Trader of Air Impact Wrench, Air Grinder and  Air saw since 2023 in Ahmedabad, Gujarat.

Read more less

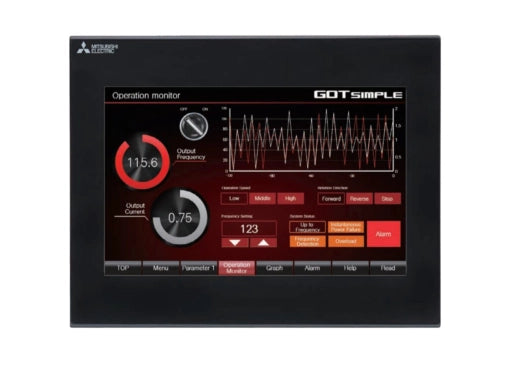

FA-HMI: Human Machine Interface Series GOT SIMPLE SERIES Type GS21 MODEL Display TFT Display Colour 65536 Display Size (Inch) 10 Resolution (Pixels) 800X480 Power Supply (V) 24 Current Type DC Protection Class IP65F Internal Memory Capacity (MB) 15 Memory Card Slot SD USB 1 Ethernet Port 1 RS-232 1 RS-422/485 1 Network Options MODBUS, CCLINK, ETHERNET Product Dimensions & Weight Width (mm) 272 Height (mm) 214 Depth (mm) 56 Weight (kg) 1,3 Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals NON-COMPLIANT UKCA COMPLIANT

Read more less

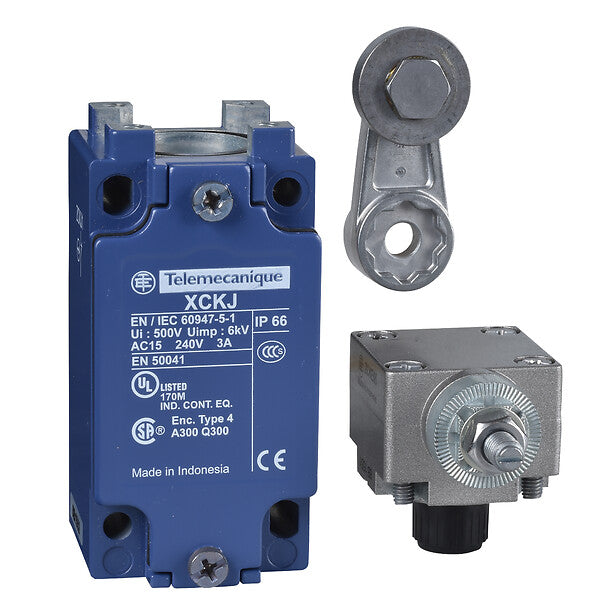

XCKJ10513H29 Limit switch, XC Standard, XCKJ, steel roller lever, 1NC+1 NO, snap action, M20 Commercialised

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Lumberg Automation Product Category: Sensor Cables / Actuator Cables Connector End A: M12 Connector End A Pin Count: 5 Position Connector End B: No Connector Gender: Female Cable Length: 5 m (16.404 ft) Current Rating: 12 A Voltage Rating: 30 V Jacket Colour: Black Brand: Lumberg Automation Jacket Material: Polyurethane (PUR) Product Type: Sensor Cables / Actuator Cables 1 Subcategory: Cable Assemblies Part # Aliases: 600003894

Read more less

Type Description Select All Category Motors, Actuators, Solenoids and Drivers Motors - AC, DC Manufacturer Delta Electronics/Industrial Automation Series ECMA Packaging Box Part Status Obsolete Type AC Motor Function Servomotor Motor Type - Voltage - Rated 220VAC RPM 2000 RPM Torque - Rated (oz-in / mNm) 1014 / 7160 Power - Rated 1.5kW Encoder Type Incremental Size / Dimension Square - 5.118" x 5.118" (130.00mm x 130.00mm) Diameter - Shaft 0.866" (22.00mm) Length - Shaft and Bearing 2.165" (55.00mm) Mounting Hole Spacing 5.709" (145.00mm) Termination Style Cable with Connector Features Key, Oil Seal Gear Reduction Ratio - Torque - Max Momentary (oz-in / mNm) 3042 / 21480 Operating Temperature 0°C ~ 40°C Approval Agency CE, cURus Base Product Number ECMA-E

Read more less

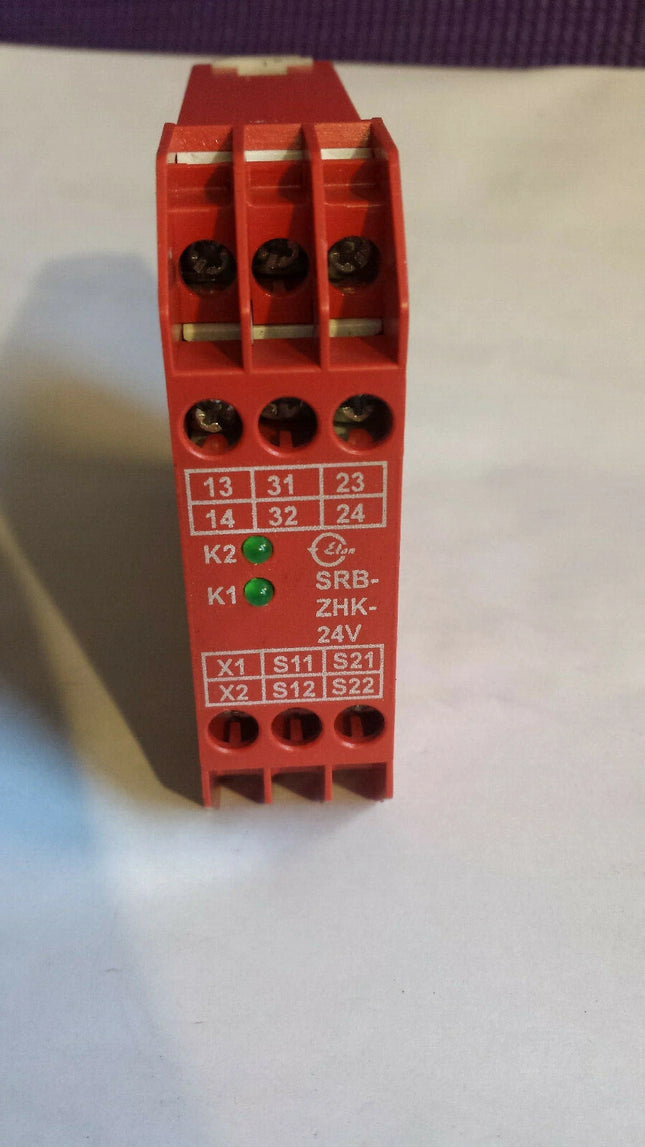

Item specifics Condition Used Country of Origin Germany Model SRB-ZHK-24V Controller Platform RELAY Type RELAY MPN SRB-ZHK-24V Brand Schmersal Elan UPC Does not apply

Read more less

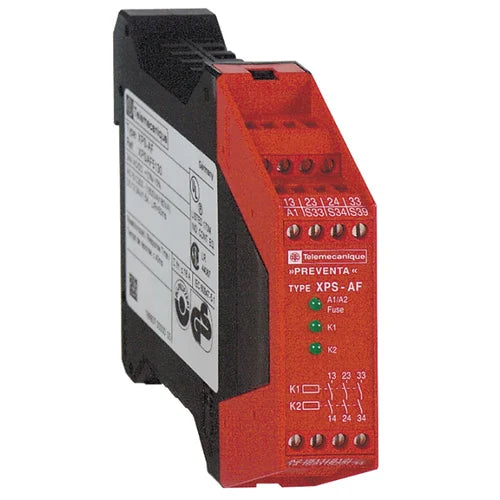

Current Rating 2.5A Voltage Type AC Model Name/Number XPSAF5130 Brand Name Schneider Frequency 50Hz Voltage 220V Pack Type Box Driven by a vision to achieve significant growth in this industry, we are providing a premium quality XPSAF5130 Schneider Preventa Safety Module. This service is carried out by our skilled professionals using the best grade tools and latest technology. The provided service is performed as per the variegated demands of our precious clients. Before executing this service, our experts check all the parameters and perform it in the best manner. Moreover, we offer this service to our clients at budget-friendly prices.

Read more less

Industrial Ethernet Switching Hub DEH-GTX8C This is 8-port Gigabit Industrial Ethernet Switch with a high reliability and quality. Feature Vertical two rows of network port to save space Supports 12～36VDC wide range power input and Power polarity reverse protection Supports Wide operating temperature between -25～70℃ Provides compact chassis and Corresponds to DIN-rail Supports 4000VDC ESD protection, 2000VDC surge protection Supports Auto MDI/MDI-X, Jumbo frame transmission, Store-and-forward

Read more less

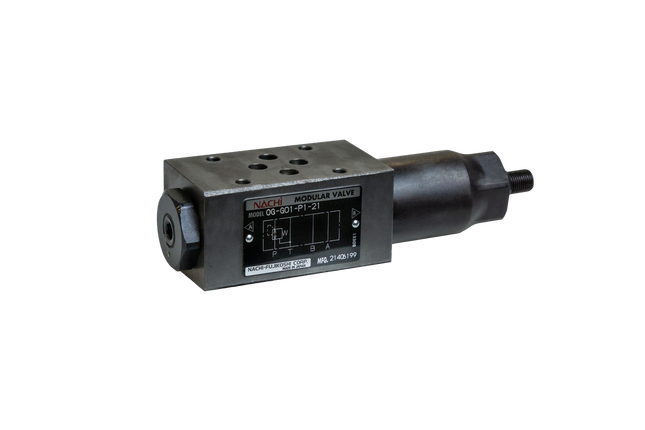

Description: Pressure Reducing Modular Valve The Pressure Reducing Modular Valve makes the pressure in part of the circuit lower than that of the main circuit. Even when pressure changes in the main circuit, the reduced secondary pressure is maintained at a constant level. Features: Spec Value Model OG Mounting Method G: Gasket type Diameter 01 Control Port B: B Port Pressure Adj Range* 1 Auxiliary Symbol N/A Design Number 21: (01 Size) Weight (lb/kg) 2.9 / 1.3

Read more less

FT-AL05  Array Type Fiber Head  ● Sensing Width : 5.5mm,  ● Thru-beam Type  ● Bending Radius : R2  ● Fiber Length 2m, Product category Fiber Sensor sub-category Fiber Head Partner name Panasonic Series name Wide Beam Fiber Attributes Type Thru-beam Fiber Head Shape Rectangular Bending Radius R2 Connection Type Fixed Cable, 2m Protection IP40

Read more less

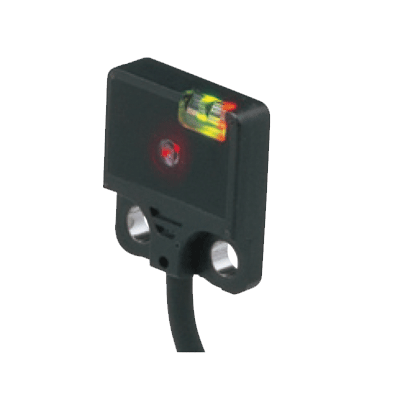

Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number EX-21B Part Number EX-21B Products Name Ultra-compact Photoelectric Sensor Product details Thru-beam[Front sensing] The price of the product Please contact our office Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL Recognition certification Sensing range 1 m 3.281 ft Sensing object Min. dia. 2.6 mm dia. 0.102 in opaque object (Setting distance between emitter and receiver: 1 m 3.281 ft) Hysteresis - Repeatability(perpendicular to sensing axis) 0.05 mm 0.002 in or less Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less Current consumption Emitter: 10 mA or lessReceiver: 10 mA or less Output NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) Output:Utilization category DC-12 or DC-13 Output:Short-circuit protection Incorporated Response time 0.5 ms or less Operation indicator Orange LED (lights up when the output is ON) (located on the receiver) Stability indicator Green LED (lights up under stable light received condition or stable dark condition), located on the receiver Sensitivity adjuster - Operation mode switch - Protection IP67 (IEC) Ambient temperature -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each Emitting element Red LED (modulated) Emitting element:Peak emission wavelength 640 nm 0.025 mil Material Enclosure: Polyethylene terephthalateLens: Polyalylate Cable 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long Cable extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable (both emitter and receiver). Weight Net weight (each emitter and receiver): 20 g approxGross weight: 60 g approx Accessory -
