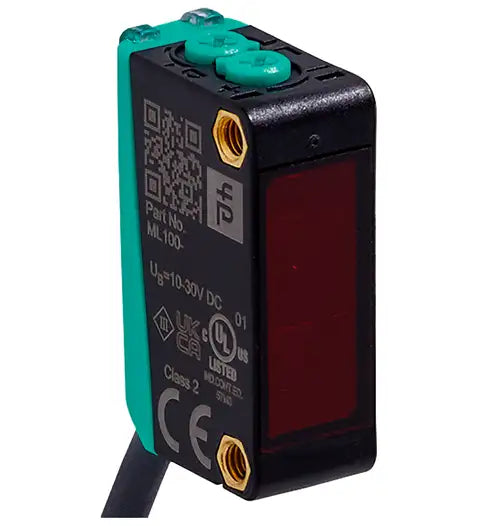

Key Benefits at a Glance Miniature design Easy to use Very bright, highly visible light spot Full metal thread mounting Highly visible LEDs for Power ON and switching state Not sensitive to ambient light

Read more less

CV-D Out2 CV-D Out2, Transducer Vdc Code: M25062.  Output type: 2  Analog output: 4…20mA  Measure: 10 Vdc  Paramètre: Vdc

Read more less

CV-D Out1,3 CV-D Out1,3, Transducer Vdc Code: M25061.  Output type: 1, 3  Analog output: 0…20mA  Measure: 10 Vdc  Paramètre: Vdc SPECIFICATIONS AC power supply Nominal voltage 24/115/230/400 Vca (-15…+20%) Frequency 40…90 Hz Consumption 2,5 VA DC power supply Nominal voltage 9-18 / 18-36 Vdc 36-72 / 90-140 Vdc Consumption 2,5 VA DC power supply, insulation Test voltage (kV) 2 kV RMS 50Hz 1 min Pulse test (kV) 3 kV (1,2/50µs) Voltage measurement circuit Nominal voltage 10 mV…500 Vca Voltage measuring range 0…120 % Vn Input impedance 10000 Ω/V Maximum permanent measurement voltage 150 % Vn Measurement accuracy Phase current measurement 0,2 % FS Analogue outputs Displaced output 0,2…2 V / 2…10 V / 4…20 mA Current mode, nominal range 0…20 mA Voltage mode: nominal output range 0…5, 10 Vac Analogue inputs Load impedance in voltage > 500 Ω Load impedance in current < 500 Ω Response time < 100 ms (0…99 % Vn) Ripple (effective RMS value) < 0,5 %

Read more less

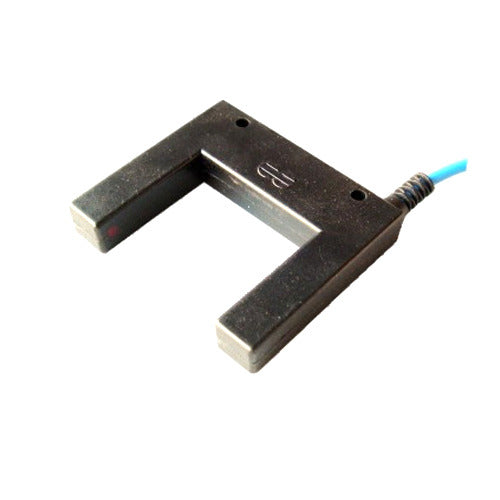

Brand Electronic Switches Material ABS Plastic Color Black Model Name/Number IFS-501-NPN Dimension 70 x 80 x 15 mm Sensitivity Adjustment Provided Slot Depth 45 mm Slot Width 50 mm Output Indications Through LEDs Output PNP or NPN and NO or NC Selectable Power Supply 12 - 24 Volts DC Availability In Stock Other Details: MODELS 1. Model :IFS 501/2 : Output - NPN NO / NC Selectable 2. Model :IFS 503/4 : Output - PNP NO / NC Selectable Electronic Switches (I) P. Ltd; offers Fork / Slot Sensor with 50mm slot width. Units operates on 10 - 30 V DC supply. Sensitivity adjustment pot provided for adjusting the sensitivity of the sensor.

Read more less

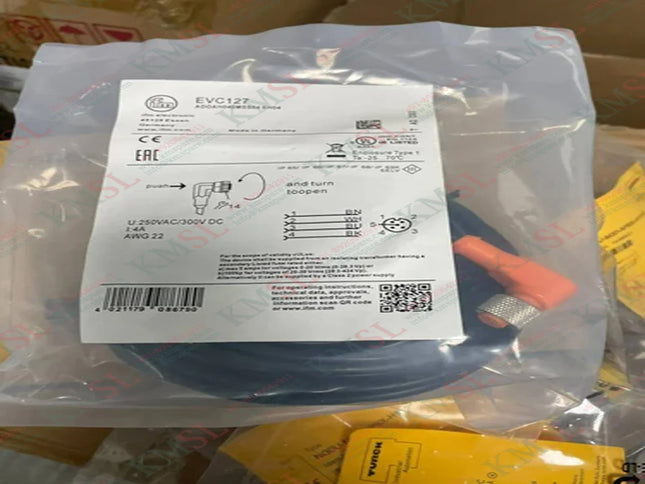

Quality / Material Brass Color Orange Connector Type Straight Material Plastic Model Name/Number EVC127 Length 5 m Voltage 50 AC Weight 171.8 Temperature -25...80 Power/Voltage 50 AC Inner Material PVC I Deal In New Only Model No. EVC127 Brand IFM For use in hygienic and wet areas in the food industry Permanent, reliable sealing even when mounted without tools Large operating temperature range and high protection rating Vibration and shock resistant thanks to coupling ring with locking mechanism Mechanical end stop to protect the O-ring from destruction

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Honeywell Product Category: General Purpose Relays RoHS:   Product: Power Relays Type: Cube Coil Voltage: 220 VAC Relay Contact Form: 4 Form C (4PDT-NO, NC) Contact Current Rating: 3 A Contact Termination: Plug In Mounting Style: Panel Mount Switching Voltage: 250 VAC, 125 VDC Coil Termination: Plug In Coil Type: Non-Latching Coil Resistance: 12.9 kOhms Coil Current: 5.8 mA Contact Material: Silver Cadmium Oxide (AgCdO) Series: SZR-MY Length: 28 mm Width: 21.5 mm Height: 36 mm Brand: Honeywell Contact Form: 4PDT (4 Form C) Power Consumption: 1.1 W Product Type: General Purpose Relays 50 Subcategory: Relays Unit Weight: 65 g

Read more less

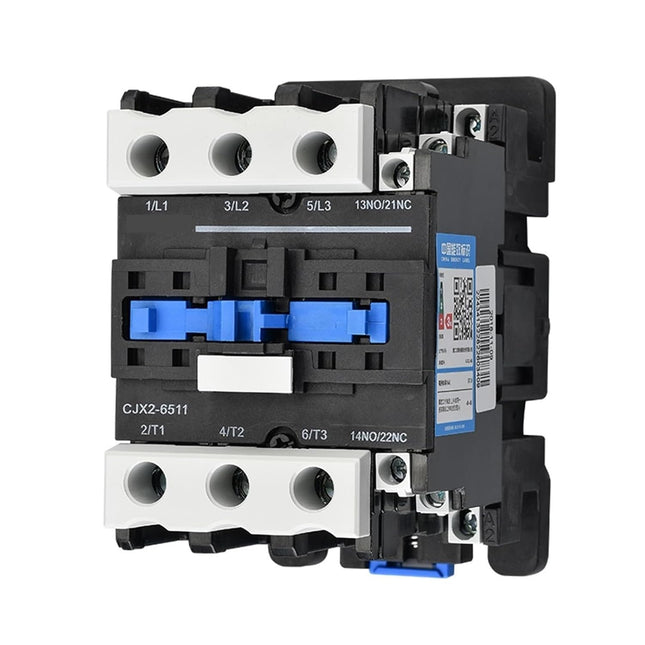

Colour: CJX2-6511 Size: 220V Thermal Circuit Breakers

Read more less

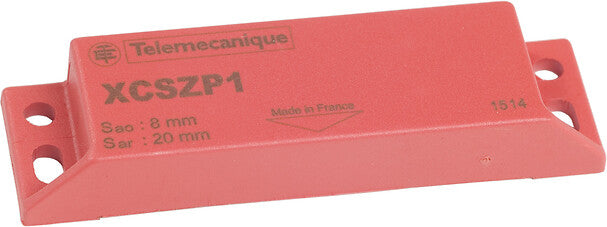

Range of product Telemecanique Safety switches XCS Accessory / separate part category Spare parts Accessory / separate part type Coded magnet Accessory / separate part designation Additional coded magnet Accessory / separate part destination Coded magnetic switch

Read more less

Specifications Manufacturer : TOCOS Model : RV24YN20S B501 Type of potentiometer : shaft Resistance : 500kΩ Power : 400mW Tolerance : ±10% Shaft diameter : 6mm Shaft length : 20mm Characteristics : linear Track material : carbon Mechanical rotation angle : 300° Voltage Rating : 350V Operating temperature : -10…85°C Electrical rotation angle : 280° Body dimensions : 40x38mm Weight : 50g

Read more less

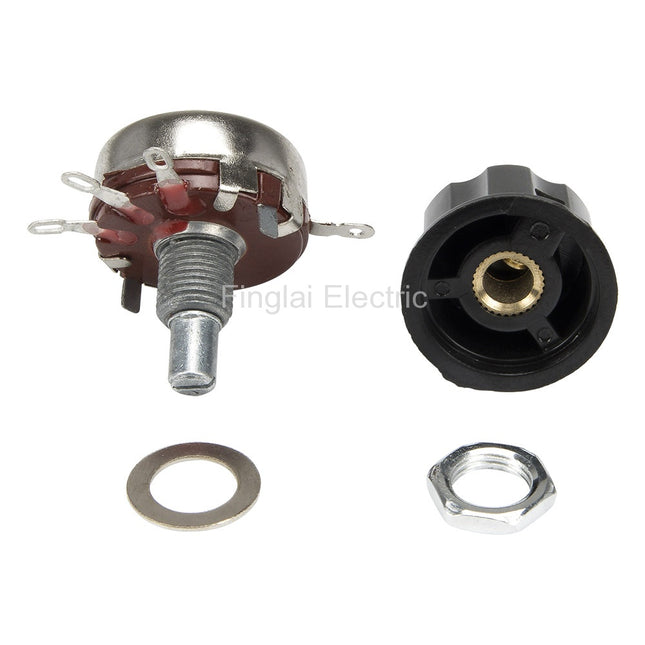

Product description ▇ Model number and description Model number Remark Online store:             This site            Aliexpress            Ebay            Amazon           WTH118-1A 2W resistance 1k 2K2 4K7 10K 470K 220K 330K 1M Visiting... ▇ WTH118-1A potentiometer model number legend WTH118-1A Parent Model Number -4.7K Resistance -1K: 1K -2.2K: 2.2K -4.7K: 4.7K -10K: 10K -22K: 22K -47K: 47K -100K: 100K -150K: 150K -220K: 220K -330K: 330K -470K: 470K -1M: 1M 2W Rated Power 2W: 2W 2WS: 2W with scale plate

Read more less

Material Plastic Usage/Application Industrial Power/Voltage 220 V Cable Length 2 M Country of Origin Made in India Availability In Stock
