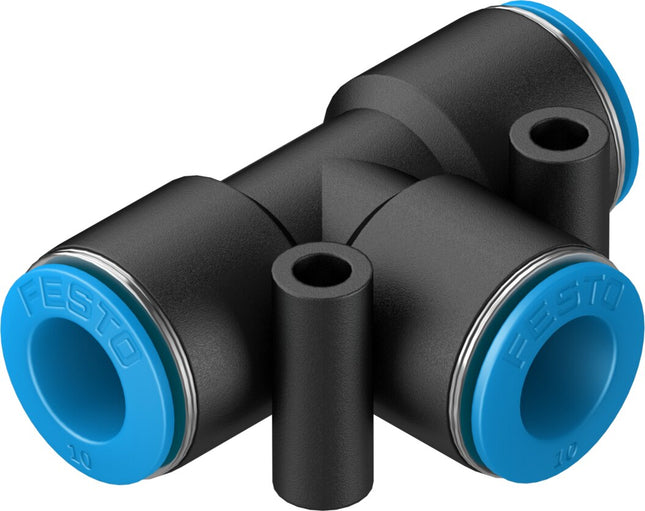

Pneumatic connection, port 1 For tubing outer diameter of 10 mm Pneumatic connection, port 2 For tubing outside diameter of 10 mm Temperature-dependent operating pressure -0.95 bar - 14 bar Ambient temperature -10 °C - 80 °C Nominal size 8.1 mm SizeStandard Nominal size8.1 mm Mounting positionoptional DesignT-shape Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa Operating pressure complete temperature range-0.95 bar ... 6 bar Operating pressure complete temperature range-13.775 psi ... 87 psi Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure-0.95 bar ... 14 bar Temperature-dependent operating pressure-13.775 psi ... 203 psi Note on operating pressureWater: max. 0.6 MPa at max. 50°C Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 Ambient temperature-10 °C ... 80 °C Product weight25 g Number of outputs2 Number of supply lines1 Pneumatic connection, port 1For tubing outer diameter of 10 mm Pneumatic connection, port 2For tubing outside diameter of 10 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingPBT Material release ringPOM Material tubing sealNBR Material tubing clamp componentHigh-alloy stainless steel

Read more less

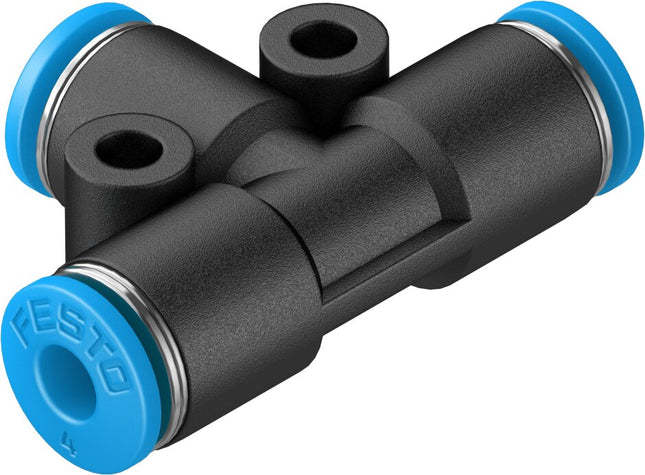

Pneumatic connection, port 1 For tubing outer diameter of 4 mm Pneumatic connection, port 2 For tubing outside diameter of 4 mm Temperature-dependent operating pressure -0.95 bar - 14 bar Ambient temperature -10 °C - 80 °C Nominal size 2.8 mm SizeStandard Nominal size2.8 mm Mounting positionoptional DesignT-shape Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa Operating pressure complete temperature range-0.95 bar ... 6 bar Operating pressure complete temperature range-13.775 psi ... 87 psi Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure-0.95 bar ... 14 bar Temperature-dependent operating pressure-13.775 psi ... 203 psi Note on operating pressureWater: max. 0.6 MPa at max. 50°C Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 Ambient temperature-10 °C ... 80 °C Product weight7.5 g Number of outputs2 Number of supply lines1 Pneumatic connection, port 1For tubing outer diameter of 4 mm Pneumatic connection, port 2For tubing outside diameter of 4 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingPBT Material release ringPOM Material tubing sealNBR Material tubing clamp componentHigh-alloy stainless steel

Read more less

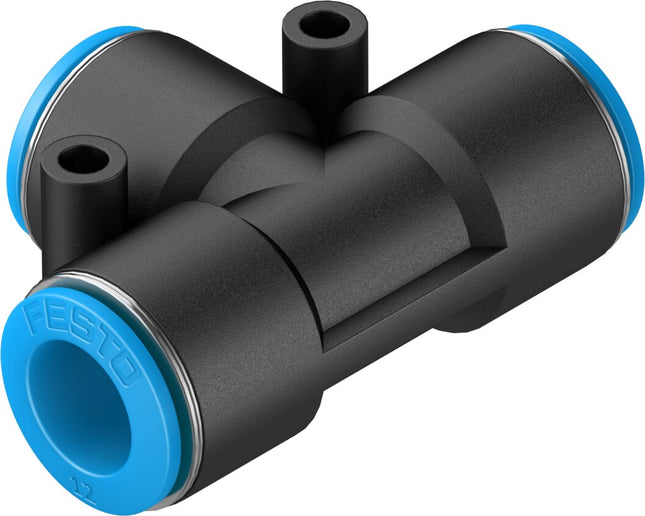

Pneumatic connection, port 1 For tubing outer diameter of 12 mm Pneumatic connection, port 2 For tubing outer diameter of 12 mm Temperature-dependent operating pressure -0.95 bar - 14 bar Ambient temperature -10 °C - 80 °C Nominal size 10 mm

Read more less

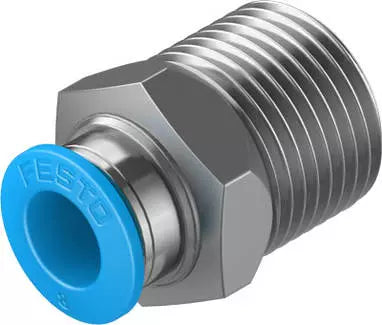

specifications description Product Title Push-in fitting Part No 153006 Model No QS-3/8-8

Read more less

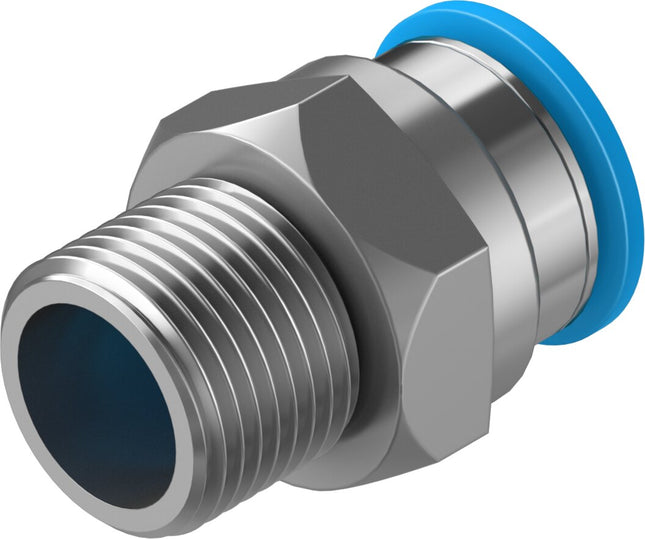

SizeStandard Nominal size11 mm Type of seal on screwed plugCoating Mounting positionoptional DesignStraight design Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa Operating pressure complete temperature range-0.95 bar ... 6 bar Operating pressure complete temperature range-13.775 psi ... 87 psi Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure-0.95 bar ... 14 bar Temperature-dependent operating pressure-13.775 psi ... 203 psi Note on operating pressureWater: max. 0.6 MPa at max. 50°C Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-10 °C ... 80 °C Product weight30 g Type of mountingExternal hexagon, size 21 mm Pneumatic connection, port 1Male thread R3/8 Pneumatic connection, port 2For tubing outer diameter of 12 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingBrass, nickel-plated Material release ringPOM Material tubing sealNBR Material tubing clamp componentHigh-alloy stainless steel

Read more less

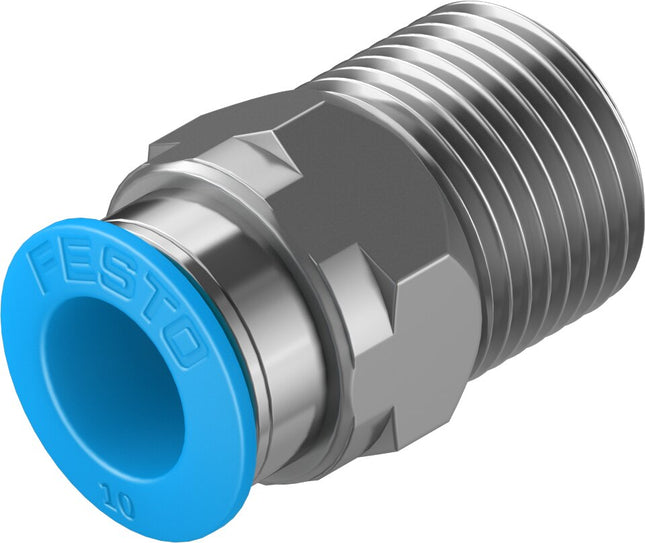

Pneumatic connection, port 1 Male thread R3/8 Pneumatic connection, port 2 For tubing outside diameter of 10 mm Temperature-dependent operating pressure -0.95 bar - 14 bar Ambient temperature -10 °C - 80 °C Nominal size 9 mm Accessories Technical Data

Read more less

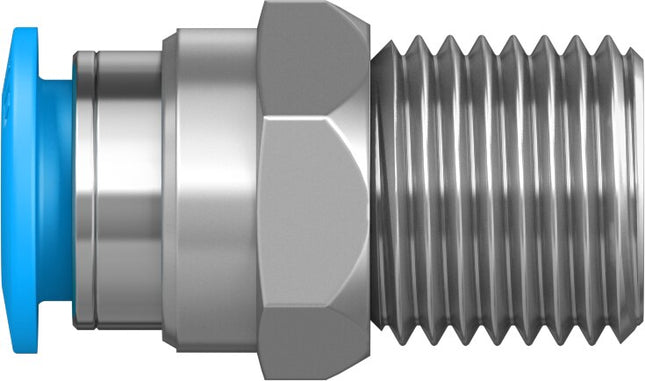

SizeStandard Nominal size7 mm Type of seal on screwed plugCoating Mounting positionoptional DesignStraight design Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa Operating pressure complete temperature range-0.95 bar ... 6 bar Operating pressure complete temperature range-13.775 psi ... 87 psi Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure-0.95 bar ... 14 bar Temperature-dependent operating pressure-13.775 psi ... 203 psi Note on operating pressureWater: max. 0.6 MPa at max. 50°C Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 Ambient temperature-10 °C ... 80 °C Product weight14 g Type of mountingExternal hexagon, size 14 mm Pneumatic connection, port 1Male thread R1/4 Pneumatic connection, port 2For tubing outside diameter of 8 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingBrass, nickel-plated Material release ringPOM Material tubing sealNBR Material tubing clamp componentHigh-alloy stainless steel

Read more less

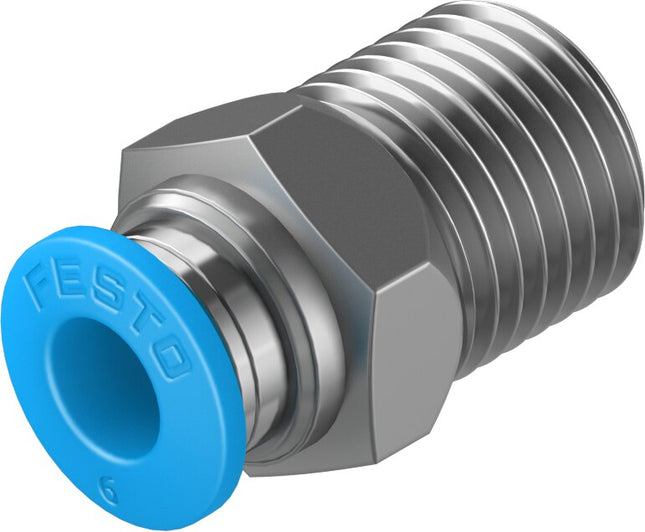

SizeStandard Nominal size5 mm Type of seal on screwed plugCoating Mounting positionoptional DesignStraight design Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa Operating pressure complete temperature range-0.95 bar ... 6 bar Operating pressure complete temperature range-13.775 psi ... 87 psi Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure-0.95 bar ... 14 bar Temperature-dependent operating pressure-13.775 psi ... 203 psi Note on operating pressureWater: max. 0.6 MPa at max. 50°C Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 Ambient temperature-10 °C ... 80 °C Product weight15 g Type of mountingExternal hexagon, size 14 mm Pneumatic connection, port 1Male thread R1/4 Pneumatic connection, port 2For tubing outside diameter of 6 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingBrass, nickel-plated Material release ringPOM Material tubing sealNBR Material tubing clamp componentHigh-alloy stainless steel

Read more less

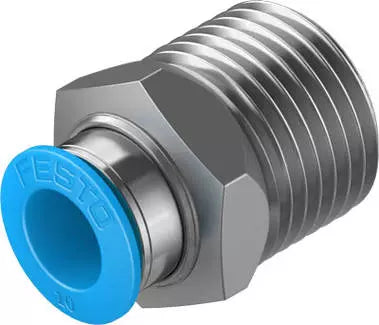

specifications Type R Male Thread with External Hex Country of Origin India Tolerance To Nominal Tightening Torque ± 20 % Series Quick Star Type of Product Push-in-Fitting Part No 190646 Weight 46 g Color Silver, Blue Nominal Size 6.7 mm Ambient Temperature -10 °C ... 80 °C Operating Pressure -0.95 bar ... 14 bar Material Code 6471127 Model No QS-1/2-10 Housing Material Brass, Nickel-Plated Connection 1 Male Thread R1/2 Connection 2 For Tubing OD - 10 mm Tightening Torque 26 Nm Name of Manufacturer/Packer/Importer Festo India Private Limited Nominal Size (mm) 6.7 mm

Read more less

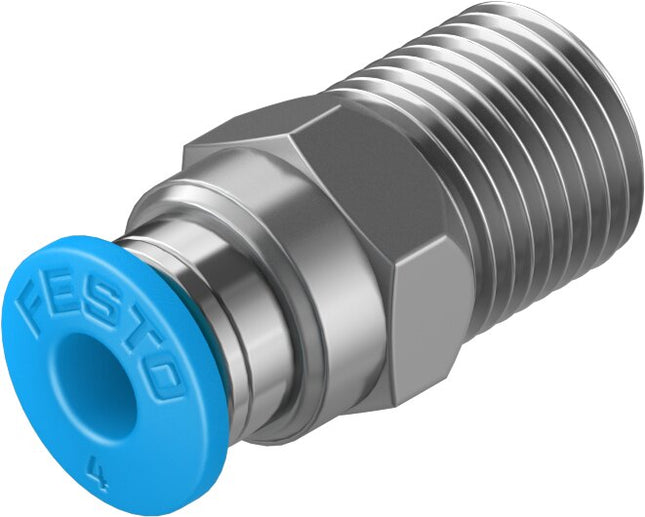

echnical Data SizeStandard Nominal size3 mm Type of seal on screwed plugCoating Mounting positionoptional DesignStraight design Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa Operating pressure complete temperature range-0.95 bar ... 6 bar Operating pressure complete temperature range-13.775 psi ... 87 psi Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure-0.95 bar ... 14 bar Temperature-dependent operating pressure-13.775 psi ... 203 psi Note on operating pressureWater: max. 0.6 MPa at max. 50°C Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 Ambient temperature-10 °C ... 80 °C Product weight7.4 g Type of mountingExternal hexagon, size 10 mm Pneumatic connection, port 1Male thread R1/8 Pneumatic connection, port 2For tubing outside diameter of 4 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingBrass, nickel-plated Material release ringPOM Material tubing sealNBR Material tubing clamp componentHigh-alloy stainless steel
