SizeStandard Nominal size5 mm Type of seal on screwed plugCoating Mounting positionoptional DesignStraight design Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa Operating pressure complete temperature range-0.95 bar ... 6 bar Operating pressure complete temperature range-13.775 psi ... 87 psi Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure-0.95 bar ... 14 bar Temperature-dependent operating pressure-13.775 psi ... 203 psi Note on operating pressureWater: max. 0.6 MPa at max. 50°C Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 Ambient temperature-10 °C ... 80 °C Product weight15 g Type of mountingExternal hexagon, size 14 mm Pneumatic connection, port 1Male thread R1/4 Pneumatic connection, port 2For tubing outside diameter of 6 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingBrass, nickel-plated Material release ringPOM Material tubing sealNBR Material tubing clamp componentHigh-alloy stainless steel

Read more less

specifications Type R Male Thread with External Hex Country of Origin India Tolerance To Nominal Tightening Torque ± 20 % Series Quick Star Type of Product Push-in-Fitting Part No 190646 Weight 46 g Color Silver, Blue Nominal Size 6.7 mm Ambient Temperature -10 °C ... 80 °C Operating Pressure -0.95 bar ... 14 bar Material Code 6471127 Model No QS-1/2-10 Housing Material Brass, Nickel-Plated Connection 1 Male Thread R1/2 Connection 2 For Tubing OD - 10 mm Tightening Torque 26 Nm Name of Manufacturer/Packer/Importer Festo India Private Limited Nominal Size (mm) 6.7 mm

Read more less

echnical Data SizeStandard Nominal size3 mm Type of seal on screwed plugCoating Mounting positionoptional DesignStraight design Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa Operating pressure complete temperature range-0.95 bar ... 6 bar Operating pressure complete temperature range-13.775 psi ... 87 psi Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure-0.95 bar ... 14 bar Temperature-dependent operating pressure-13.775 psi ... 203 psi Note on operating pressureWater: max. 0.6 MPa at max. 50°C Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 Ambient temperature-10 °C ... 80 °C Product weight7.4 g Type of mountingExternal hexagon, size 10 mm Pneumatic connection, port 1Male thread R1/8 Pneumatic connection, port 2For tubing outside diameter of 4 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingBrass, nickel-plated Material release ringPOM Material tubing sealNBR Material tubing clamp componentHigh-alloy stainless steel

Read more less

Description PUSH BUTTON P2AF2 BLACK MAKE-TEKNIC PLASTIC

Read more less

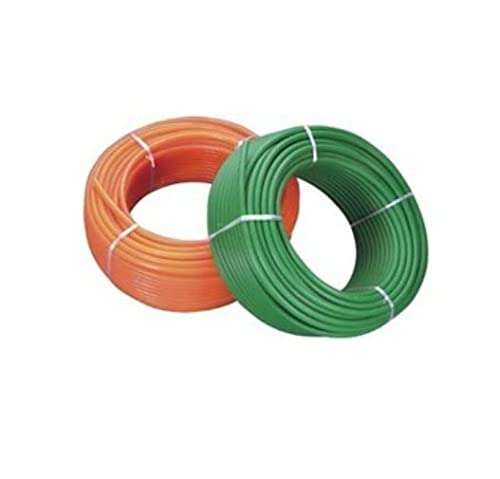

Brand S.E Material Polyurethane (PU) Colour Green

Read more less

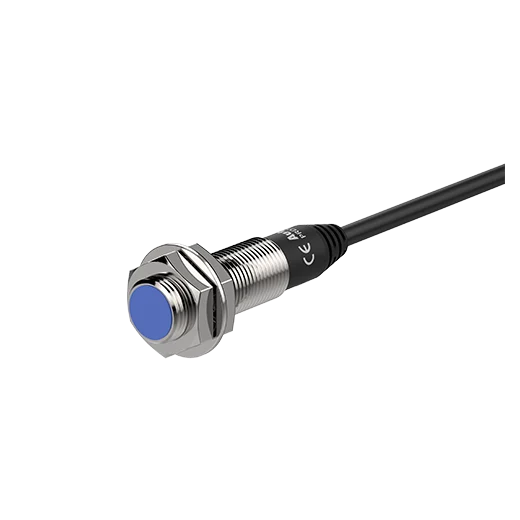

Sensing Distance 5 mm Usage for Industrial Material Stainless Steel Brand Autonics Sensor Type NPN NO Power supply voltage 12-24 VDC Availability In Stock Wire type and power DC 3-wire type 12-24VDC  Sensing side diameter M12 Sensing distance 4mm Installation Shield(flush) Standard sensing target 12×12×1mm(iron) Response frequency 500Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Open Material Brass(nickel plated) Cable Standard/material Standard cable Protection structure IP67 Body length Standard type Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Residual voltage Max. 1.5V Weight ≈ 62g (≈ 74g)

Read more less

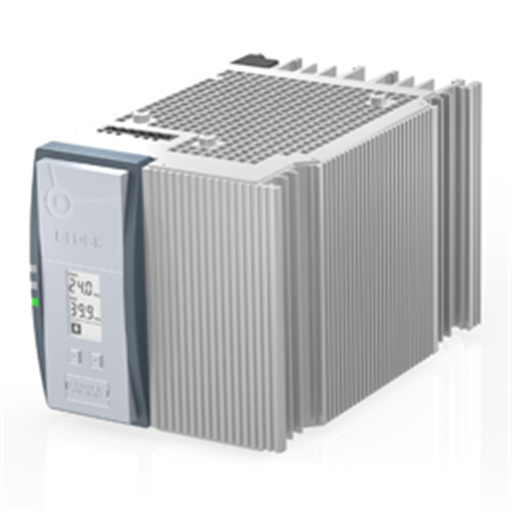

Part number BLO.PVSL 400-24-40 Manufacturer BLOCK Type Component Type number PVSL 400/24-40 Order number PVSL 400/24-40 Designation EN_US Switched mode power supply, 24Vdc, 40A Description EN_US Switched Mode Power Supply three phase, Series: POWER VISION, Input: 400-500Vac 50-60Hz, Output: 24Vdc, 40A, Power Boost: 60A / 4s, 100A / 50ms, Terminals: pluggable Cage Clamps, Ambient temperature: -25°C... +70°C Languages EN_US, DE_DE Product group Electrical engineering > Voltage source and generator > Voltage source

Read more less

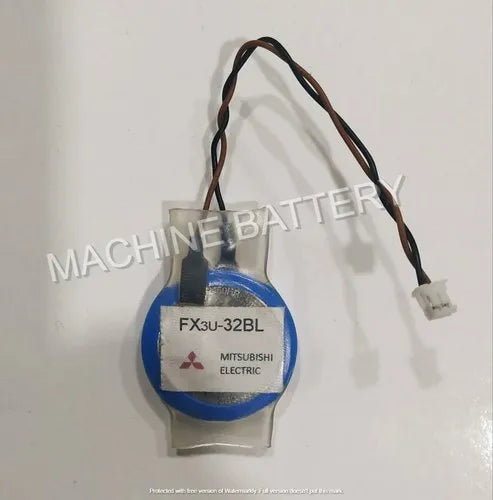

Battery Capacity 500mAH Voltage 3V Battery Type Lithium Usage/Application PLC Memory Backup Brand Mitshubishi Model Name/Number Mitsubishi Fx3u 32BL Availability In Stock

Read more less

Sensing Mode Retroreflective Material ABS Brand Omron Model Number E3ZG-T61 Power Source Electric Sensing Method Through Beam Type Degree Of Protection IP50 Weight 2.7 g Availability In Stock

Read more less

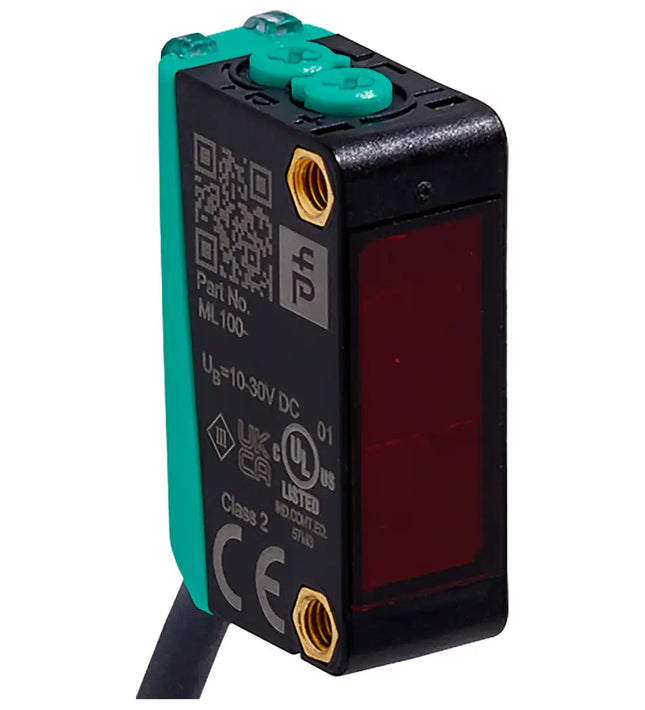

The optical sensors of this series are suitable for both standard and demanding applications. The series features a miniature housing design, two M3 metal-threaded mounting holes and a highly visible LED status indicator. Each device is equipped with a sensitivity adjuster and a light-on/dark-on changeover switch for increased flexibility. A wide variety of versions are available in both infrared light and red light with PowerBeam for easy alignment. Special versions with BlueBeam are suitable for challenging applications like those in the solar and battery industries.

Read more less

Descriptions of Omron E3FA-DP12 2M provided by its distributors. Photoelectric Sensor Diffuse-Reflective Light ON/Dark ON PNP Open Collector 0.3m 4-Pin Chip One Stop Global PHOTOELECTRIC SENSOR, M18 AXIAL BODY, DIFFUSE, 300MM, PNP, 2M CABLE Kempston Controls Diffuse Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, PNP Zoro PROXIMITY SENSOR,PHOTOELECTRIC,THROUGH BEAM IHS DIFFUSE PE SENSOR 300 MM DETECTION RANGE, PNP OUTPUT, BARREL STYLE, IP67, IP69K RS (Formerly Allied Electronics) SENSOR, PHOTOELECTRIC, 300MM, PNP; Output Current:100mA; Sensor Output1:PNP; Supply Voltage DC Min:10V; Supply Voltage DC Max:30V; SVHC:No SVHC (19-Dec-2012); Sensing Range:0mm to 300mm; Supply Voltage Range DC:10V to 30V Farnell Sensor, Photoelectric, 300Mm, Pnp; Product Range:E3Fa Series; Output Current:100Ma; Sensing Range Max:300Mm; Sensor Output Type:Pnp; Supply Voltage Dc Max:30V; Supply Voltage Dc Min:10V Rohs Compliant: Yes |Omron Industrial Automation E3FA-DP12 2M Newark Sensor Type = Diffuse Reflective Sensor / Optical Sensor Output Type = PNP / Sensing Distance Max. mm = 300 / Light Type = Red LED / Operating Voltage Min. V = 10 / Operating Voltage Max. V = 30 / Termination Type = Cable / Switching Type = Light-ON / Dark-ON / Load Current mA = 100 / Response Time us = 500 / Protection Rating = IP69K / Protection Rating = IP67 / Series = E3FA / Operating Temperature Min. °C = -25 / Operating Temperature Max. °C = 55 / Width mm = 16.6 / Length mm = 41

Read more less

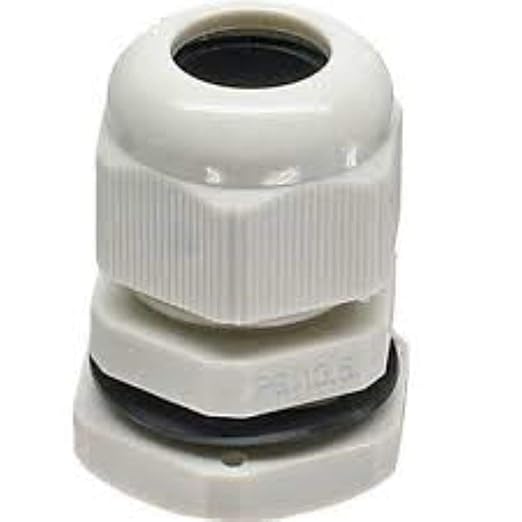

Technical Details Brand ‎JIGO Manufacturer ‎JIGO Country of Origin ‎India Model number ‎PG-13.5 Item Weight ‎150 g Package Dimensions ‎6 x 4 x 4 cm; 150 g Item model number ‎PG-13.5
