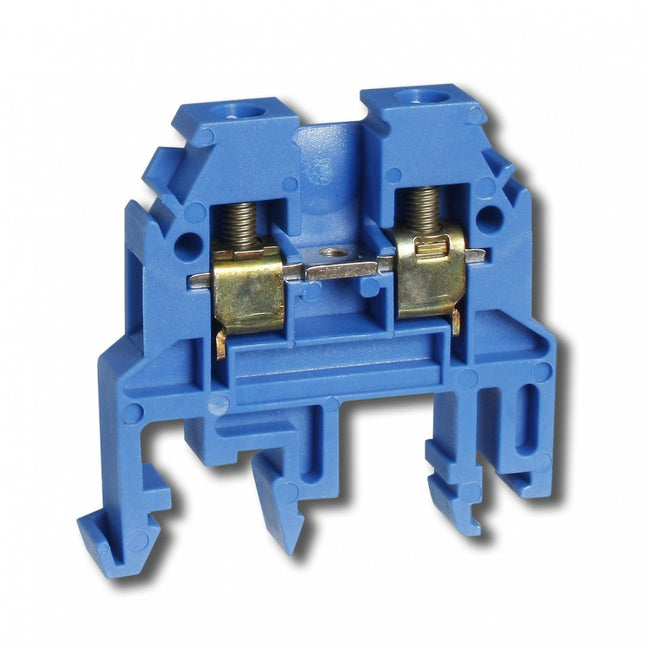

Rated cross-section [mm²] 4 Connection capacity [mm²] 0,5 ÷ 6 Rated current [A] 32 Short-time withstand current [A] 480 Insulation voltage Ui [V] 1000 V AC / 1500 V DC Impulse voltage U (Imp) [V] 8000 Tightening torque [Nm] 0,5 Tools Screwdriver PH 0 / 0,5 x 3 Assembly method (on DIN rail) TH 15, TH 35, G 32 Pollution degree 2 IP code 20 Operating temperature [°C] -40 ÷ +105 Number of clamping points per level 2 Number of levels 1 End cover plate required YES Testing IEC 60947-7-1 Dimensions [mm] (width / height / length) 6,6 / 39 / 41,5 Weight [g] 8 Packing [pcs] 100 Clamping screw M 3 x 7 Conductor cross section Solid conductor [mm²] 0,5 ÷ 6 Stranded conductor [mm²] 0,5 ÷ 4 Finely stranded conductor [mm²] 0,5 ÷ 4 2 x Solid conductor, stranded, finely stranded [mm²] 0,5 ÷ 2,5 3 x Solid conductor, stranded, finely stranded [mm²] 0,5 ÷ 1 Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²] 4 Stripping length [mm] 10 Performance Insulating body Polyamide PA 6, flammability V0 halogen free Electric conductive part Brass (galvanic surfaced) Fixing part Thermally treated steel (galvanic surfaced)

Read more less

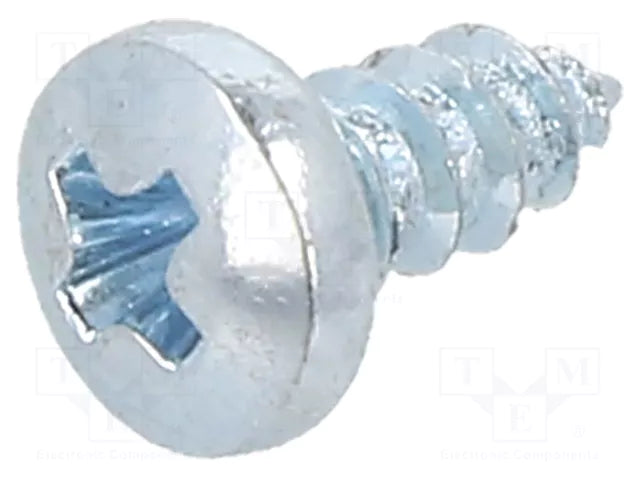

Specification Show similar products (4) Manufacturer WAGO Type of connector accessories fixation screw Show similar products (4) Gross weight0.441 g

Read more less

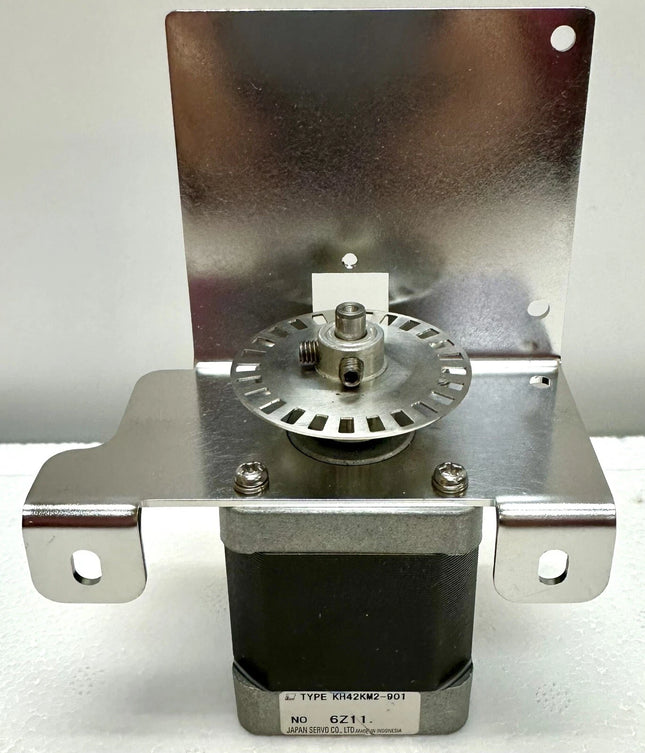

Item specifics Condition Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is ... Read moreabout the condition Brand Japan Servo Co. LTD MPN KH42KM2-901 Wiring Configuration 6-Wire Unipolar Country of Origin Japan UPC Does not apply Category breadcrumb

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Sanyo Denki Product Category: DC Fans RoHS:   Type: Axial Height: 40 mm Depth: 20 mm Width: 40 mm Operating Supply Voltage: 24 VDC Airflow: 8.23 CFM (0.23 m3/min) Speed: 8300 RPM Bearing Type: Ball Noise: 35 dBA Power Rating: 1.68 W Features: Locked Rotor Sensor Housing Material: Plastic Termination Style: Wire Leads - 3 Series: 9P Type Brand: Sanyo Denki Compliance: CSA; TUV; UL Current Type: DC Packaging: Bulk Pressure Type: 7.1 mmAq Product Type: DC Fans 70 Subcategory: Fans, Blowers & Accessories Tradename: San Ace 40 Part # Aliases: 109P0424H6D01PJ Unit Weight: 45 g

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Sanyo Denki Product Category: DC Fans RoHS:   Type: Axial Height: 40 mm Depth: 20 mm Width: 40 mm Operating Supply Voltage: 24 VDC Airflow: 8.23 CFM (0.23 m3/min) Speed: 8300 RPM Bearing Type: Ball Noise: 35 dBA Power Rating: 1.68 W Features: Locked Rotor Sensor Housing Material: Plastic Termination Style: Wire Leads - 3 Series: 9P Type Brand: Sanyo Denki Compliance: CSA; TUV; UL Current Type: DC Packaging: Bulk Pressure Type: 7.1 mmAq Product Type: DC Fans 70 Subcategory: Fans, Blowers & Accessories Tradename: San Ace 40 Part # Aliases: 109P0424H6D01PJ Unit Weight: 45 g

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Sanyo Denki Product Category: DC Fans RoHS:   Type: Axial Height: 40 mm Depth: 20 mm Width: 40 mm Operating Supply Voltage: 24 VDC Airflow: 8.23 CFM (0.23 m3/min) Speed: 8300 RPM Bearing Type: Ball Noise: 35 dBA Power Rating: 1.68 W Features: Locked Rotor Sensor Housing Material: Plastic Termination Style: Wire Leads - 3 Series: 9P Type Brand: Sanyo Denki Compliance: CSA; TUV; UL Current Type: DC Packaging: Bulk Pressure Type: 7.1 mmAq Product Type: DC Fans 70 Subcategory: Fans, Blowers & Accessories Tradename: San Ace 40 Part # Aliases: 109P0424H6D01PJ Unit Weight: 45 g

Read more less

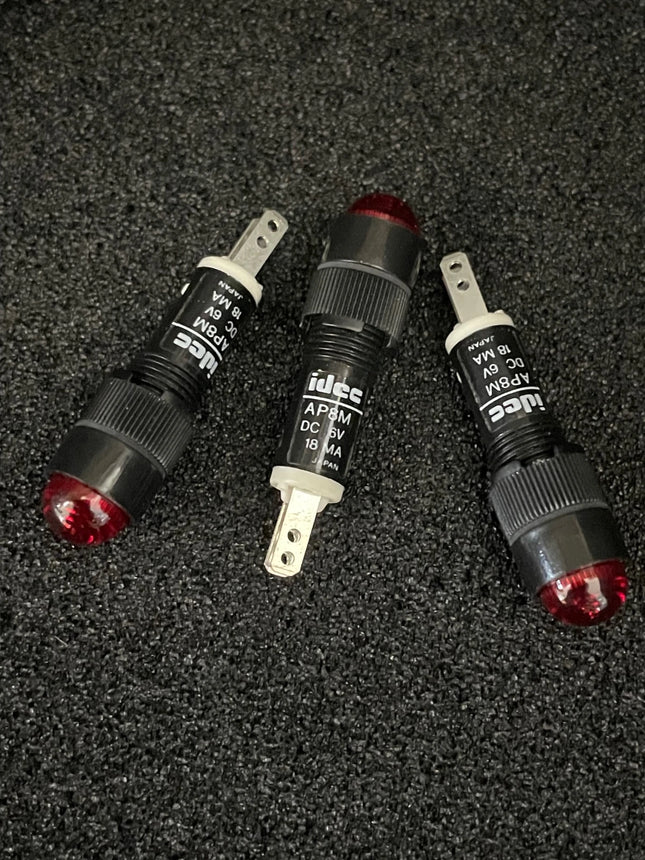

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition Country of Origin Japan Brand IDEC Type Panel Light Indicator MPN AP8M255-R

Read more less

Technical Specifications Sensor Type Inductive Proximity Sensor Supply Voltage Min 10VDC Sensing Distance Nom 8mm Sensor Case / Package Cylindrical M12 Thread Technical Docs (1)

Read more less

Detailed Product Description Brand: BFEC Model Code: DMF-Z-20 Port Size: DN20 Voltage: AC220V DC24V Highlight: pulse solenoid valve ,  pulse jet valve   DMF-Z-20 New type BFEC Pulse Jet Valve DN20 AC220V DC24V Green Coil   Features 1. Specially designed for reverse jet-type dust collector systems 2. High flow Cv(s) to 140 for effective bag cleaning 3. High cycle life 4. Fast opening/closing 5. Port size: DN20 6. Voltage:DC24V AC220V

Read more less

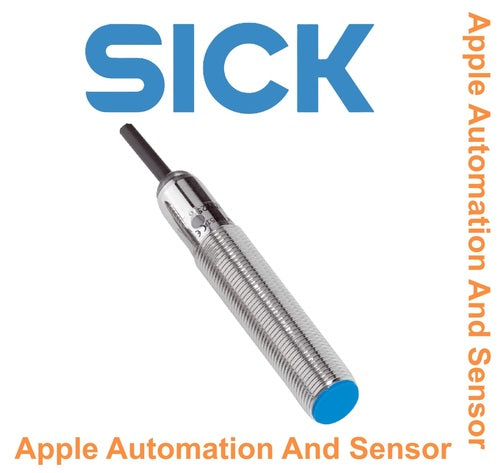

Product Overview IME12-02BPSZW2S is an IME series inductive proximity sensor. It offers precise detection, less downtime, and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values for any number of production runs. IM sensors are completely encapsulated with hotmelt moulding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability. Economic standard for use in industrial environments High machine availability due to rugged design, highly cost-efficient due to low purchase costs High positioning accuracy thanks to precise switching behaviour Standard cylindrical thread design housing, M12 x 1 thread size, Ø 12mm diameter 2mm sensing range Sn, flush installation type, 2000Hz switching frequency Cable, 3-wire, 2m connection type, PNP switching output NO output function, DC 3-wire electrical wiring, IP67 rated 10VDC to 30VDC supply voltage Short-circuit/reverse polarity/power-up pulse protection, -25 to +75°C ambient operating temperature Brass, nickel-plated housing, plastic-PA 66 sensing face, UL file No. NRKH.E181493
