Specifications Size M8 Mounting type Flush Sensing distance 2 mm Output type NPN Operation mode NO Connection method Cable Material housing Stainless steel Cable specifications PVC Cable length 2 m Overall length of sensor 42 mm Thread length 27 mm Degree of protection (IP) IP67

Read more less

Specifications Type Enclosed Mounting method Direct mounting Phase Single Output voltage 24 V Power output 150 W Efficiency 87 % Rated output current 6.5 A Temperature range -20-60 °C Features Terminal block facing upward Terminal type Screw Communication port(s) None Alarm function - Number of output branches 1 Rated supply voltage at AC 50 Hz 100-240 V Allowable supply voltage AC 90-264 V Allowable supply voltage DC 254-373 V Product Width (unpacked) 97 mm Product Height (unpacked) 38 mm Product Depth (unpacked) 199 mm

Read more less

PRODUCT DEFINITION Brand SNR A - Housing width 48 mm A1 - Housing top width 31 mm B - Width of Inner Ring 42,9 mm d - Shaft diameter 35 mm G - Grease fitting M6x1 H - Distance mounting base to centerline spheric. seating diam. 47,6 mm H1 - Housing foot height 19 mm H2 - Housing height 94 mm J - Mounting holes distance 127 mm L - Housing length 167 mm L1 - Housing foot length 54 mm N - Mounting hole dimension 17 mm N1 - Mounting hole length 21 mm S - Distance front side/bearing centre 17,5 mm

Read more less

Brand: AUTONIX, Model: PU-1Z Selectable use on NPN, PNP & contact inputs. Able to drive loads up to 3A, 250VAC. For sensors such as proximity, photo, fiber, reed, level sensor etc. Convenient rail mount and foot mount. Output relay with both NO and NC contacts. Terminal protection plate.

Read more less

Connector Type Screw Contact Material Silver Alloy Contact Type 2NO 2NC Mounting Type Panel Mount Brand MINILEC

Read more less

Micron Ratings 5 Micron Filtration Media Polypropylene Length 20 Inch Availability In Stock Sizes 2" X 10" To 4.5" X 40" & Customized Core PP, Stainless steel Material of Construction 100% Polypropylene & Cotton Micron Rating 1, 5, 10, 25, 50, 75, 100 Configuration DOE, SOE

Read more less

Price Excluding all taxes Ships from Dharuhera Shipping As per delivery location

Read more less

Item specifics Condition Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is ... Read moreabout the condition Brand Unbranded MPN Does not apply Model does not ap

Read more less

Specifications Size M18 Mounting type Quasi-flush Sensing distance 8 mm Output type PNP Operation mode NO Connection method Cable Material housing Brass, nickel plated Cable specifications PVC Cable length 2 m Overall length of sensor 56 mm Thread length 36 mm Degree of protection (IP) IP67

Read more less

Mounting Din Rail Type of Product Relay Socket Model No MK11C Voltage 220 V Current 5A Pins 11 Pin Country of Origin India Name of Manufacturer/Packer/Importer Max Engineering & Marketing Pvt Ltd.

Read more less

Main Range of product Harmony XAC Product or component type Contact block Component name XENG Electrical circuit type Control circuit Contact block application 2-speed Contact block type Single Type of operator Spring return Product compatibility XACAXACA9...head Contacts type and composition 1 NC + 2 NO Mounting of block Front mounting Contact operation Slow-breakStaggered Complementary Connections - terminals Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable endScrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end Mechanical durability 1000000 cycles Contact code designation A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix AQ600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A [Ithe] conventional enclosed thermal current 10 A [Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1 Maximum resistance across terminals 25 MOhm Operating force 18 N Short-circuit protection 10 A fuse protection by cartridge fuse type gG Rated operational power in W 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C Terminals description ISO n°1 (21-22)NC(33-34)NO_CL(13-14)NO Net weight 0.04 kg Main Range of product Harmony XAC Product or component type Contact block Component name XENG Electrical circuit type Control circuit Contact block application 2-speed Contact block type Single Type of operator Spring return Product compatibility XACAXACA9...head Contacts type and composition 1 NC + 2 NO Mounting of block Front mounting Contact operation Slow-breakStaggered Complementary Connections - terminals Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable endScrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end Mechanical durability 1000000 cycles Contact code designation A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix AQ600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A [Ithe] conventional enclosed thermal current 10 A [Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1 Maximum resistance across terminals 25 MOhm Operating force 18 N Short-circuit protection 10 A fuse protection by cartridge fuse type gG Rated operational power in W 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C Terminals description ISO n°1 (21-22)NC(33-34)NO_CL(13-14)NO Net weight 0.04 kg Environment Standards UL 508IEC 60947-5-1CSA C22.2 No 14 Ambient air temperature for operation -25…70 °C Ambient air temperature for storage -40…70 °C Vibration resistance 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 Shock resistance 100 gn conforming to IEC 60068-2-27 Overvoltage category Class II conforming to IEC 61140 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.0 cm Package 1 Width 4.0 cm Package 1 Length 5.5 cm Package 1 Weight 42.0 g Unit Type of Package 2 S02 Number of Units in Package 2 100 Package 2 Height 15.0 cm Package 2 Width 30.0 cm Package 2 Length 40.0 cm Package 2 Weight 4.55 kg Unit Type of Package 3 P06 Number of Units in Package 3 1600 Package 3 Height 77.0 cm Package 3 Width 80.0 cm Package 3 Length 60.0 cm Package 3 Weight 81.3 kg Contractual warranty Warranty (in months) 18

Read more less

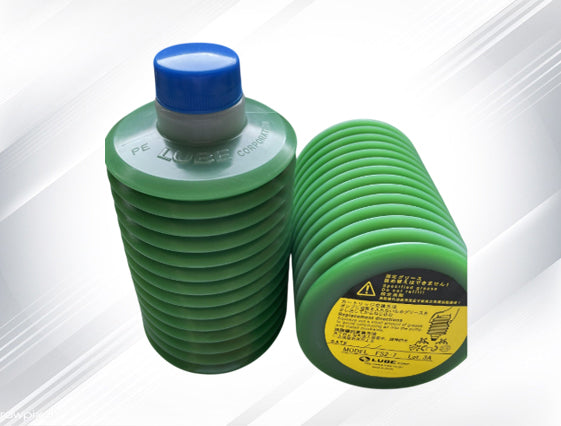

Technical Specifications of FS2-7 Grease : For those who need detailed information, here are the key specifications of FS2-7: Model : FS2-7 Material : High Performance Lithium-based Grease Volume : 700ml Origin : Japan Color : Green Texture : Smooth, Non-dripping Packaging : 15pcs/Carton Operating Temperature Limit : -20℃ to +130℃ Origin : Manufactured by Lube Corp, Japan

Read more less
