Brand S.E Material Polyurethane (PU) Colour Green

Read more less

Sensing Distance 5 mm Usage for Industrial Material Stainless Steel Brand Autonics Sensor Type NPN NO Power supply voltage 12-24 VDC Availability In Stock Wire type and power DC 3-wire type 12-24VDC  Sensing side diameter M12 Sensing distance 4mm Installation Shield(flush) Standard sensing target 12×12×1mm(iron) Response frequency 500Hz Current specification Current consumption: Max. 10mA Control output NPN Normally Open Material Brass(nickel plated) Cable Standard/material Standard cable Protection structure IP67 Body length Standard type Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃ Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH Hysteresis(distance) Max. 10% of sensing distance Residual voltage Max. 1.5V Weight ≈ 62g (≈ 74g)

Read more less

Part number BLO.PVSL 400-24-40 Manufacturer BLOCK Type Component Type number PVSL 400/24-40 Order number PVSL 400/24-40 Designation EN_US Switched mode power supply, 24Vdc, 40A Description EN_US Switched Mode Power Supply three phase, Series: POWER VISION, Input: 400-500Vac 50-60Hz, Output: 24Vdc, 40A, Power Boost: 60A / 4s, 100A / 50ms, Terminals: pluggable Cage Clamps, Ambient temperature: -25°C... +70°C Languages EN_US, DE_DE Product group Electrical engineering > Voltage source and generator > Voltage source

Read more less

Battery Capacity 500mAH Voltage 3V Battery Type Lithium Usage/Application PLC Memory Backup Brand Mitshubishi Model Name/Number Mitsubishi Fx3u 32BL Availability In Stock

Read more less

Brand Radix Model Number EK2SP Display 0.56" (14.2 mm), 7 segment red LED Proportional Band +-3 deg C Supply Voltage 230 V AC +-10%, 50 Hz (std) (3) 1 10 V AC, 24 V AC, 24 V DC Operating Ambient Temperature 0 to 50 deg C Relative Humidity Below 90%, non condensing Mounting Panel Cutout 96x96x150 mm Availability In Stock EK2SP is a Digital Temperature Indicator and Controller. Its single input accepts J-type (Iron/Constantan) and K-type (Chromel/Alumel) thermocouples, Pt100 RTD and linear (millivolt or milliamp) input. A large LED display on the front of the unit indicates either the process value or user-defined setpoint, which is easily programmed via a 10-turn trimpot. EK2SP's 2 electromagnetic relays trigger heating, cooling, or high and low alarms for its 2 setpoints. This is a highly accurate controller, with an error as low as 0.1% for linear inputs and no more than 1% for thermocouples. EK2SP is conventionally an ON-OFF controller that outputs a discrete signal, but can also be used in Time-Proportioning Mode which turns the actuator on and off for periods proportional to the desired control effort, to emulate a continuous actuator that can generate a control effort between 0 and 100%. It also retransmits an isolated output signal to other devices such as a Programmable Logic Controller (PLC) or Solid-State Relay (SSR). Signal isolation protects your devices and machines downstream of our instruments from damaging fluctuations in the input signal. By including input terminals in the excitation loop, EK2SP provides power for two-wire 4-20 transmitters. The controller's modular design contains zero-wiring making it virtually shockproof.

Read more less

The optical sensors of this series are suitable for both standard and demanding applications. The series features a miniature housing design, two M3 metal-threaded mounting holes and a highly visible LED status indicator. Each device is equipped with a sensitivity adjuster and a light-on/dark-on changeover switch for increased flexibility. A wide variety of versions are available in both infrared light and red light with PowerBeam for easy alignment. Special versions with BlueBeam are suitable for challenging applications like those in the solar and battery industries.

Read more less

Descriptions of Omron E3FA-DP12 2M provided by its distributors. Photoelectric Sensor Diffuse-Reflective Light ON/Dark ON PNP Open Collector 0.3m 4-Pin Chip One Stop Global PHOTOELECTRIC SENSOR, M18 AXIAL BODY, DIFFUSE, 300MM, PNP, 2M CABLE Kempston Controls Diffuse Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, PNP Zoro PROXIMITY SENSOR,PHOTOELECTRIC,THROUGH BEAM IHS DIFFUSE PE SENSOR 300 MM DETECTION RANGE, PNP OUTPUT, BARREL STYLE, IP67, IP69K RS (Formerly Allied Electronics) SENSOR, PHOTOELECTRIC, 300MM, PNP; Output Current:100mA; Sensor Output1:PNP; Supply Voltage DC Min:10V; Supply Voltage DC Max:30V; SVHC:No SVHC (19-Dec-2012); Sensing Range:0mm to 300mm; Supply Voltage Range DC:10V to 30V Farnell Sensor, Photoelectric, 300Mm, Pnp; Product Range:E3Fa Series; Output Current:100Ma; Sensing Range Max:300Mm; Sensor Output Type:Pnp; Supply Voltage Dc Max:30V; Supply Voltage Dc Min:10V Rohs Compliant: Yes |Omron Industrial Automation E3FA-DP12 2M Newark Sensor Type = Diffuse Reflective Sensor / Optical Sensor Output Type = PNP / Sensing Distance Max. mm = 300 / Light Type = Red LED / Operating Voltage Min. V = 10 / Operating Voltage Max. V = 30 / Termination Type = Cable / Switching Type = Light-ON / Dark-ON / Load Current mA = 100 / Response Time us = 500 / Protection Rating = IP69K / Protection Rating = IP67 / Series = E3FA / Operating Temperature Min. °C = -25 / Operating Temperature Max. °C = 55 / Width mm = 16.6 / Length mm = 41

Read more less

Technical Details Brand ‎JIGO Manufacturer ‎JIGO Country of Origin ‎India Model number ‎PG-13.5 Item Weight ‎150 g Package Dimensions ‎6 x 4 x 4 cm; 150 g Item model number ‎PG-13.5

Read more less

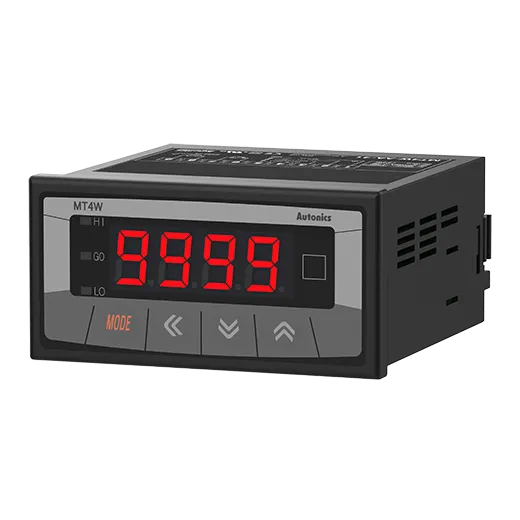

Data sheet Print Display method 4-digit 7-segment LED Character height 14.2mm Max. display Range -1999 to 9999 Measurement AC current, Frequency Input specification 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA AC Measurement Average value (AVG), Root mean square value (RMS) Power voltage 100-240VAC~ 50/60Hz Output_Main Output(Comparative Value) Relay (HI, GO, LO) Display accuracy • 23℃±5℃ - ± 0.3 % F.S. rdg ± 3 digit (frequency: ± 0.1 % F.S. rdg ± 2-digit)• -10℃ to 50℃ - ± 0.5 % F.S. rdg ± 3-digit A/D conversion method ΣΔ (Sigma Delta) ADC Sampling cycle 16.6ms Hold function Includes (external hold function) Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Insulation type Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV) Protection structure IP56 (front part, IEC standard) Unit weight (packaged weight) ≈ 211 g (≈ 326 g)

Read more less

Osram Lumilux 36W 5000K Color Proof Replacement Lamp Used for Printing industry, graphic workshops, photographic laboratories  (G13) Base Color Temp (950) 5000k Daylight MOL 1200mm x Dia 26mm Rated Avg. Life 20,000hrs Lumens 3150 lm Sold 5/Case CRI 90..99 Discontinued replacement Philips TL-D 36W/52  Additional Info: Stable light-technical and electrical data Uniform coating  Meets the application requirements of ISO 3664:2009 Metamerism indices: MVIS ≤1.0 and MUV ≤1.5

Read more less

Operating mechanism Snap action ctuator Plastic rodResin rod Frequency 50/60 Hz Contact form 1NC/1NO Load General load/Micro load Conduit G1/2Number of conduit: 1 Ambient temperature Operating: -30 to 70 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating frequency 30 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance 100 MΩ min. Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminal of the different polarities: 4 kVBetween each terminal and non-live-metallic part: 6 kV Durability Mechanical: 15,000,000 operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2Malfunction: 300 m/s2 Degree of protection IP67 Classification of protection against electric shock Class II (Double insulation) Operating Force (OF) Standard value 1.5 N max. Pre-Travel (PT) Standard value 15 ° max.

Read more less

Description Number Of Poles 4 Pole Material Glass Usage/Application Relay Modules Model Name/Number MY4N-D2-GS DC24 Coil Voltage 24V Voltage Type DC Current 3A Relay Type General Purpose Relays Availability In Stock
