Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number FX-102P Part Number FX-102P Products Name Digital Fiber Sensor Product details Long sensing range type The price of the product Please contact our office Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Listing certification Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less Power consumption Normal operation: 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)ECO mode: 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage) Output PNP open-collector transistor- Maximum source current: 100 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 1.5 V or less (at 100 mA source current) Output:Output operation Selectable either Light-ON or Dark-ON, at SET mode Output:Short-circuit protection Incorporated External input PNP non-contact input- Signal conditionHigh: +4 V to +V DC (Sink current 0.5 to 3 mA)Low: 0 to +0.6 V DC or Open- Input impedance: 10 kOhm approx. Response time Emission frequency 1: 2.5 ms or less (factory default setting)Emission frequency 2: 2.8 ms or lessEmission frequency 3: 3.2 ms or lessEmission frequency 4: 5.0 ms or less Sensitivity setting 2-point teaching / Limit teaching / Full-auto teaching Operation indicator Orange LED (lights up when the output is ON) Digital display 4 digits (green) + 4 digits (red) LCD display Fine sensitivity adjustment function Incorporated Timer function ON-delay / OFF-delay timer, switchable either effective or ineffective[Timer period: 1 ms, 5 ms, 10 ms, 20 ms, 40 ms, 50 ms, 100 ms, 500 ms, 1,000 ms] Emission amount setting function 3-level + Auto setting Interference prevention function Incorporated Emission frequency selection method (Functions at emission frequency 1, 2, 3 or 4)(Note) When using the interference prevention function, set the emission frequencies for the amplifiers to be covered by the interference prevention function to different frequency values. Ambient temperature –10 to +55 ℃ +14 to +131 ℉(If 4 to 7 units are mounted close together: –10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are mounted close together: –10 to +45 ℃ +14 to +113 ℉) (No dew condensation or icing allowed),Storage: –20 to +70 ℃ –4 to +158 ℉ Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure(Note) The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure(Note) The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. Vibration resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each Shock resistance 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each Emitting element (modulated) Red LED (Peak emission wavelength: 643 nm 0.025 mil) Material Enclosure: PolycarbonateKey switch: PolycarbonateFiber lock lever: PBT Connection method Connector(Note) Connector attached cable CN-14A-C2 is not attached to the models that have no ''-CC2'' at the end of the model Nos.Make sure to use the optional connector attached cable CN-14A(-R)-Cx or the connector CN-14A, or a connector manufactured by J.S.T. Mfg., Ltd.(contact: SPHD-001T-P0.5, housing: PAP-04V-S). Cable length Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. Weight Net weight: 15 g approx.Gross weight: 35 g approx. Accessory FC-FX-1(Protection cover): 1 pc. scroll scroll scroll

Read more less

Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number FX-501 Part Number FX-501 Products Name Digital Fiber Sensor Product details Standard type Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Listing certification Supply voltage 12 to 24 V DC+10-15 % Ripple P-P 10 % or less Power consumption Normal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage)ECO mode: 680 mW or less (current consumption 28 mA or less at 24 V supply voltage) Output NPN open-collector transistor- Maximum sink current: 100 mA (Note 1)- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (Note 2) (at maximum sink current)(Note 1) 50 mA max. if 5 or more standard types are connected together.(Note 2) 50 mA max. if 5 or more standard types are connected together. (25 mA in case of 2-output type and cable type) Output:Output points 1 point Output:Output operation Switchable either Light-ON or Dark-ON by L/D mode Output:Short-circuit protection Incorporated Response time H-SP: 25 micro s or lessFAST: 60 micro s or lessSTD: 250 micro s or lessLONG: 2 ms or lessU-LG: 4 ms or lessHYPR: 24 ms or less, selectable External input - External input(switchable with Output 2) - Possible external input function - Sensitivity setting 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment Incident light intensity display range H-SP / FAST / STD: 0 to 4,000LONG: 0 to 8,000U-LG / HYPR: 0 to 9,999 Timer function Incorporated with variable OFF-delay / ON-delay /One-shot / ON-delay - OFF-delay / ON-delay - One-shot timer, switchable either effective or ineffective Timer function:Timer period Timer range ''ms'': 0.5 ms approx., 1 to 9,999 ms approx., 1 ms approx.Timer range ''sec.'': 0.5 s approx., 1 to 32 s approx., 1 s approx.Timer range ''1/10 ms'': 0.05 ms approx., 0.1 to 999.9 ms approx., 0.1 ms approx.each output is set individually Emission amount setting function Incorporated, 3 levels (each level 25 to 100 %) + Auto setting [1 level (25 to 100 %) when using H-SP mode] Interference prevention function Incorporated (Note) , selectable either automatic interference prevention or different frequency(Note) Number of sensor heads which is possible to be mounted closely in auto interference prevention function depends on response time as shown in table below.Number of sensor heads which is possible to be mounted closely in different frequency Interference prevention function is up to 3 units.- Number of sensor heads mountable closely (Unit: set)Response time: IP-1H-SP: 0FAST: 2STD: 4LONG: 8U-LG: 8HYPR: 12 Various settings Hysteresis setting / Shift amount setting / Emission power setting / Display turning setting / ECO setting / Data bank loading saving setting / Copying setting / Code setting / Reset setting / Logical calculation setting / Threshold value tracking setting, etc. Protection IP40 (IEC) Ambient temperature -10 to +55 ℉ +14 to +131 ℉ [If 4 to 7 units are mounted in cascade: -10 to +50 ℉ +14 to +122 ℉　or if 8 to 16 units are mounted in cascade: -10 to +45 ℉ +14 to +113 ℉　] (No dew condensation or icing allowed), Storage: -20 to +70 ℉ -4 to +158 ℉　 Vibration resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 G max.) in X, Y and Z directions for two hours each Shock resistance 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each Emitting element (modulated) Red LED (Peak emission wavelength: 643 nm 0.025 mil) Material Enclosure, Case cover: PolycarbonateSwitch: Polyacetal Cable - Cable extension - Weight Net weight: 15 g approx.Gross weight: 70 g approx. Accessory FX-MB1 (Amplifier protection seal): 1 set

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Panasonic Product Category: Photoelectric Sensors Delivery Restrictions:  This item may require additional fees and documentation. Customs delays may also occur. RoHS:   Sensing Method: Reflective Sensing Distance: 15 mm to 100 mm Light Source: Red LED Amplifier Type: Built In Output Configuration: PNP Connection Method: Cable Supply Voltage - Min: 12 VDC Supply Voltage - Max: 24 VDC Minimum Operating Temperature: - 25 C Maximum Operating Temperature: + 55 C Brand: Panasonic Industrial Automation Country of Assembly: Not Available Country of Diffusion: Not Available Country of Origin: JP IP Rating: IP67 Operating Supply Voltage: 12 VDC to 24 VDC Product Type: Photoelectric Sensors Series: CX-400 1 Subcategory: Sensors

Read more less

Type Description Select All Category Industrial Automation and Controls Industrial Sensors Photoelectric, Industrial Manufacturer Panasonic Industrial Automation Sales Series CX-400 Packaging Box Part Status Active Sensing Method Reflective Sensing Distance 0.079" ~ 1.969" (2mm ~ 50mm) Voltage - Supply 12V ~ 24V Response Time 1ms Output Configuration PNP - Open Collector Light Source Red LED Connection Method Cable Ingress Protection IP67 Cable Length 78.74" (2m) Adjustment Type - Operating Temperature -25°C ~ 55°C Base Product Number CX-441

Read more less

Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number EX-14A Part Number EX-14A Products Name Ultra-slim Photoelectric Sensor Product details Convergent reflective (Diffused beam type) [Front sensing] Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL Recognition certification(Note) : Conformed from December 2021 production. Sensing range 2 to 25 mm 0.079 to 0.984 in (Conv. point: 10 mm 0.394 in)(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object. Min. sensing object ø0.1 mm ø0.004 in copper wire (Completely beam interrupted object) (Setting distance: 10 mm 0.394 in) Hysteresis 15 % or less of operation distance(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object. Repeatability(perpendicular to sensing axis) 0.1 mm 0.004 in or less Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less Current consumption 13 mA or less Output NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 50 mA sink current),1 V or less (at 16 mA sink current) Output:Utilization category DC-12 or DC-13 Output:Short-circuit protection Incorporated Response time 0.5 ms or less Operation indicator Orange LED (lights up when the output is ON) Incident beam indicator - Stability indicator Green LED (lights up under stable light received condition or stable dark condition) Pollution degree 3 (Industrial environment) Protection IP67 (IEC) Ambient temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each Emitting element Red LED (Peak emission wavelength: 680 nm 0.027 mil, modulated) Material Enclosure: PolyarylateLens: Polyarylate Cable 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long Cable extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.(Note) : For safety applications, do not exceed 30 m 98.425 ft. Weight Net weight: 20 g approxGross weight: 40 g approx Accessory Mounting screws: 1 set

Read more less

  Type Description Select All Category Industrial Automation and Controls Industrial Sensors Proximity Sensors - Industrial Manufacturer Panasonic Industrial Automation Sales Series GX Packaging Box Part Status Active Sensor Type Inductive Sensing Distance 0.13" (3.3mm) Output Type PNP-NO, 3-Wire Response Frequency 500Hz Shielding Unshielded Material - Body Plastic Voltage - Supply 12V ~ 24V Termination Style Cable Leads Operating Temperature -25°C ~ 70°C Ingress Protection IP68 Indicator LED Package / Case Module Base Product Number GX-F12

Read more less

Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number PM-T45 Part Number PM-T45 Products Name Amplifier Built-in / U-shaped Micro Photoelectric Sensor Product details Compact / Cable type [T type] Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL Recognition certification(Note) : Conformed from December 2021 production. Sensing range 6 mm 0.236 in (fixed) Minimum sensing object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object Hysteresis 0.05 mm 0.002 in or less Repeatability 0.01 mm 0.0004 in or less Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less Current consumption 15 mA or less Output NPN open-collector transistor・Maximum sink current: 50 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) Output:Output operation Incorporated with 2 outputs: Light-ON / Dark-ON Output:Short-circuit protection Incorporated Response time Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) : Refer to the note on the specification page for the response frequency. Operation indicator Orange LED (lights up under light received condition) Pollution degree 3 Protection IP64 (IEC) Ambient temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉ Ambient humidity 5 to 85 % RH, Storage: 5 to 95 % RH Ambient illuminance Fluorescent light: 1,000 ℓx at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each Shock resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each Emitting element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated) Material Enclosure: PBTDisplay section: Polycarbonate Cable 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long Wiring length Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.(Note 2) : For safety applications, do not exceed 30 m 98.425 ft. Weight Net weight: 10 g approx.Gross weight: 15 g approx. Remark Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.

Read more less

Spec Detail Specifications and design of the products are subject to change without notice for the product improvement. Item Specifications Product Number PM-Y45 Part Number PM-Y45 Products Name Amplifier Built-in / U-shaped Micro Photoelectric Sensor Product details Compact / Cable type [Y type] Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL Recognition certification(Note) : Conformed from December 2021 production. Sensing range 6 mm 0.236 in (fixed) Minimum sensing object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object Hysteresis 0.05 mm 0.002 in or less Repeatability 0.01 mm 0.0004 in or less Supply voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less Current consumption 15 mA or less Output NPN open-collector transistor・Maximum sink current: 50 mA・Applied voltage: 30 V DC or less (between output and 0 V)・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) Output:Output operation Incorporated with 2 outputs: Light-ON / Dark-ON Output:Short-circuit protection Incorporated Response time Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) : Refer to the note on the specification page for the response frequency. Operation indicator Orange LED (lights up under light received condition) Pollution degree 3 Protection IP64 (IEC) Ambient temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉ Ambient humidity 5 to 85 % RH, Storage: 5 to 95 % RH Ambient illuminance Fluorescent light: 1,000 ℓx at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each Shock resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each Emitting element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated) Material Enclosure: PBTDisplay section: Polycarbonate Cable 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long Wiring length Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.(Note 2) : For safety applications, do not exceed 30 m 98.425 ft. Weight Net weight: 10 g approx.Gross weight: 15 g approx. Remark Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.

Read more less

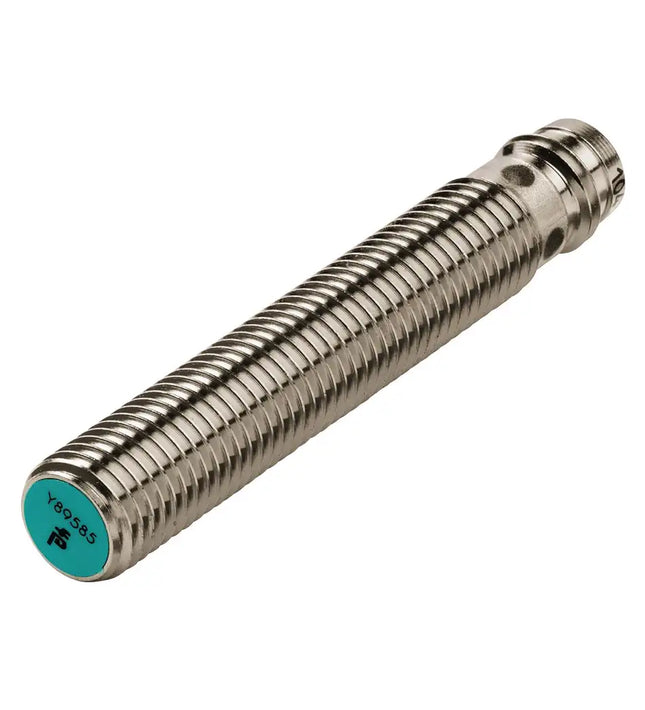

Key Benefits at a Glance 2 mm flush Increased operating distance Extended temperature range-40 ... +85 °C

Read more less

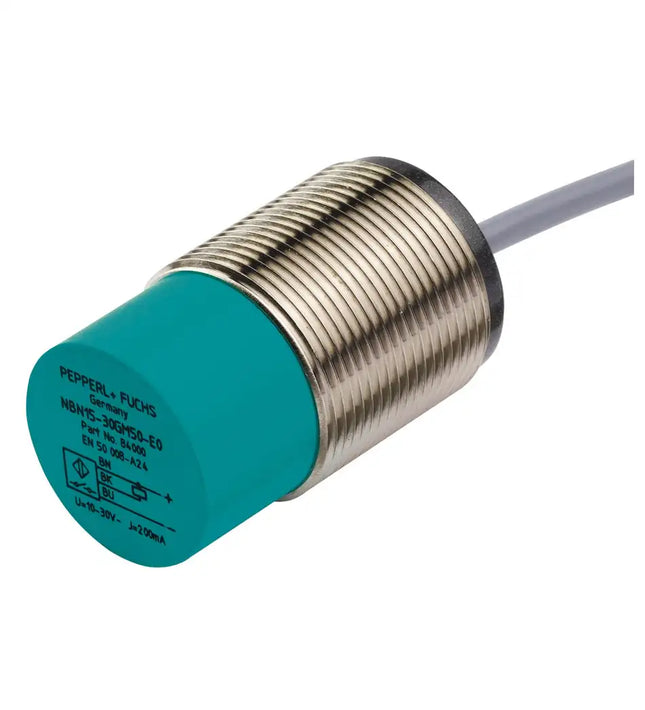

Key Benefits at a Glance 25 mm non-flush 2-wire DC Increased operating distance

Read more less

Key Benefits at a Glance 2 mm flush Usable up to SIL 2 acc. to IEC 61508 NAMUR output Stainless steel housing Polarity reversal protected

Read more less

Type Description Select All Category Industrial Automation and Controls Industrial Sensors Photoelectric, Industrial Manufacturer Pepperl+Fuchs, Inc. Series - Packaging Box Part Status Obsolete Sensing Method Diffuse Sensing Distance 1.969" ~ 17.717" (50mm ~ 450mm) Voltage - Supply 10V ~ 30V Response Time 1ms Output Configuration NPN/PNP - Light-ON Light Source Red (640nm) Connection Method Connector, M12 Ingress Protection IP67 Cable Length - Adjustment Type Adjustable Operating Temperature -25°C ~ 60°C
