FA-COM PLC: Digital I/O Module Series MELSEC IQ-F SERIES Type RELAY OUTPUT Occupied I/O Points on PLC 16 Integrated Digital Outputs 16 Output Type RELAY Conformity CE COMPLIANT UL/cUL COMPLIANT EAC NON-COMPLIANT Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA UKCA COMPLIANT Product Dimensions & Weight Width (mm) 40 Height (mm) 90 Depth (mm) 83 Weight (kg) 0,25 Product Packaging Cardboard (g) 39 Other paper (g) 0,5 Aluminum (g) 0 Steel (g) 0 Styrofoam (g) 0 Other plastic (g) 0 Wood (g) 0 Glass (g) 0 Others (g) 0

Read more less

Product Description Clear plastic housing, Red LED Indicator Can adjust automatically, protect and transform the electric circuit.Used widely in the remote control, communication, automatic control system, electronic equipments, etc. Product information Technical Details Manufacturer ‎Aexit Part Number ‎f190413ae009912 Item model number ‎modle Material ‎plastic Horsepower ‎0.03 Horsepower Sound Level ‎0.03 Decibels Measurement System ‎Metric Mounting Type ‎din_rail Certification ‎electromagnetic

Read more less

Type Grooved Type (T-shaped) (Slot center 7 mm) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Pre-wired models

Read more less

Item specifics Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read moreabout the condition Country of Origin FR Modification Description N/A Power Source N/A Custom Bundle No MPN 3199 12 21 Battery Size N/A Depth 3.700 Number of Batteries N/A Battery Life N/A Voltage N/A Motor Type N/A Features Male Elbow, Application Air, Cutting Fluids, Inert Gases, Vacuum, Cable Length N/A Width 3.700 Battery Included No Bundle Description No Color Black Fitting Shape Elbow Material Nylon Modified Item No Weight 0.6900 California Prop 65 Warning N Brand LEGRIS Type Pipes, Valves & Fittings > Tube Fittings > Push-to-Connect Tube F Battery Capacity N/A Length 4.900 UPC 820099260280

Read more less

specifications Country of Origin France Series Manufacturer: LF3000 Type of Product Elbow Threaded Adaptor Body Material Glass Reinforced Nylon Angle 90° Maximum Operating Temperature +80°C Thread Material Nickel Plated Brass Maximum Operating Pressure 20 Bar Minimum Operating Temperature -20°C Pack of 2 Pcs Mounting Type Inline Threaded Connection G 1/2 Male Name of Manufacturer/Packer/Importer RS Components & Controls (I) Ltd Manufacturer Part Number 3199 12 21 Connector A G 1/2 Male Connector B Push In 12 mm Pneumatic Fitting Type Elbow Threaded Adaptor Connection Style Threaded-to-Tube Swivel Connection Yes

Read more less

Type Description Select All Category Switches Limit Switches Manufacturer Omron Automation and Safety Series ZC Packaging Bulk Part Status Active Circuit SPDT Switch Function On-Mom Current Rating (Amps) 10A (AC), 6A (DC) Voltage Rating - AC 125 V Voltage Rating - DC 30 V Actuator Type Roller Plunger Mounting Type Panel Mount Termination Style Screw Terminal Ingress Protection IP67 - Dust Tight, Waterproof Features Status Indicator Operating Force 1200gf Release Force 500gf Operating Position 1.866" (47.4mm) Pretravel 0.060" (1.5mm) Differential Travel 0.008" (0.2mm) Overtravel 0.118" (3.0mm) Mechanical Life 10,000,000 Cycles Electrical Life 500,000 Cycles Operating Temperature -10°C ~ 80°C Base Product Number ZC-Q2255

Read more less

Sensing head size M18 Type Cylinder type (with screw), Shielded Power source AC 2-wire models Sensing distance 5 mm ±10% Setting distance 0 to 4 mm Operation mode Sensing head size M18 Type Cylinder type (with screw), Shielded Power source AC 2-wire models Sensing distance 5 mm ±10% Setting distance 0 to 4 mm Differential distance 10% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 18 x 18 x 1 mm Response frequency 25 Hz (Average value) Power supply voltage 24 to 240 VAC Operating voltage range 20 to 264 VAC Leakage current 1.7 mA max. Control output (Switching capacity) 5 to 300 mA Indicator Operation indicator (red) Operation mode NO Ambient temperature (Operating) -40 to 85 ℃ Ambient temperature (Storage) -40 to 85 ℃ Ambient humidity (Operating) 35 to 95 % Ambient humidity (Storage) 35 to 95 % Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃±15% max. of sensing distance at 23 ℃ in the temperature range of -40 to 85 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 4,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Weight Package: Approx. 150 g Material Case: BrassSensing surface: Polybutylene terephthalate (PBT)Clamping nuts: Brass nickel platingToothed washers: Iron zinc plating Accessories Instruction manual

Read more less

Number Of Pedals One Material Plastic Voltage 6A / 250V AC Usage/Application Industrial Switch Type Push Button Current Rating IP53 Brand Pizzato Material/Body Plastic Color yellow Switch Configuration SPST-NO + SPST-NC Leads screw terminals Packaging Type safety lever with foot protection cover Model Name/Number PX 10110 Weight 717.2 g Availability In Stock

Read more less

Number Of Pedals One Material Plastic Voltage 6A / 250V AC Usage/Application Industrial Switch Type Push Button Current Rating IP53 Brand Pizzato Material/Body Plastic Color yellow Switch Configuration SPST-NO + SPST-NC Leads screw terminals Packaging Type safety lever with foot protection cover Model Name/Number PX 10110 Weight 717.2 g Availability In Stock

Read more less

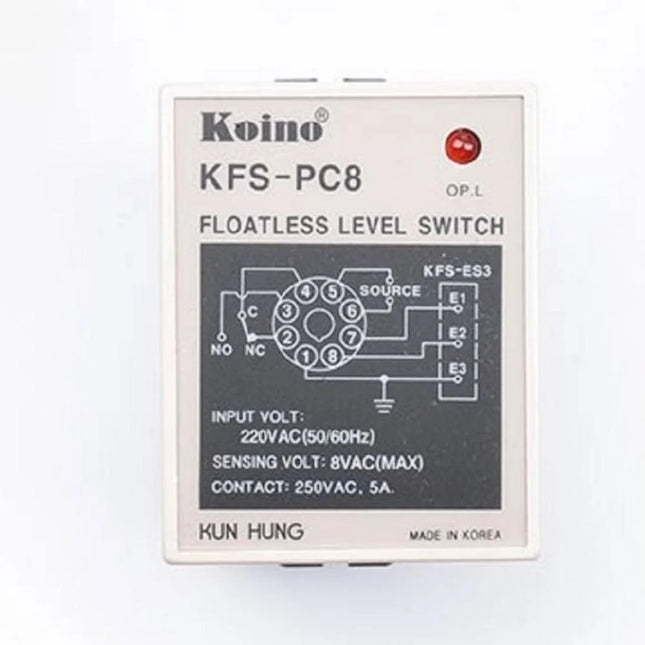

Material ABS Plastic Operation Type Fully Automatic Brand Koino Model Name/Number KFS PC8 Rated Voltage 220 VAC Frequency 60 Hz Operating Indicator Red LED Power Consumption 3.2 VA Max Ambient Operating Temperature 85 Degree C Weight 230g Series KFS Availability In Stock Description: Water level controller for the various purpose Electrode rods Voltage (Sencond oltage ) is operated by AC8V High sensitivity product is available by order made

Read more less

Size/ Diameter 6MM Media AIR Brand FESTO Material PU Roll Size 50M Country of Origin Made in India
