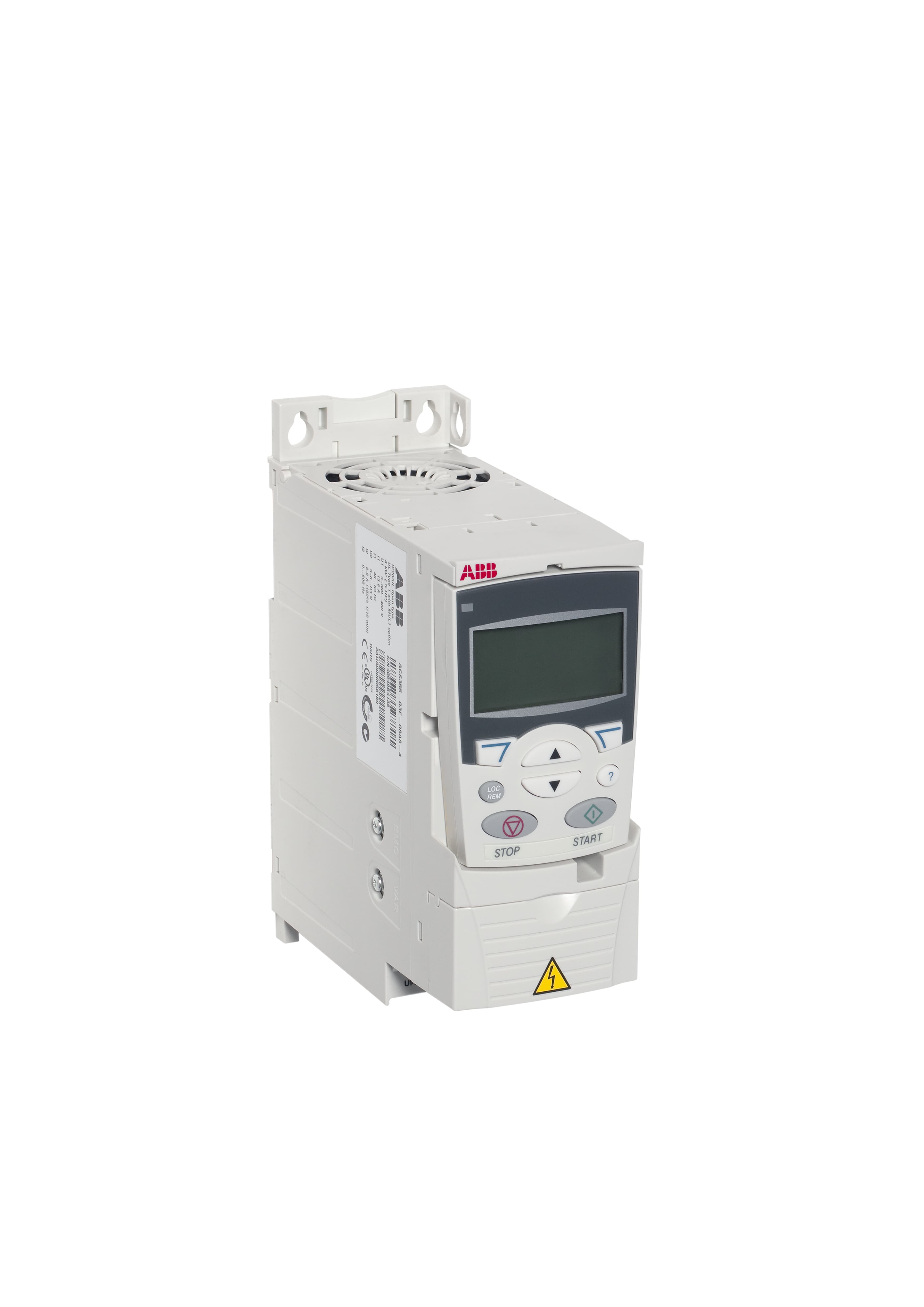

AC DRIVE 3PH,ACS355-03E-02A4-4,ABB

Description

General Information

Global Commercial Alias:
ACS355-03E-02A4-4
Product ID:
3AUA0000058184
ABB Type Designation:
ACS355-03E-02A4-4
EAN:
6438177223597
Catalog Description:
LV AC machinery drive module, IEC: Pn 0.75 kW, 2.4 A (ACS355-03E-02A4-4)
Long Description:
The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications. The drive is user-friendly, yet it provides a wide range of built-in technology such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.

Ordering

Customs Tariff Number:
85044085
HS Code:
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description:
ACS355-03E-02A4-4 Pn 0,75kW, I2n 2,4A IP20.
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece

Dimensions

Product Net Weight:
1.7 kg
Product Net Depth / Length:
161 mm
Product Net Height:
239 mm
Product Net Width:
70 mm
Package Level 1 Depth / Length:
350 mm
Package Level 1 Height:
130 mm
Package Level 1 Width:
220 mm
Package Level 1 Units:
1 carton

Certificates and Declarations

Declaration of Conformity - CE:
3AXD10000499279
REACH Date:
20241203
REACH Declaration:
9AKK107992A7060
REACH Information:
True - contains substances > 0.1 mass percentage
RoHS Date:
20230303
RoHS Information:
3AXD10000499279
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Number of Phases:
3-phase
Degree of Protection:
IP20
Enclosure Type NEMA:
Open Type
Multiple Battery Information:
No battery / cell included
Frequency (f):
50/60 Hz
Frame Size:
R1
Input Voltage (Uin):
380 … 480 V
Mounting Type:
Module for cabinet building
Communication Protocol:
MODBUS
LON
DeviceNet
PROFIBUS
CAN
EtherNet/IP
PROFINET IO
TCP/IP
Other Bus Systems
Number of Hardware Interfaces:
Industrial Ethernet 0
PROFINET 0
RS-232 1
RS-422 0
RS-485 1
Serial TTY 0
USB 0
Parallel 0
Other 1
Includes:
Without control unit
Without optical interface
With PC connection
Analog Inputs:
2
Analog Outputs:
1
Number of Digital In/Outputs:
5/1
Output Current, Normal Use (In):
2.4 A
Output Power, Normal Use (Pn):
0.75 kW
Output Power, Light-Overload Use (PLD):
0.75 kW
Power Consumption (@Pcons):
36 W
Apparent Power Output:
1.7 kV·A
Efficiency Level:
IE2
Standby Loss:
7 W
Complete Drive Module Efficiency (IEC61800-9-2):
Operating Point
Frequency / Current		 Absolute
Loss		 Relative
Loss		 Efficiency
0 / 25 %
24 W
1.4 %
78.9 %
0 / 50 %
26 W
1.5 %
86.9 %
0 / 100 %
31 W
1.8 %
91.2 %
50 / 25 %
24 W
1.5 %
88.3 %
50 / 50 %
27 W
1.6 %
92.9 %
50 / 100 %
33 W
2.0 %
95.2 %
90 / 50 %
29 W
1.7 %
95.7 %
90 / 100 %
36 W
2.2 %
97.0 %
Temperature Rating:
Maximum 40 °C

External Classifications and Standards

ETIM 9:
EC001857 - Frequency converter =< 1 kV
UNSPSC:
39122001

Environmental

SCIP:
89151BC5-DE13-4ADE-AA5F-5835A88F8822 Finland
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

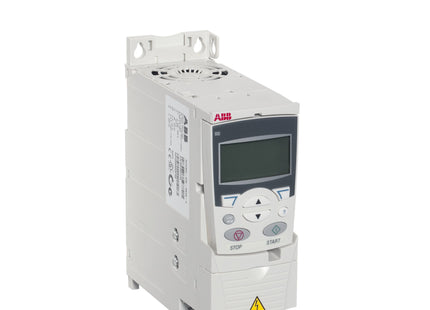

AC DRIVE 3PH,ACS355-03E-02A4-4,ABB

Product form

General Information Global Commercial Alias: ACS355-03E-02A4-4 Product ID: 3AUA0000058184 ABB Type Designation: ACS355-03E-02A4-4 EAN: 6438177223597 Catalog Description: LV AC machinery... Read more

Rs. 21,590.00 Rs. 13,500.00 Incl. VAT

      Description

      General Information

      Global Commercial Alias:
      ACS355-03E-02A4-4
      Product ID:
      3AUA0000058184
      ABB Type Designation:
      ACS355-03E-02A4-4
      EAN:
      6438177223597
      Catalog Description:
      LV AC machinery drive module, IEC: Pn 0.75 kW, 2.4 A (ACS355-03E-02A4-4)
      Long Description:
      The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications. The drive is user-friendly, yet it provides a wide range of built-in technology such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.

      Ordering

      Customs Tariff Number:
      85044085
      HS Code:
      850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
      Invoice Description:
      ACS355-03E-02A4-4 Pn 0,75kW, I2n 2,4A IP20.
      Made To Order:
      No
      Minimum Order Quantity:
      1 piece
      Order Multiple:
      1 piece
      Quote Only:
      No
      Selling Unit of Measure:
      piece

      Dimensions

      Product Net Weight:
      1.7 kg
      Product Net Depth / Length:
      161 mm
      Product Net Height:
      239 mm
      Product Net Width:
      70 mm
      Package Level 1 Depth / Length:
      350 mm
      Package Level 1 Height:
      130 mm
      Package Level 1 Width:
      220 mm
      Package Level 1 Units:
      1 carton

      Certificates and Declarations

      Declaration of Conformity - CE:
      3AXD10000499279
      REACH Date:
      20241203
      REACH Declaration:
      9AKK107992A7060
      REACH Information:
      True - contains substances > 0.1 mass percentage
      RoHS Date:
      20230303
      RoHS Information:
      3AXD10000499279
      RoHS Status:
      Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

      Technical

      Number of Phases:
      3-phase
      Degree of Protection:
      IP20
      Enclosure Type NEMA:
      Open Type
      Multiple Battery Information:
      No battery / cell included
      Frequency (f):
      50/60 Hz
      Frame Size:
      R1
      Input Voltage (Uin):
      380 … 480 V
      Mounting Type:
      Module for cabinet building
      Communication Protocol:
      MODBUS
      LON
      DeviceNet
      PROFIBUS
      CAN
      EtherNet/IP
      PROFINET IO
      TCP/IP
      Other Bus Systems
      Number of Hardware Interfaces:
      Industrial Ethernet 0
      PROFINET 0
      RS-232 1
      RS-422 0
      RS-485 1
      Serial TTY 0
      USB 0
      Parallel 0
      Other 1
      Includes:
      Without control unit
      Without optical interface
      With PC connection
      Analog Inputs:
      2
      Analog Outputs:
      1
      Number of Digital In/Outputs:
      5/1
      Output Current, Normal Use (In):
      2.4 A
      Output Power, Normal Use (Pn):
      0.75 kW
      Output Power, Light-Overload Use (PLD):
      0.75 kW
      Power Consumption (@Pcons):
      36 W
      Apparent Power Output:
      1.7 kV·A
      Efficiency Level:
      IE2
      Standby Loss:
      7 W
      Complete Drive Module Efficiency (IEC61800-9-2):
      Operating Point
      Frequency / Current      		 Absolute
      Loss      		 Relative
      Loss      		 Efficiency
      0 / 25 %
      24 W
      1.4 %
      78.9 %
      0 / 50 %
      26 W
      1.5 %
      86.9 %
      0 / 100 %
      31 W
      1.8 %
      91.2 %
      50 / 25 %
      24 W
      1.5 %
      88.3 %
      50 / 50 %
      27 W
      1.6 %
      92.9 %
      50 / 100 %
      33 W
      2.0 %
      95.2 %
      90 / 50 %
      29 W
      1.7 %
      95.7 %
      90 / 100 %
      36 W
      2.2 %
      97.0 %
      Temperature Rating:
      Maximum 40 °C

      External Classifications and Standards

      ETIM 9:
      EC001857 - Frequency converter =< 1 kV
      UNSPSC:
      39122001

      Environmental

      SCIP:
      89151BC5-DE13-4ADE-AA5F-5835A88F8822 Finland
      WEEE Category:
      5. Small Equipment (No External Dimension More Than 50 cm)
