| Connector Type |
Screw clamp terminal |
| Feature |
Simple commissioning, robust design, integrated EMC filter |
| Shape |
Rectangular |
| Overheating Protection |
Other, Yes, integrated |
| Operating Temperature |
-10AdegC to +50AdegC (without derating) |
| Surface Finish |
Matte / Industrial coating |
| Efficiency |
>=97% |
| Mounting Type |
Wall mounting |
| Power Factor |
>0.95 |
| Humidity % |
5% to 95% (non-condensing) |
| Color |
Gray / Green |
| IP Rating |
IP20 |
| Insulation Material |
Thermoplastic and die-cast aluminium |
| Product Type |

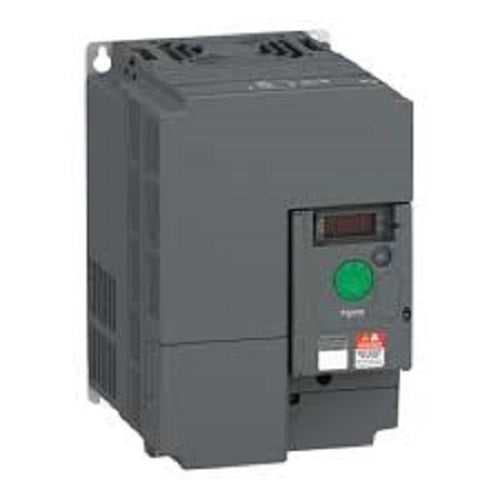

Variable Frequency Drive (VFD) |
| Application |
Industrial motor speed control, HVAC, Pumps, Conveyors |
| Protection Level |
Other, Overvoltage, undervoltage, short-circuit, overload |
| Frequency (MHz) |
0.5 to 400 Hz |
| Rated Voltage |
Three-phase 380...415 V AC (-15% to +10%) |
| Energy Consumption |
Optimized per application load |
| Output Type |
PWM (Pulse Width Modulation) |
| Dimension (L*W*H) |
225 x 145 x 255 mm |
| Weight |
12.5 kg |
| Phase |
Three Phase |
| Size |
225 x 145 x 255 mm |
| Input Voltage |
Three-phase 380 to 415 V AC |
| Material |
Plastic, Aluminum |
| Connection Type |
Screw terminal |
| Returnable |
No |
| Unit Type |
Piece/Pieces |
| Product Unit |
1 Piece/Pieces |
| Moq |
1 |
| Mop |
1 |
| Price Type |
fixed |
| Stock Quantity |
1 |
| Price |
20500.00 INR (Approx.) |
| Currency |
INR |
| Brand Name |
Schneider |
| Color |
Gray / Green |
| Minimum Order Quantity |
1 |
| Minimum Ordered Packs |
1 |
| GSTIN |
0% |
