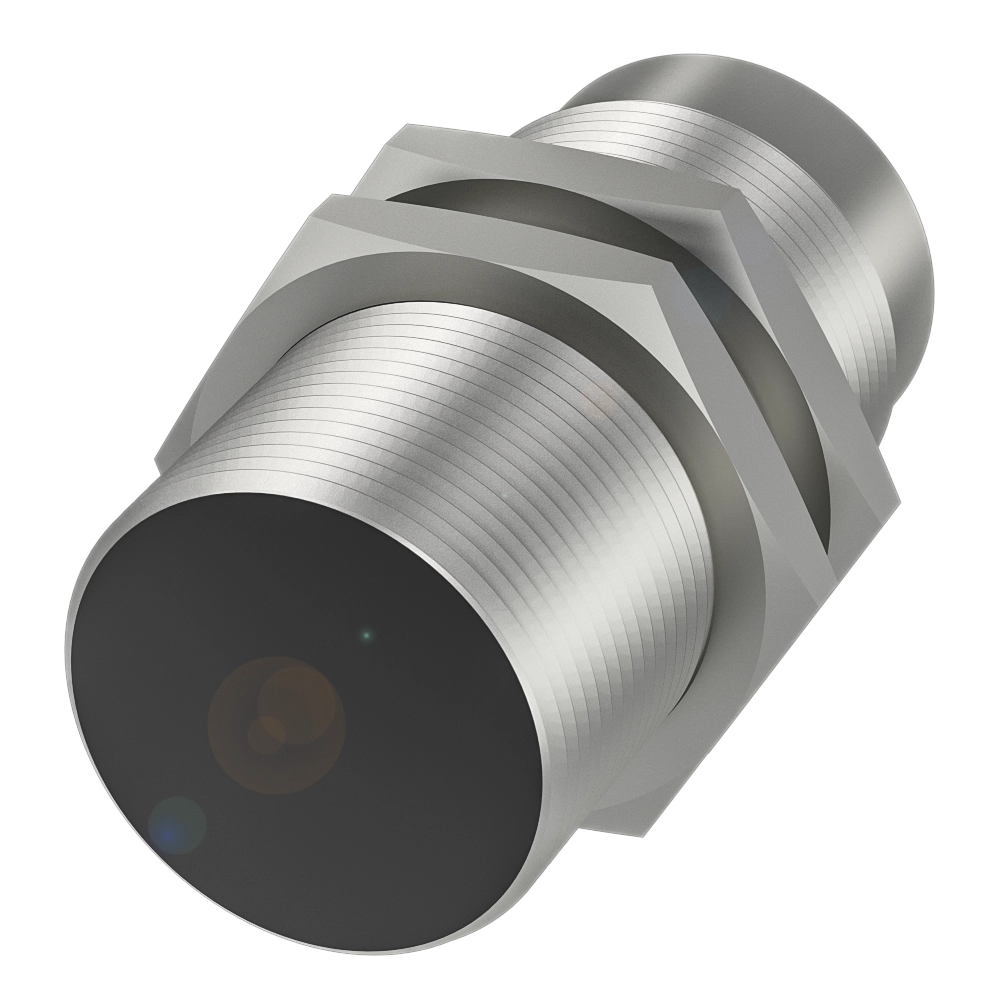

BES02YL balluff

Description

Dimension Ø 30 x 73.5 mm Ø 30 x 73.5 mm
Style Housing M30x1.5 M30x1.5
Installation quasi-flush quasi-flush
Range 22 mm 22 mm
Switching output PNP Normally closed (NC) PNP Normally open (NO)
Switching frequency 200 Hz 200 Hz
Housing material Brass, Chrome-plated Brass, Chrome-plated
Material sensing surface PBT PBT
Connection Connector, M12x1-Male, 4-pin Connector, M12x1-Male, 4-pin
Operating voltage Ub 10...30 VDC 10...30 VDC
Ambient temperature -25...70 °C -25...70 °C
IP rating IP67 IP67
Approval/Conformity CE
cULus
WEEE		 cULus
CE
WEEE

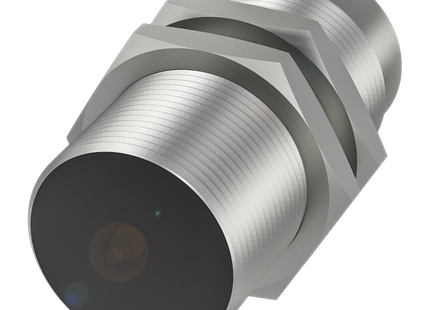

BES02YL balluff

Product form

Dimension Ø 30 x 73.5 mm Ø 30 x 73.5 mm Style Housing M30x1.5 M30x1.5 Installation quasi-flush quasi-flush Range 22... Read more

Rs. 961.00 Excl. VAT

  • Shipped today? Order within: Jun 08, 2026 17:00:00 -0400

    Description

    Dimension Ø 30 x 73.5 mm Ø 30 x 73.5 mm
    Style Housing M30x1.5 M30x1.5
    Installation quasi-flush quasi-flush
    Range 22 mm 22 mm
    Switching output PNP Normally closed (NC) PNP Normally open (NO)
    Switching frequency 200 Hz 200 Hz
    Housing material Brass, Chrome-plated Brass, Chrome-plated
    Material sensing surface PBT PBT
    Connection Connector, M12x1-Male, 4-pin Connector, M12x1-Male, 4-pin
    Operating voltage Ub 10...30 VDC 10...30 VDC
    Ambient temperature -25...70 °C -25...70 °C
    IP rating IP67 IP67
    Approval/Conformity CE
    cULus
    WEEE    		 cULus
    CE
    WEEE
