Description

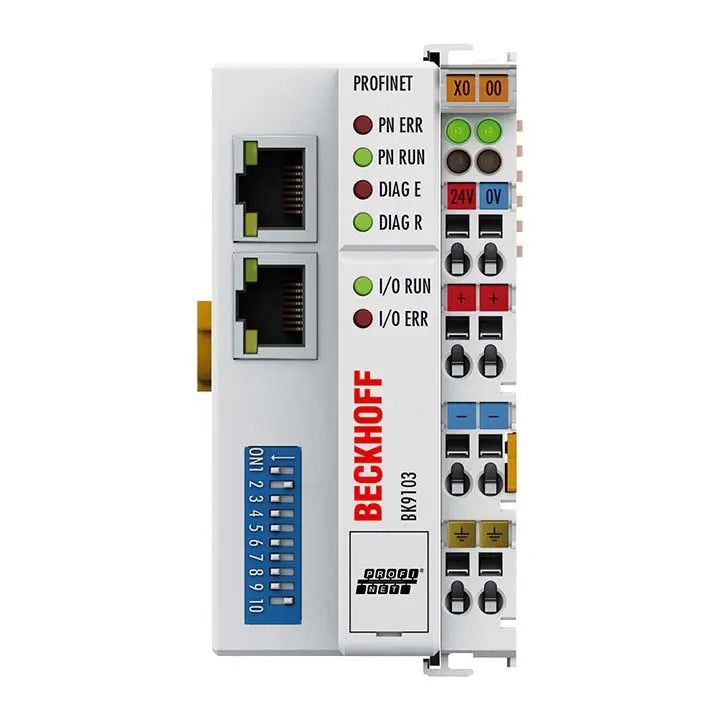

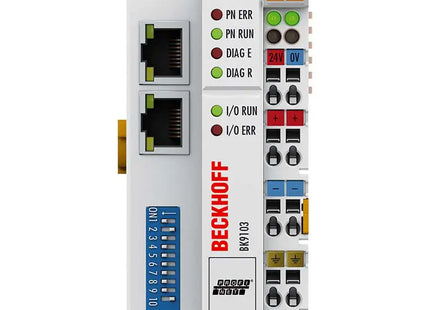

The BK9103 Bus Coupler connects PROFINET RT with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals (255 with K-bus extension) and one end terminal.
The Bus Couplers recognize the terminals to which they are connected, and perform the assignment of the inputs and outputs to the words of the process image automatically. The BK9103 Bus Coupler supports 10 Mbit/s and 100 Mbit/s Ethernet. Connection is through normal RJ45 connectors. The IP address is set on the DIP switch (offset to a freely selectable start address). In networks with DHCP (a service for the allocation of the logical IP address to the physical node address [MAC-ID]) the Bus Coupler obtains its IP address from the DHCP server.
The BK9103 contains a 3-port switch. Two ports operate external on RJ45 connectors and can be utilized. The I/O stations can thus be configured with a line topology instead of the classic star topology. In many applications this significantly reduces the wiring effort and the cabling costs. The maximum distance between two couplers is 100 m. Up to 20 BK9103 Bus Couplers are cascadable, so that a maximum line length of 2 km can be achieved.
PROFINET is the open Industrial Ethernet standard of the PNO (PROFIBUS Nutzerorganisation). Internationally established IT standards such as TCP/IP are used for communication. PROFINET RT describes the data exchange between controllers and field devices and can be used in standard Ethernet networks. Commercial switches are used for networking purposes.
| Technical data |
BK9103 |
| Number of Bus Terminals |
64 (255 with K-bus extension) |
| Max. number of bytes fieldbus |
512 byte input and 512 byte output |
| Digital peripheral signals |
512 inputs/outputs |
| Analog peripheral signals |
256 inputs/outputs |
| Configuration |
via KS2000 |
| Protocol |
PROFINET RT (Class B) |
| Data transfer rates |
10/100 Mbit/s, automatic recognition of the transmission rate |
| Bus interface |
2 x RJ45 (2-channel switch) |
| Data transfer medium |
4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s)
|
| Power supply |
24 V DC (-15%/+20%) |
| Input current |
70 mA + (total K-bus current)/4, 500 mA max. |
| Starting current |
2.5 x continuous current |
| Recommended fuse |
≤ 10 A |
| Current supply K-bus |
1750 mA |
| Power contacts |
max. 24 V DC/max. 10 A |
| Electrical isolation |
500 V (power contact/supply voltage/fieldbus) |
| Topology |
line or star wiring |
| Distance between stations |
100 m between hub/switch and bus coupler or between bus coupler and bus coupler |
| Weight |
approx. 170 g |
| Operating temperature |
-25…+60°C |
| Storage temperature |
-40…+85°C |
| Relative humidity |
95%, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. |
IP20/variable |
| Approvals/markings |
CE, CCC, UL, ATEX, IECEx, DNV |
| Ex marking |
ATEX: II 3 G Ex ec IIC T4 Gc
IECEx: Ex ec IIC T4 Gc |
