Main function
Encoder (Linear)
Product series / family name
Industrial sensors > Magnetostrictive
Sub-range name

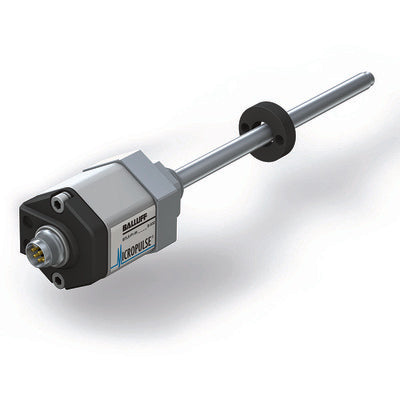

Magnetostrictive sensors with standard rod
Functions
Linear inductive encoder
Design
for 1 magnet
free-running (1ms refresh rate)
Supply voltage (DC)
20-28Vdc (24Vdc nom.)
Shape
Hexagonal housing with rod
Diameter
10.2mm diam. rod
Connection type
Pre-equipped with a 10-pin military standard MS/10 connector
Communication protocol
RS-422
Mounting mode
Threaded (3/4"-16 UNF) flange mounting
Digital outputs
1 x digital output (RS-422; 416kHz quadrature interface)
Resolution
≤ 0.01mm / 10μm resolution
Measurement accuracy
+/-0.02%FS max. non-linearity
< 11μm repeatability
≤22μm reproductibility
Degree of protection
IP67
Material
Anodized Aluminium housing
Ambient air temperature for operation
-40...+185°F / -40...+85 °C
Current consumption
100mA current consumption max. at 24Vdc
Customs Tariff Number
9031808085
Order code / Manufacturer SKU
BTL0626
Manufacturer product status
Commercialized
Equivalent to
BTL5Q1131M0610ZS140
Compliant with standard(s)
cULus
CE
WEEE
EAC
Benefits
BTL5 - Rod - Z series benefits
- exceptionally well-suited for use in hydraulic cylinders for position feedback / for molding and rolling mills or for elevator and hoisting technology
- the sensors are installed in the pressure area of the hydraulic cylinder and have the same pressure resistance as the cylinder itself
