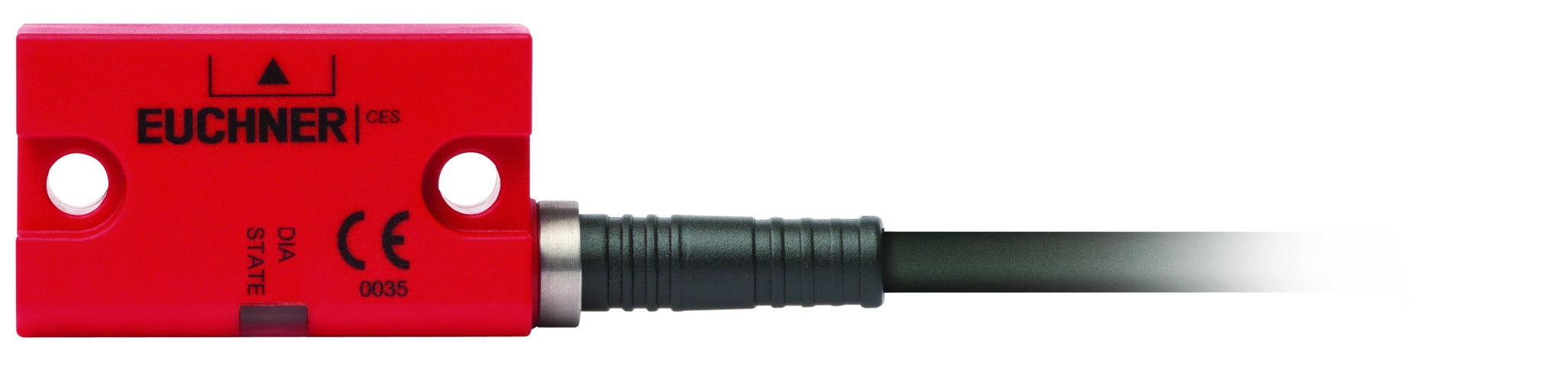

| Fuse |
|
| external (operating voltage) |
0.25 ... 8 A |
| Rated insulation voltage Ui
|
30 V |
| Rated impulse voltage Uimp
|
0.5 kV |
| Operating voltage DC |
|
| UB
|
24 V DC -15% ... +15% regulated, residual ripple<5%, PELV
|
| Turn-on time |
|
| Safety outputs |
max. 300 ms |
| EMC protection requirements |
Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3 |
max. 260 ms |
| Safety class |
III |
| Current consumption |
|
| no load on outputs |
max. 35 mA |
| Degree of contamination (external, according to EN 60947-1) |
3 |
|
Monitoring output OD |
| Output type |
p-switching, short circuit-proof |
| Output voltage |
0.8 x UB ... UB V DC |
| Switching current |
max. 50 mA |
|
Safety outputs FO1A/FO1B |
| Output type |
Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage |
|
| HIGH U(FO1A) / U(FO1B) |
UB-1.5V ... UB V DC
|
| LOW U(FO1A) / U(FO1B) |
0 ... 1 V DC |
| rated conditional short-circuit current |
100 A |
| Discrepancy time |
max. 10 ms |
| Utilization category |
|
| DC-13 |
24V 150mA
|
| Off-state current Ir |
max. 0.25 mA |
| Switching current |
|
| per safety output |
1 ... 150 mA |
| Test pulse duration |
max. 0.3 ms
|
| Test pulse interval |
min. 100 ms |
