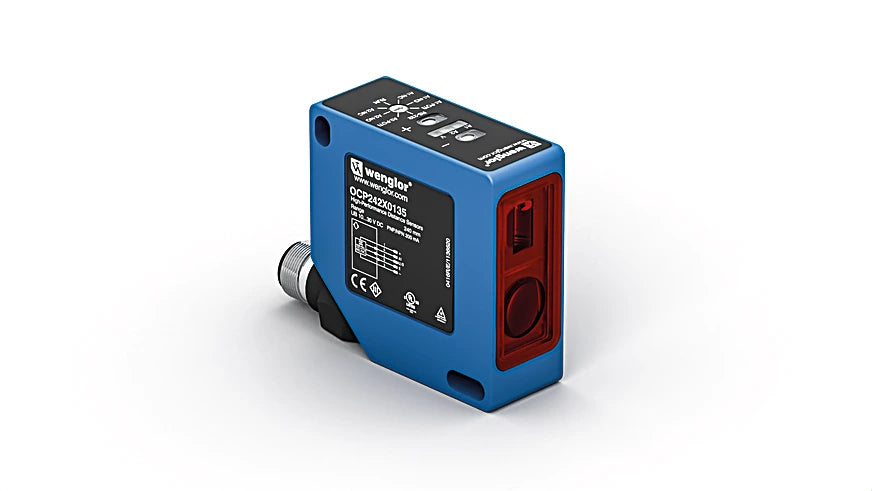

CP35MHT80S957

Description

Optical Data

Working Range 50 ... 350 mm
Measuring Range 300 mm
Reproducibility maximum 1,200 µm
Reproducibility: 1 Sigma 400 µm
Linearity Deviation 1,000 µm
Light Source Laser (red)
Wavelength 660 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10,000 Lux
Light Spot Diameter see Table 1





Electrical Data

Supply Voltage 18 ... 30 V DC
Current Consumption (Ub = 24 V) < 80 mA
Measuring Rate 800 /s
Response Time 1,250 µs
Temperature Drift < 75 µm/K
Temperature Range -25 ... 50 °C
Analog Output 0...10 V
Load Current Voltage Output < 1 mA
Current Output Load Resistance < 500 Ohm
Protection Class III
FDA Accession Number 0820590-000

Mechanical Data

Housing Material Plastic, ABS
Plastic, PC
Optic Cover Plastic, PMMA
Degree of Protection IP67
Connection M12 × 1; 8-pin
Weight 45 g

Safety-relevant Data

MTTFd (EN ISO 13849-1) 713.97 a

General Data

Scope of delivery 1 × initial start-up instructions
1 × laser warning sign
1 × sensor





Output

Analog Output yes

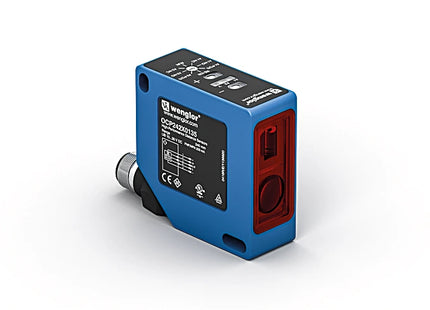

CP35MHT80S957

Product form

Optical Data Working Range 50 ... 350 mm Measuring Range 300 mm Reproducibility maximum 1,200 µm Reproducibility: 1 Sigma 400 µm Linearity Deviation 1,000 µm Light Source Laser... Read more

Rs. 84,302.00 Excl. VAT

    Description

    Optical Data

    Working Range 50 ... 350 mm
    Measuring Range 300 mm
    Reproducibility maximum 1,200 µm
    Reproducibility: 1 Sigma 400 µm
    Linearity Deviation 1,000 µm
    Light Source Laser (red)
    Wavelength 660 nm
    Service Life (T = +25 °C) 100,000 h
    Laser Class (EN 60825-1) 2
    Max. Ambient Light 10,000 Lux
    Light Spot Diameter see Table 1





    Electrical Data

    Supply Voltage 18 ... 30 V DC
    Current Consumption (Ub = 24 V) < 80 mA
    Measuring Rate 800 /s
    Response Time 1,250 µs
    Temperature Drift < 75 µm/K
    Temperature Range -25 ... 50 °C
    Analog Output 0...10 V
    Load Current Voltage Output < 1 mA
    Current Output Load Resistance < 500 Ohm
    Protection Class III
    FDA Accession Number 0820590-000

    Mechanical Data

    Housing Material Plastic, ABS
    Plastic, PC
    Optic Cover Plastic, PMMA
    Degree of Protection IP67
    Connection M12 × 1; 8-pin
    Weight 45 g

    Safety-relevant Data

    MTTFd (EN ISO 13849-1) 713.97 a

    General Data

    Scope of delivery 1 × initial start-up instructions
    1 × laser warning sign
    1 × sensor





    Output

    Analog Output yes
