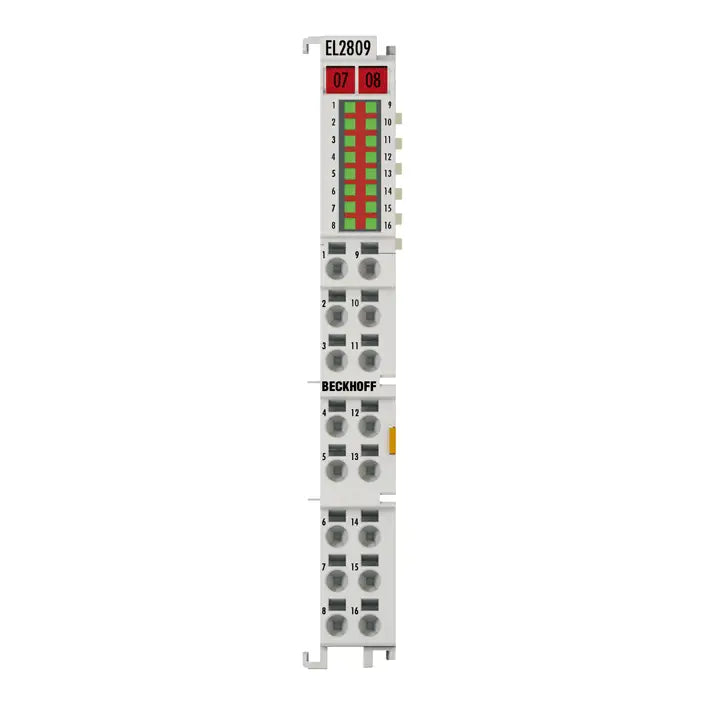

| Connection technology |
1-wire |
| Number of outputs |
16 |
| Nominal voltage |
24 V DC (-15%/+20%) |
| Load type |
ohmic, inductive, lamp load |
| Distributed clocks |
– |
| Max. output current |
0.5 A (short-circuit proof) per channel |
| Short-circuit current |
typ. < 2 A |
| Reverse voltage protection |
yes |
| Breaking energy |
< 150 mJ/channel |
| Switching times |
typ. TON: 60 µs, typ. TOFF: 300 µs |
| Current consumption E-bus |
typ. 140 mA |
| Current consumption power contacts |
typ. 35 mA + load |
| Bit width in the process image |
16 outputs |
| Configuration |
no address or configuration setting |
| Electrical isolation |
500 V (E-bus/field potential) |
| Weight |
approx. 70 g |
| Operating temperature |
-25…+60°C |
| Storage temperature |
-40…+85°C |
| Relative humidity |
95%, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. |
IP20/variable |
| Approvals/markings |
CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Ex marking |
ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc |
