| Product Number |
EX-14A |
| Part Number |
EX-14A |
| Products Name |

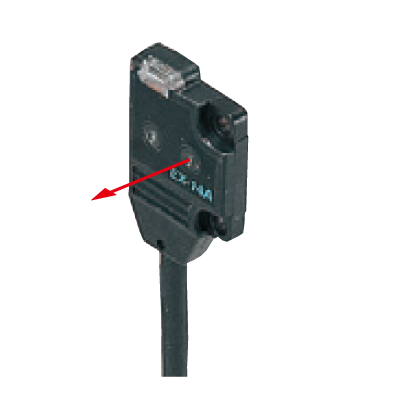

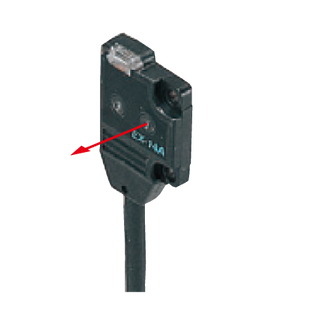

Ultra-slim Photoelectric Sensor |
| Product details |
Convergent reflective (Diffused beam type) [Front sensing] |
| Applicable regulations and certifications |
CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL Recognition certification
(Note) : Conformed from December 2021 production. |
| Sensing range |
2 to 25 mm 0.079 to 0.984 in (Conv. point: 10 mm 0.394 in)
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object. |
| Min. sensing object |
ø0.1 mm ø0.004 in copper wire (Completely beam interrupted object) (Setting distance: 10 mm 0.394 in) |
| Hysteresis |
15 % or less of operation distance
(Note) The sensing range and the hysteresis are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object. |
| Repeatability(perpendicular to sensing axis) |
0.1 mm 0.004 in or less |
| Supply voltage |
12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption |
13 mA or less |
| Output |
NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current),1 V or less (at 16 mA sink current) |
| Output:Utilization category |
DC-12 or DC-13 |
| Output:Short-circuit protection |
Incorporated |
| Response time |
0.5 ms or less |
| Operation indicator |
Orange LED (lights up when the output is ON) |
| Incident beam indicator |
- |
| Stability indicator |
Green LED (lights up under stable light received condition or stable dark condition) |
| Pollution degree |
3 (Industrial environment) |
| Protection |
IP67 (IEC) |
| Ambient temperature |
-25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ |
| Ambient humidity |
35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance |
Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability |
1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance |
20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance |
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Shock resistance |
500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element |
Red LED (Peak emission wavelength: 680 nm 0.027 mil, modulated) |
| Material |
Enclosure: Polyarylate
Lens: Polyarylate |
| Cable |
0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long |
| Cable extension |
Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable.
(Note) : For safety applications, do not exceed 30 m 98.425 ft.
|
| Weight |
Net weight: 20 g approx
Gross weight: 40 g approx |
| Accessory |
Mounting screws: 1 set |
