FX-102P

Description

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
Item Specifications
Product Number FX-102P
Part Number FX-102P

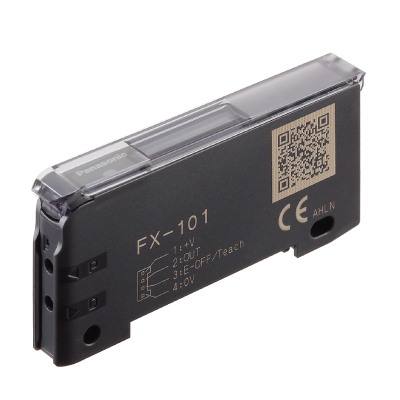

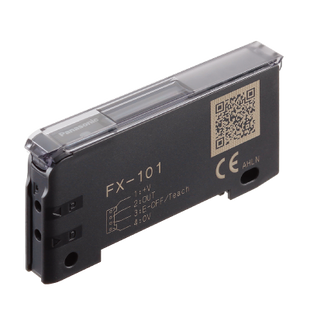

Products Name Digital Fiber Sensor
Product details Long sensing range type
The price of the product Please contact our office
Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Listing certification
Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Power consumption Normal operation: 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)
ECO mode: 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage)
Output PNP open-collector transistor
- Maximum source current: 100 mA
- Applied voltage: 30 V DC or less (between output and +V)
- Residual voltage: 1.5 V or less (at 100 mA source current)
Output:Output operation Selectable either Light-ON or Dark-ON, at SET mode
Output:Short-circuit protection Incorporated
External input PNP non-contact input
- Signal condition
High: +4 V to +V DC (Sink current 0.5 to 3 mA)
Low: 0 to +0.6 V DC or Open
- Input impedance: 10 kOhm approx.
Response time Emission frequency 1: 2.5 ms or less (factory default setting)
Emission frequency 2: 2.8 ms or less
Emission frequency 3: 3.2 ms or less
Emission frequency 4: 5.0 ms or less
Sensitivity setting 2-point teaching / Limit teaching / Full-auto teaching
Operation indicator Orange LED (lights up when the output is ON)
Digital display 4 digits (green) + 4 digits (red) LCD display
Fine sensitivity adjustment function Incorporated
Timer function ON-delay / OFF-delay timer, switchable either effective or ineffective
[Timer period: 1 ms, 5 ms, 10 ms, 20 ms, 40 ms, 50 ms, 100 ms, 500 ms, 1,000 ms]
Emission amount setting function 3-level + Auto setting
Interference prevention function Incorporated Emission frequency selection method (Functions at emission frequency 1, 2, 3 or 4)
(Note) When using the interference prevention function, set the emission frequencies for the amplifiers to be covered by the interference prevention function to different frequency values.
Ambient temperature –10 to +55 ℃ +14 to +131 ℉
(If 4 to 7 units are mounted close together: –10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are mounted close together: –10 to +45 ℃ +14 to +113 ℉) (No dew condensation or icing allowed),
Storage: –20 to +70 ℃ –4 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
(Note) The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only.
Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
(Note) The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only.
Vibration resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock resistance 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
Emitting element (modulated) Red LED (Peak emission wavelength: 643 nm 0.025 mil)
Material Enclosure: Polycarbonate
Key switch: Polycarbonate
Fiber lock lever: PBT
Connection method Connector
(Note) Connector attached cable CN-14A-C2 is not attached to the models that have no ''-CC2'' at the end of the model Nos.Make sure to use the optional connector attached cable CN-14A(-R)-Cx or the connector CN-14A, or a connector manufactured by J.S.T. Mfg., Ltd.(contact: SPHD-001T-P0.5, housing: PAP-04V-S).
Cable length Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 15 g approx.
Gross weight: 35 g approx.
Accessory FC-FX-1(Protection cover): 1 pc.
