FX3S-20MT/ES

Description

FA-COM PLC: Main Unit

Type FX3S
Power Supply (V) 100-240
Current Type AC
Program Memory 16K STEPS
Program Memory Unit EEPROM
Integrated Digital Inputs 12
Integrated Digital Outputs 8
Output Type TRANSISTOR
Output Logic SINK
Local I/O Points 30
Local + Remote I/O Points 30
Expandable NO
Cycle Time LD (ns) 210
Cycle Time MOV (ns) 500
USB 1
RS-422 1
Power Consumption (W) 20
Buffer Battery NO
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
Series MELSEC-F SERIES

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,DNV GL,LR,NK
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 75
Height (mm) 90
Depth (mm) 75
Weight (kg) 0,349

Life Cycle

Serial No. on the Box QR1

Campaigns

Selling Status Standard

Product Packaging

Cardboard (g) 73
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 0
Wood (g) 0
Glass (g) 0
Others (g) 0

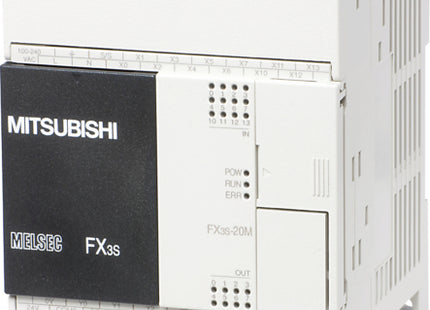

FX3S-20MT/ES

Product form

FA-COM PLC: Main Unit Type FX3S Power Supply (V) 100-240 Current Type AC Program Memory 16K STEPS Program Memory Unit... Read more

Rs. 9,101.00 Excl. VAT

    Description

    FA-COM PLC: Main Unit

    Type FX3S
    Power Supply (V) 100-240
    Current Type AC
    Program Memory 16K STEPS
    Program Memory Unit EEPROM
    Integrated Digital Inputs 12
    Integrated Digital Outputs 8
    Output Type TRANSISTOR
    Output Logic SINK
    Local I/O Points 30
    Local + Remote I/O Points 30
    Expandable NO
    Cycle Time LD (ns) 210
    Cycle Time MOV (ns) 500
    USB 1
    RS-422 1
    Power Consumption (W) 20
    Buffer Battery NO
    Protection Class IP10
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    Series MELSEC-F SERIES

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC NON-COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,LR,NK
    UKCA COMPLIANT

    Product Dimensions & Weight

    Width (mm) 75
    Height (mm) 90
    Depth (mm) 75
    Weight (kg) 0,349

    Life Cycle

    Serial No. on the Box QR1

    Campaigns

    Selling Status Standard

    Product Packaging

    Cardboard (g) 73
    Other paper (g) 0
    Aluminum (g) 0
    Steel (g) 0
    Styrofoam (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Glass (g) 0
    Others (g) 0
