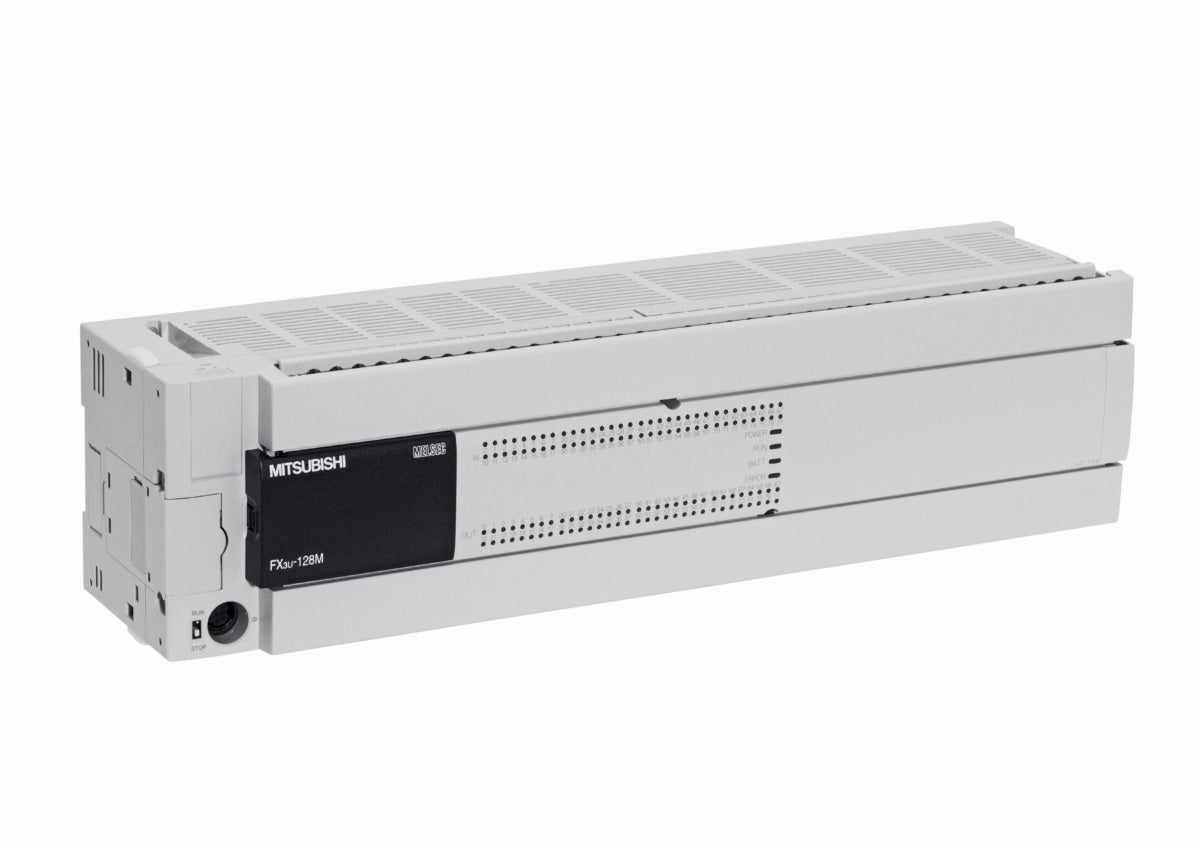

FX3U-128MT/ES-A

Description

PLC, FX3U Base Unit AC 100-240 V: 64 inputs DC 24 V; 64 transistor outputs;sink

FA-COM PLC: Main Unit

Type FX3U
Power Supply (V) 100-240
Current Type AC
Program Memory 64K STEPS
Program Memory Unit RAM
Integrated Digital Inputs 64
Integrated Digital Outputs 64
Output Type TRANSISTOR
Output Logic SINK
Local I/O Points 256
Local + Remote I/O Points 384
Expandable YES
Cycle Time LD (ns) 65
Cycle Time MOV (ns) 642
RS-422 1
Power Consumption (W) 65
Buffer Battery YES
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
Series MELSEC-F SERIES

Product Dimensions & Weight

Depth (mm) 86
Weight (kg) 1,467
Width (mm) 350
Height (mm) 90

Conformity

CE COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
EAC NON-COMPLIANT
UKCA COMPLIANT

FX3U-128MT/ES-A

Product form

PLC, FX3U Base Unit AC 100-240 V: 64 inputs DC 24 V; 64 transistor outputs;sink FA-COM PLC: Main Unit Type... Read more

Rs. 133,450.00 Rs. 62,988.40 Incl. VAT

      Description

      PLC, FX3U Base Unit AC 100-240 V: 64 inputs DC 24 V; 64 transistor outputs;sink

      FA-COM PLC: Main Unit

      Type FX3U
      Power Supply (V) 100-240
      Current Type AC
      Program Memory 64K STEPS
      Program Memory Unit RAM
      Integrated Digital Inputs 64
      Integrated Digital Outputs 64
      Output Type TRANSISTOR
      Output Logic SINK
      Local I/O Points 256
      Local + Remote I/O Points 384
      Expandable YES
      Cycle Time LD (ns) 65
      Cycle Time MOV (ns) 642
      RS-422 1
      Power Consumption (W) 65
      Buffer Battery YES
      Protection Class IP10
      Min. Ambient Temperature (°C) 0
      Max. Ambient Temperature (°C) 55
      Series MELSEC-F SERIES

      Product Dimensions & Weight

      Depth (mm) 86
      Weight (kg) 1,467
      Width (mm) 350
      Height (mm) 90

      Conformity

      CE COMPLIANT
      Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
      EAC NON-COMPLIANT
      UKCA COMPLIANT
