FX3U-64MT/ES

Description

DELIVERY PERIOD : 1-2 WEEKS

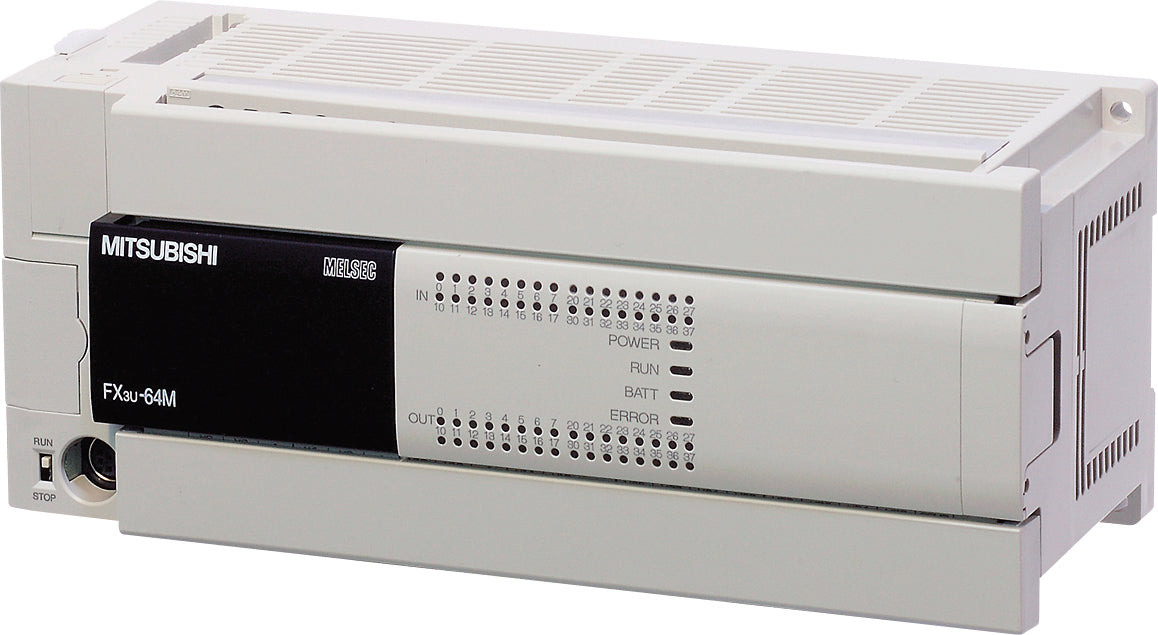

PLC, FX3U Base Unit AC 100-240 V; 32 inputs DC 24 V; 32 transistor outputs; sink

FA-COM PLC: Main Unit

Type FX3U
Power Supply (V) 100-240
Current Type AC
Program Memory 64K STEPS
Program Memory Unit RAM
Integrated Digital Inputs 32
Integrated Digital Outputs 32
Output Type TRANSISTOR
Output Logic SINK
Local I/O Points 256
Local + Remote I/O Points 384
Expandable YES
Cycle Time LD (ns) 65
Cycle Time MOV (ns) 642
RS-422 1
Power Consumption (W) 45
Buffer Battery YES
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
Series MELSEC-F SERIES

Product Dimensions & Weight

Depth (mm) 86
Weight (kg) 1
Width (mm) 220
Height (mm) 90

Conformity

CE COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
EAC NON-COMPLIANT
UKCA COMPLIANT

FX3U-64MT/ES

Product form

DELIVERY PERIOD : 1-2 WEEKS  PLC, FX3U Base Unit AC 100-240 V; 32 inputs DC 24 V; 32 transistor outputs;... Read more

Rs. 80,500.00 Rs. 37,996.00 Incl. VAT
