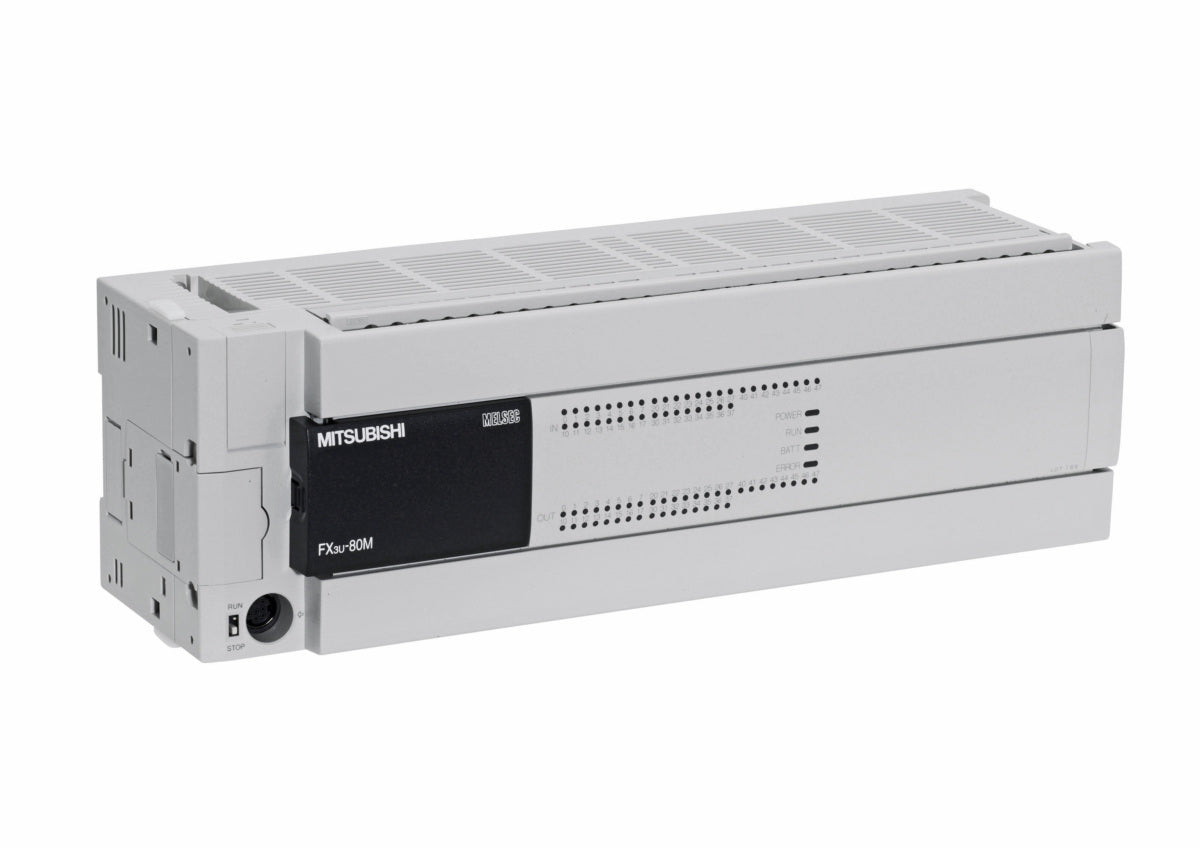

FX3U-80MT/ES

Description

PLC, FX3U Base Unit AC 100-240 V; 40 inputs DC 24 V; 40 transistor outputs; sink

FA-COM PLC: Main Unit

Type FX3U
Power Supply (V) 100-240
Current Type AC
Program Memory 64K STEPS
Program Memory Unit RAM
Integrated Digital Inputs 40
Integrated Digital Outputs 40
Output Type TRANSISTOR
Output Logic SINK
Local I/O Points 256
Local + Remote I/O Points 384
Expandable YES
Cycle Time LD (ns) 65
Cycle Time MOV (ns) 642
RS-422 1
Power Consumption (W) 50
Buffer Battery YES
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
Series MELSEC-F SERIES

Product Dimensions & Weight

Depth (mm) 86
Weight (kg) 1,2
Width (mm) 285
Height (mm) 90

Conformity

CE COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
EAC NON-COMPLIANT
UKCA COMPLIANT

FX3U-80MT/ES

Product form

PLC, FX3U Base Unit AC 100-240 V; 40 inputs DC 24 V; 40 transistor outputs; sink FA-COM PLC: Main Unit... Read more

Rs. 96,600.00 Rs. 45,595.20 Incl. VAT

  • Shipped today? Order within: Oct 03, 2025 17:00:00 -0400

    Description

    PLC, FX3U Base Unit AC 100-240 V; 40 inputs DC 24 V; 40 transistor outputs; sink

    FA-COM PLC: Main Unit

    Type FX3U
    Power Supply (V) 100-240
    Current Type AC
    Program Memory 64K STEPS
    Program Memory Unit RAM
    Integrated Digital Inputs 40
    Integrated Digital Outputs 40
    Output Type TRANSISTOR
    Output Logic SINK
    Local I/O Points 256
    Local + Remote I/O Points 384
    Expandable YES
    Cycle Time LD (ns) 65
    Cycle Time MOV (ns) 642
    RS-422 1
    Power Consumption (W) 50
    Buffer Battery YES
    Protection Class IP10
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    Series MELSEC-F SERIES

    Product Dimensions & Weight

    Depth (mm) 86
    Weight (kg) 1,2
    Width (mm) 285
    Height (mm) 90

    Conformity

    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
    EAC NON-COMPLIANT
    UKCA COMPLIANT
