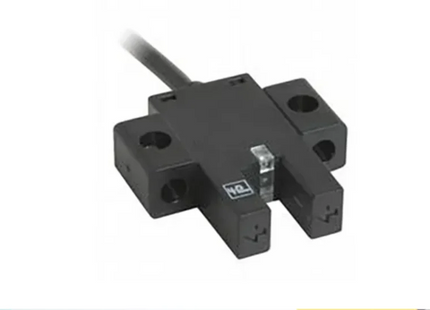

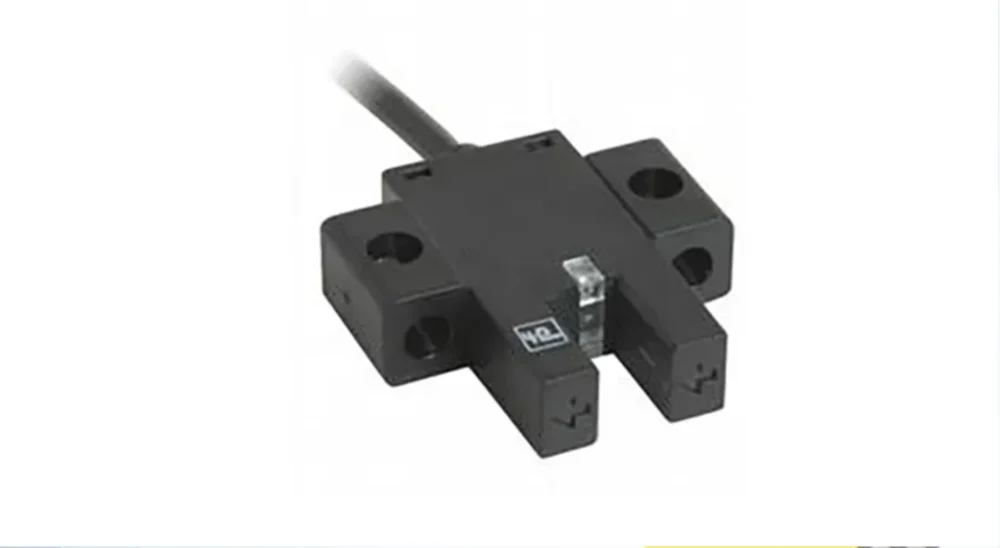

The GL5-U/43A/115 is a miniature, U-shaped photoelectric slot sensor from Pepperl + Fuchs, designed for precise detection of small parts in tight or space-constrained industrial environments.Pepperl+FuchsSouthern Controls
Key Specifications
| Feature |
Details |
| Sensing Mode |
Photoelectric (slot-style) |
| Slot Width |
5 mm (~0.197") |
| Light Source |
Infrared LED (~940 nm) |
| Output Type |
Dual complementary outputs: PNP (light-ON / dark-ON) |
| Supply Voltage |
5 V DC to 24 V DC (operational range)DigiKeySouthern Controls |
| Response Time |
Fast at 40 µs light ON / 80 µs dark ONDigiKey |
| Connection |
Fixed cable, approx. 2 m (78.74") long |
| Ingress Protection |
IP50 (protected against dust, no moisture resistance) |
| Operating Temperature |
–25 °C to +55 °C |
| Housing Form |
Compact U-shape, ideal for densely loaded setupsGalco |
