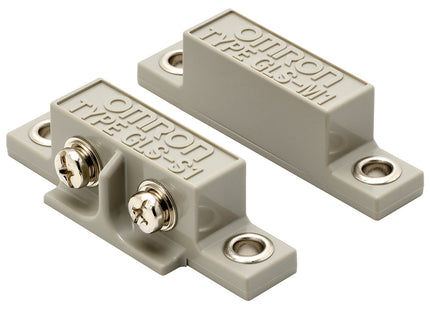

Name: GLS-1 OMRON
Brand: Industry Baba
Price: 732.0 INR
Availability: InStock

GLS-1 OMRON

Description


Sensing head size	50 mm x 14 mm x 14 mm
Type	Square type, Magnetic type
Sensing distance	15 mm
Response frequency	20 Hz max.
Ambient temperature (Operating)	-20 to 60 ℃
Ambient temperature (Storage)	-20 to 60 ℃
Ambient humidity (Operating)	35 to 85 %
Ambient humidity (Storage)	35 to 85 %
Dielectric strength	Between each terminals and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance	Destruction: 300 m/s² 3 times each in X, Y and Z directions
Degree of protection	IEC: IP40
Connection method	Terminal block models
Material	Sensor: ABS Magnet: ABS

Product form

Sensing head size 50 mm x 14 mm x 14 mm Type Square type, Magnetic type Sensing distance 15 mm... Read more

Rs. 732.00 Excl. VAT


Sensing head size	50 mm x 14 mm x 14 mm
Type	Square type, Magnetic type
Sensing distance	15 mm
Response frequency	20 Hz max.
Ambient temperature (Operating)	-20 to 60 ℃
Ambient temperature (Storage)	-20 to 60 ℃
Ambient humidity (Operating)	35 to 85 %
Ambient humidity (Storage)	35 to 85 %
Dielectric strength	Between each terminals and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance	Destruction: 300 m/s² 3 times each in X, Y and Z directions
Degree of protection	IEC: IP40
Connection method	Terminal block models
Material	Sensor: ABS Magnet: ABS
