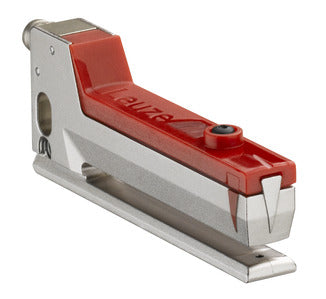

GS 63B/66.3-S8

Description

Series 63
Principle of physics Optical
Application Detection of non-transparent labels
Label width, min. 2 mm
Label gap, min. 2 mm
Medium Not transparent

Light source LED, Infrared
Wavelength 940 nm
Transmitted-signal shape Pulsed

Protective circuit Polarity reversal protection
Short circuit protected

Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 30 mA

Number of digital switching outputs 2 Piece(s)

Type Digital switching output
Voltage type DC
Switching current, max. 100 mA
Switching voltage high: ≥(UB-2V)
low: ≤ 2 V

Switching element Transistor, Push-pull
Switching principle Switching signal in label gap

Switching element Transistor, Push-pull
Switching principle Switching signal on label

Switching frequency 10,000 Hz
Response time 0.05 ms
Readiness delay 300 ms
Max. conveyor speed during teach-in 20 m/min

Number of connections 1 Piece(s)

Function Signal OUT
Voltage supply
Type of connection Connector
Thread size M8
Type Male
Material Metal
No. of pins 4 -pin
Plug outlet Horizontal (parallel to belt movement)

Design Fork
Mouth width 3 mm
Mouth depth 61 mm
Dimension (W x H x L) 11 mm x 30 mm x 80 mm
Housing material Metal
Plastic
Plastic housing PC
Metal housing Diecast zinc, chemically nickel-plated
Lens cover material Plastic/PC
Net weight 55 g
Housing color Red
Silver
Type of fastening Through-hole mounting
Via optional mounting device

Type of display LED
Number of LEDs 2 Piece(s)
Operational controls Teach button

Ambient temperature, operation -20 ... 60 °C
Ambient temperature, storage -30 ... 70 °C

Degree of protection IP 67
Protection class III
Approvals c UL US
Standards applied IEC 60947-5-2

Customs tariff number 85365019
ECLASS 5.1.4 27270909
ECLASS 8.0 27270909
ECLASS 9.0 27270909
ECLASS 10.0 27270909
ECLASS 11.0 27270909
ECLASS 12.0 27270909
ECLASS 13.0 27270909
ECLASS 14.0 27270909
ECLASS 15.0 27270909
ECLASS 16.0 27270909
ETIM 5.0 EC002720
ETIM 6.0 EC002720
ETIM 7.0 EC002720
ETIM 8.0 EC002720
ETIM 9.0 EC002720
ETIM 10.0 EC002720

GS 63B/66.3-S8

Product form

Series 63 Principle of physics Optical Application Detection of non-transparent labels Label width, min. 2 mm Label gap, min. 2... Read more

Rs. 14,196.00 Excl. VAT

  • Shipped today? Order within: Jul 02, 2026 17:00:00 -0400

    Description

    Series 63
    Principle of physics Optical
    Application Detection of non-transparent labels
    Label width, min. 2 mm
    Label gap, min. 2 mm
    Medium Not transparent

    Light source LED, Infrared
    Wavelength 940 nm
    Transmitted-signal shape Pulsed

    Protective circuit Polarity reversal protection
    Short circuit protected

    Supply voltage UB 10 ... 30 V, DC
    Residual ripple 0 ... 15 %, From UB
    Open-circuit current 0 ... 30 mA

    Number of digital switching outputs 2 Piece(s)

    Type Digital switching output
    Voltage type DC
    Switching current, max. 100 mA
    Switching voltage high: ≥(UB-2V)
    low: ≤ 2 V

    Switching element Transistor, Push-pull
    Switching principle Switching signal in label gap

    Switching element Transistor, Push-pull
    Switching principle Switching signal on label

    Switching frequency 10,000 Hz
    Response time 0.05 ms
    Readiness delay 300 ms
    Max. conveyor speed during teach-in 20 m/min

    Number of connections 1 Piece(s)

    Function Signal OUT
    Voltage supply
    Type of connection Connector
    Thread size M8
    Type Male
    Material Metal
    No. of pins 4 -pin
    Plug outlet Horizontal (parallel to belt movement)

    Design Fork
    Mouth width 3 mm
    Mouth depth 61 mm
    Dimension (W x H x L) 11 mm x 30 mm x 80 mm
    Housing material Metal
    Plastic
    Plastic housing PC
    Metal housing Diecast zinc, chemically nickel-plated
    Lens cover material Plastic/PC
    Net weight 55 g
    Housing color Red
    Silver
    Type of fastening Through-hole mounting
    Via optional mounting device

    Type of display LED
    Number of LEDs 2 Piece(s)
    Operational controls Teach button

    Ambient temperature, operation -20 ... 60 °C
    Ambient temperature, storage -30 ... 70 °C

    Degree of protection IP 67
    Protection class III
    Approvals c UL US
    Standards applied IEC 60947-5-2

    Customs tariff number 85365019
    ECLASS 5.1.4 27270909
    ECLASS 8.0 27270909
    ECLASS 9.0 27270909
    ECLASS 10.0 27270909
    ECLASS 11.0 27270909
    ECLASS 12.0 27270909
    ECLASS 13.0 27270909
    ECLASS 14.0 27270909
    ECLASS 15.0 27270909
    ECLASS 16.0 27270909
    ETIM 5.0 EC002720
    ETIM 6.0 EC002720
    ETIM 7.0 EC002720
    ETIM 8.0 EC002720
    ETIM 9.0 EC002720
    ETIM 10.0 EC002720
