Primary brand
Mitsubishi Electric
Main function

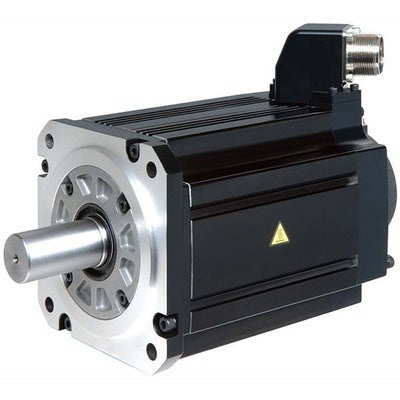

AC servo motor
Product series / family name
MELSERVO J4 series
Sub-range name
HG-JR series
Functions
AC brushless rotary servo motor
Design
straight shaft
built-in e/m brake
built-in absolute feedback encod. (22-bit)
oil seal
low inertia / medium-large power capacity
natural cooling
Supply voltage (AC)
400Vac class
Rated active power (kW)
7000W / 7kW
Rotational speed
3000rpm
5000rpm (maximum)
Moment of inertia
0.00529kg.m2 (52.9kg.cm2)
Connection type
2 x MS-type connectors
Mounting mode
176x176mm flange mounting
Resolution
22-bit (equivalent to 4194304ppr) feedback
Degree of protection
IP67
Dimensions
H221.5mm x W176mm x D392mm
Ambient air temperature for operation
0...+40 °C
Ambient air temperature for storage
-15°C...+70 °C
Maximum radial load
2450 N
Order code / Manufacturer SKU
HG-JR7034B
Manufacturer product status
Commercialized
Compliant with standard(s)
CE marking
TUV Rheinland
cULus
UL
KC
EN61800-3
EN60034-1
EN62061
SILCL3
EN50581
UL1004-1
UL1004-6
CSA
KC
EAC
