HG-KN43

Description

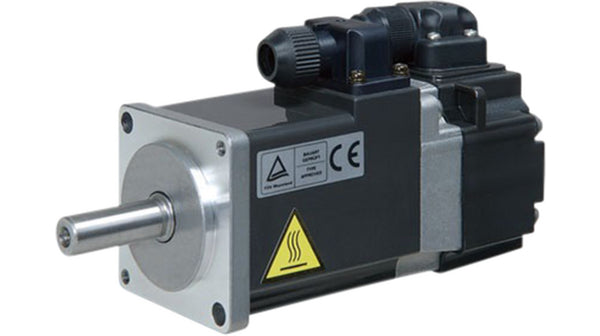

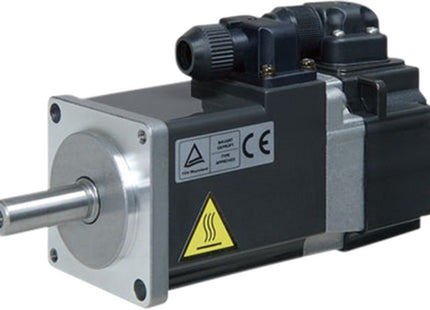

Servomotor HG-KN, 400W; Torque 1.3 Nm, max. torque 3.8 Nm, Key-way

FA-Servo-Motion: Servo Motor

Series MELSERVO-JE
Type HG-KN
Power Supply (V) 200
Rated Capacity (kW) 0,4
Inertia LOW INERTIA
Rated Torque (Nm) 1,3
Maximum Torque (Nm) 3,8
Rated Speed (rpm) 3.000
Inertia (kg*cm2) 0,375
Brake NO
Shaft Type KEYWAY
Current Type AC
Encoder Resolution (p/rev) 131.072
Maximum Speed (rpm) 5.000
Protection Class IP65
Encoder Type 17-BIT

Product Dimensions & Weight

Depth (mm) 128,3
Weight (kg) 1,4
Width (mm) 60
Height (mm) 60

Conformity

CE COMPLIANT
EAC COMPLIANT
UL/cUL COMPLIANT
UKCA COMPLIANT

HG-KN43

Product form

Servomotor HG-KN, 400W; Torque 1.3 Nm, max. torque 3.8 Nm, Key-way FA-Servo-Motion: Servo Motor Series MELSERVO-JE Type HG-KN Power Supply... Read more

Rs. 33,950.00 Rs. 16,024.40 Incl. VAT

      Description

      Servomotor HG-KN, 400W; Torque 1.3 Nm, max. torque 3.8 Nm, Key-way

      FA-Servo-Motion: Servo Motor

      Series MELSERVO-JE
      Type HG-KN
      Power Supply (V) 200
      Rated Capacity (kW) 0,4
      Inertia LOW INERTIA
      Rated Torque (Nm) 1,3
      Maximum Torque (Nm) 3,8
      Rated Speed (rpm) 3.000
      Inertia (kg*cm2) 0,375
      Brake NO
      Shaft Type KEYWAY
      Current Type AC
      Encoder Resolution (p/rev) 131.072
      Maximum Speed (rpm) 5.000
      Protection Class IP65
      Encoder Type 17-BIT

      Product Dimensions & Weight

      Depth (mm) 128,3
      Weight (kg) 1,4
      Width (mm) 60
      Height (mm) 60

      Conformity

      CE COMPLIANT
      EAC COMPLIANT
      UL/cUL COMPLIANT
      UKCA COMPLIANT
