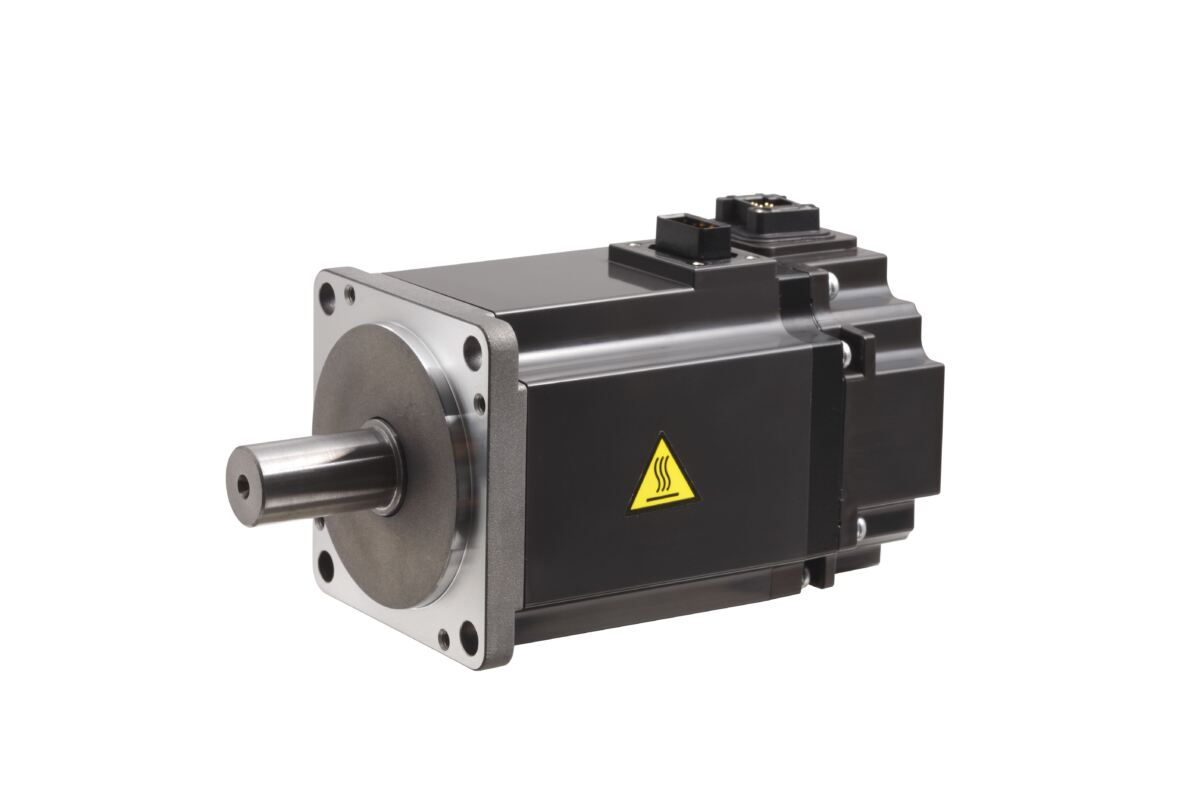

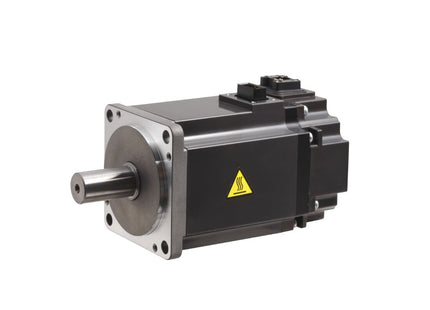

Servomotor HG Series, Power 400 W; Torque 1.3 Nm, Max. Torque 4.5 Nm
FA-Servo-Motion: Servo Motor
| Series |
MELSERVO-J4 |
| Type |
HG-KR |
| Power Supply (V) |
200 |
| Rated Capacity (kW) |
0,4 |
| Inertia |
LOW INERTIA |
| Rated Torque (Nm) |
1,3 |
| Maximum Torque (Nm) |
4,5 |
| Rated Speed (rpm) |
3.000 |
| Inertia (kg*cm2) |
0,371 |
| Brake |
NO |
| Shaft Type |
STRAIGHT SHAFT |
| Current Type |
AC |
| Encoder Resolution (p/rev) |
4.194.304 |
| Maximum Speed (rpm) |
6.000 |
| Protection Class |
IP65 |
| Encoder Type |
22-BIT |
Product Dimensions & Weight
| Depth (mm) |
98,3 |
| Weight (kg) |
1,4 |
| Width (mm) |
60 |
| Height (mm) |
77,1 |
Conformity
| CE |
COMPLIANT |
| EAC |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| UKCA |
COMPLIANT |
