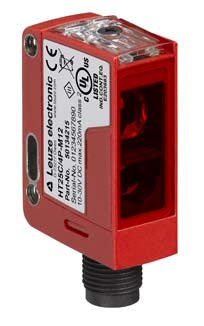

HT25C/4P-M12 50134216

Description

Series 25C
Operating principle Diffuse reflection principle with background suppression

Black-white error < 10% up to 400 mm
Operating range Guaranteed operating range
Operating range, white 90% 0 ... 1.2 m
Operating range, gray 18% 0.005 ... 0.75 m
Operating range, black 6% 0.005 ... 0.65 m
Operating range limit 0 ... 1.2 m (typical operating range)
Adjustment range 50 ... 1,200 mm
Light source LED, Red
Wavelength 640 nm
Transmitted-signal shape Pulsed
LED group Exempt group (in acc. with EN 62471)

Protective circuit Polarity reversal protection
Short circuit protected

Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 20 mA

Number of digital switching outputs 2 Piece(s)

Type Digital switching output

Switching element Transistor, PNP
Switching principle Light switching

Switching element Transistor, PNP
Switching principle Dark switching

Switching frequency 1,000 Hz
Response time 0.5 ms
Readiness delay 300 ms

Number of connections 1 Piece(s)

Function Signal OUT
Voltage supply
Type of connection Connector
Thread size M12
Type Male
Material PUR
No. of pins 4 -pin
Encoding A-coded

Dimension (W x H x L) 15 mm x 42.7 mm x 30 mm
Housing material Plastic
Plastic housing ABS
Lens cover material Plastic
Net weight 22 g
Housing color Red
Type of fastening Through-hole mounting with M4 thread
Via optional mounting device
Recommended tightening torque for M3 fastening 0.9 N·m
Recommended tightening torque for M4 fastening 1.4 N·m
Compatibility of materials ECOLAB

Type of display LED
Number of LEDs 2 Piece(s)
Operational controls Multiturn potentiometer
Function of the operational control Range adjustment

Ambient temperature, operation -40 ... 60 °C
Ambient temperature, storage -40 ... 70 °C

Degree of protection IP 67
IP 69K
Protection class III
Approvals c UL US
Standards applied IEC 60947-5-2

Customs tariff number 85365019
ECLASS 5.1.4 27270904
ECLASS 8.0 27270904
ECLASS 9.0 27270904
ECLASS 10.0 27270904
ECLASS 11.0 27270904
ECLASS 12.0 27270903
ECLASS 13.0 27270903
ECLASS 14.0 27270903
ECLASS 15.0 27270903
ECLASS 16.0 27270903
ETIM 5.0 EC002719
ETIM 6.0 EC002719
ETIM 7.0 EC002719
ETIM 8.0 EC002719
ETIM 9.0 EC002719
ETIM 10.0 EC002719

HT25C/4P-M12 50134216

Product form

Series 25C Operating principle Diffuse reflection principle with background suppression Black-white error < 10% up to 400 mm Operating range... Read more

Rs. 6,482.00 Excl. VAT

  • Shipped today? Order within: Jul 01, 2026 17:00:00 -0400

    Description

    Series 25C
    Operating principle Diffuse reflection principle with background suppression

    Black-white error < 10% up to 400 mm
    Operating range Guaranteed operating range
    Operating range, white 90% 0 ... 1.2 m
    Operating range, gray 18% 0.005 ... 0.75 m
    Operating range, black 6% 0.005 ... 0.65 m
    Operating range limit 0 ... 1.2 m (typical operating range)
    Adjustment range 50 ... 1,200 mm
    Light source LED, Red
    Wavelength 640 nm
    Transmitted-signal shape Pulsed
    LED group Exempt group (in acc. with EN 62471)

    Protective circuit Polarity reversal protection
    Short circuit protected

    Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple
    Residual ripple 0 ... 15 %, From UB
    Open-circuit current 0 ... 20 mA

    Number of digital switching outputs 2 Piece(s)

    Type Digital switching output

    Switching element Transistor, PNP
    Switching principle Light switching

    Switching element Transistor, PNP
    Switching principle Dark switching

    Switching frequency 1,000 Hz
    Response time 0.5 ms
    Readiness delay 300 ms

    Number of connections 1 Piece(s)

    Function Signal OUT
    Voltage supply
    Type of connection Connector
    Thread size M12
    Type Male
    Material PUR
    No. of pins 4 -pin
    Encoding A-coded

    Dimension (W x H x L) 15 mm x 42.7 mm x 30 mm
    Housing material Plastic
    Plastic housing ABS
    Lens cover material Plastic
    Net weight 22 g
    Housing color Red
    Type of fastening Through-hole mounting with M4 thread
    Via optional mounting device
    Recommended tightening torque for M3 fastening 0.9 N·m
    Recommended tightening torque for M4 fastening 1.4 N·m
    Compatibility of materials ECOLAB

    Type of display LED
    Number of LEDs 2 Piece(s)
    Operational controls Multiturn potentiometer
    Function of the operational control Range adjustment

    Ambient temperature, operation -40 ... 60 °C
    Ambient temperature, storage -40 ... 70 °C

    Degree of protection IP 67
    IP 69K
    Protection class III
    Approvals c UL US
    Standards applied IEC 60947-5-2

    Customs tariff number 85365019
    ECLASS 5.1.4 27270904
    ECLASS 8.0 27270904
    ECLASS 9.0 27270904
    ECLASS 10.0 27270904
    ECLASS 11.0 27270904
    ECLASS 12.0 27270903
    ECLASS 13.0 27270903
    ECLASS 14.0 27270903
    ECLASS 15.0 27270903
    ECLASS 16.0 27270903
    ETIM 5.0 EC002719
    ETIM 6.0 EC002719
    ETIM 7.0 EC002719
    ETIM 8.0 EC002719
    ETIM 9.0 EC002719
    ETIM 10.0 EC002719
