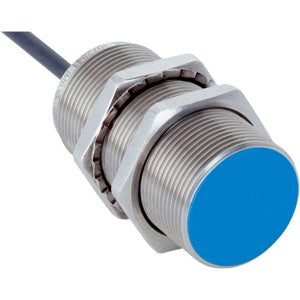

IMB30-15BDSVU2S sick

Description

Specification Value
Housing Metric; Standard design
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 15 mm
Safe sensing range Sa 12.15 mm
Installation type Flush
Switching frequency 500 Hz
Connection type Cable, 2-wire, 2 m
Output function NO
Electrical wiring DC 2-wire
Supply voltage 10 V DC ... 30 V DC
Enclosure rating IP68 1)IP69K 2)
Ripple ≤ 10 %
Voltage drop ≤ 4 V 1)≤ 4.5 V 2)
Time delay before availability ≤ 100 ms
Hysteresis 3 % ... 20 %
Reproducibility ≤ 2 % 3) 4)
Temperature drift (of Sr) ± 10 %
Continuous current Ia ≤ 100 mA
Ambient operating temperature –40 °C ... +100 °C
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Plastic, LCP
Housing length 60 mm
Thread length 55 mm
Tightening torque, max. Typ. 100 Nm 5)Typ. 100 Nm 6)
Protection class III
Cable material PUR
Conductor size 0.34 mm²
Cable diameter Ø 4.5 mm

IMB30-15BDSVU2S sick

Product form

Specification Value Housing Metric; Standard design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 15 mm... Read more

Rs. 1,802.00 Excl. VAT

    Description

    Specification Value
    Housing Metric; Standard design
    Thread size M30 x 1.5
    Diameter Ø 30 mm
    Sensing range Sn 15 mm
    Safe sensing range Sa 12.15 mm
    Installation type Flush
    Switching frequency 500 Hz
    Connection type Cable, 2-wire, 2 m
    Output function NO
    Electrical wiring DC 2-wire
    Supply voltage 10 V DC ... 30 V DC
    Enclosure rating IP68 1)IP69K 2)
    Ripple ≤ 10 %
    Voltage drop ≤ 4 V 1)≤ 4.5 V 2)
    Time delay before availability ≤ 100 ms
    Hysteresis 3 % ... 20 %
    Reproducibility ≤ 2 % 3) 4)
    Temperature drift (of Sr) ± 10 %
    Continuous current Ia ≤ 100 mA
    Ambient operating temperature –40 °C ... +100 °C
    Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
    Sensing face material Plastic, LCP
    Housing length 60 mm
    Thread length 55 mm
    Tightening torque, max. Typ. 100 Nm 5)Typ. 100 Nm 6)
    Protection class III
    Cable material PUR
    Conductor size 0.34 mm²
    Cable diameter Ø 4.5 mm
