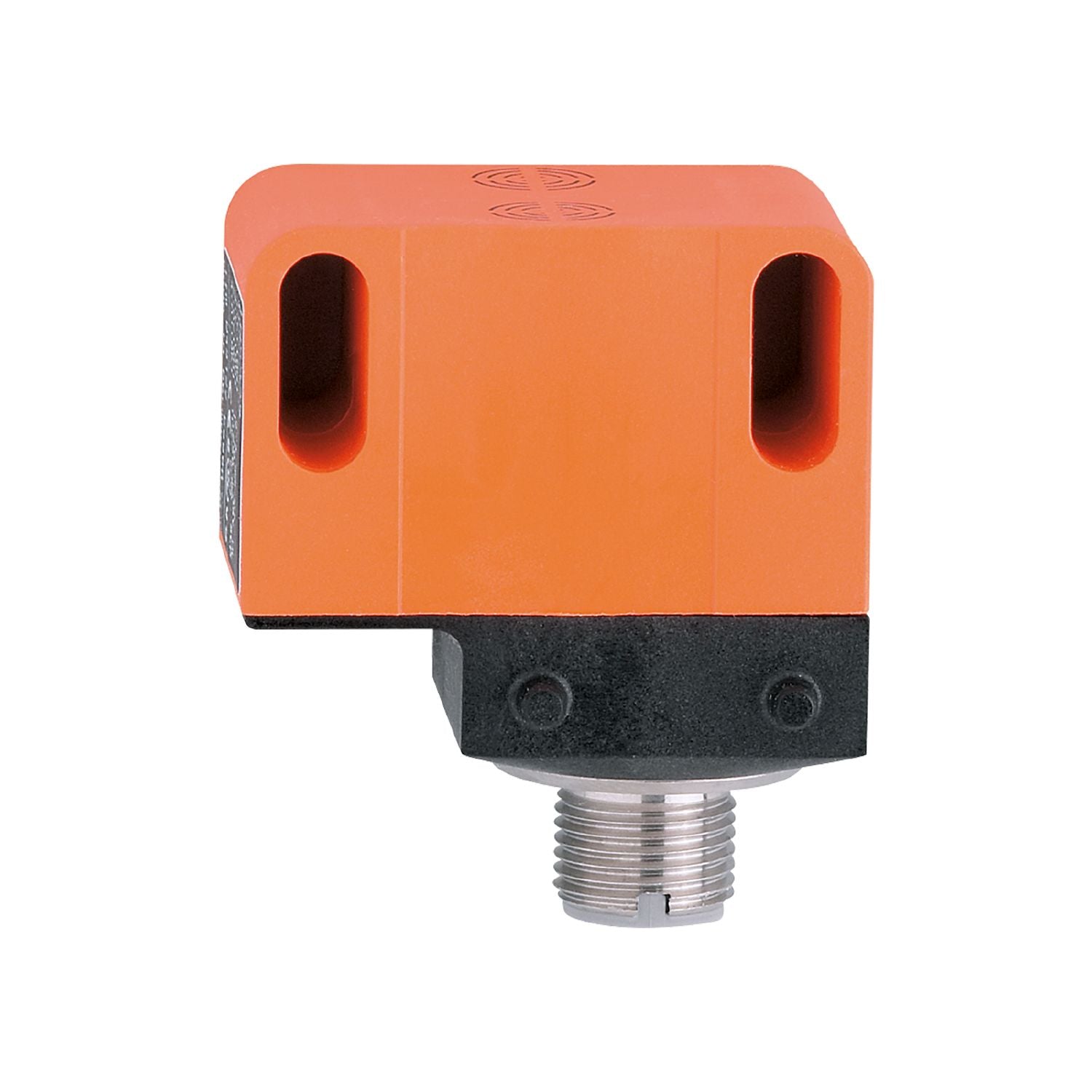

IN5327 IFM

Description

Product characteristics

Electrical design PNP
Output function 2 x normally open
Sensing range[mm] 4
Housing rectangular
Dimensions[mm] 40 x 26 x 47

Application

Special feature Gold-plated contacts
Application position sensor for valve actuators

Electrical data

Operating voltage[V] 10...30 DC
Current consumption[mA] 15; (24 V)
Protection class II
Reverse polarity protection yes

Outputs

Electrical design PNP
Output function 2 x normally open
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 200
Switching frequency DC[Hz] 1300
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes

Detection zone

Sensing range[mm] 4
Real sensing range Sr[mm] 4 ± 10 %
Operating distance[mm] 0...3.25

Accuracy / deviations

Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis[% of Sr] 1...15
Switch point drift[% of Sr] -10...10

Operating conditions

Ambient temperature[°C] -25...80
Protection IP 67

Tests / approvals

EMC
EN 60947-5-2
EN 55011 class B
MTTF[years] 1064
UL approval
Ta 0...40 °C
Enclosure type Type 1
File number UL E174191

Mechanical data

Weight[g] 57
Housing rectangular
Mounting non-flush mountable
Dimensions[mm] 40 x 26 x 47
Materials housing: PBT

Displays / operating elements

Display
switching status 2 x LED, yellow

Remarks

Pack quantity 1 pcs.

Electrical connection - plug

Connector 1 x M12; coding: A; Moulded body: stainless steel; Contacts: gold-plated

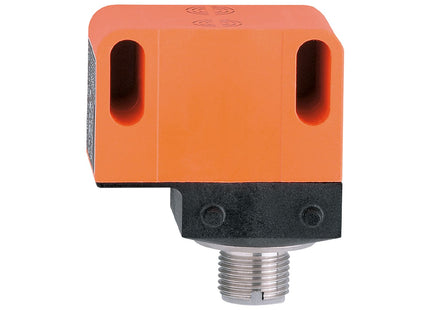

IN5327 IFM

Product form

Product characteristics Electrical design PNP Output function 2 x normally open Sensing range[mm] 4 Housing rectangular Dimensions[mm] 40 x 26... Read more

Rs. 14,353.00 Excl. VAT

  • Shipped today? Order within: Jul 02, 2026 17:00:00 -0400

    Description

    Product characteristics

    Electrical design PNP
    Output function 2 x normally open
    Sensing range[mm] 4
    Housing rectangular
    Dimensions[mm] 40 x 26 x 47

    Application

    Special feature Gold-plated contacts
    Application position sensor for valve actuators

    Electrical data

    Operating voltage[V] 10...30 DC
    Current consumption[mA] 15; (24 V)
    Protection class II
    Reverse polarity protection yes

    Outputs

    Electrical design PNP
    Output function 2 x normally open
    Max. voltage drop switching output DC[V] 2.5
    Permanent current rating of switching output DC[mA] 200
    Switching frequency DC[Hz] 1300
    Short-circuit protection yes
    Type of short-circuit protection pulsed
    Overload protection yes

    Detection zone

    Sensing range[mm] 4
    Real sensing range Sr[mm] 4 ± 10 %
    Operating distance[mm] 0...3.25

    Accuracy / deviations

    Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
    Hysteresis[% of Sr] 1...15
    Switch point drift[% of Sr] -10...10

    Operating conditions

    Ambient temperature[°C] -25...80
    Protection IP 67

    Tests / approvals

    EMC
    EN 60947-5-2
    EN 55011 class B
    MTTF[years] 1064
    UL approval
    Ta 0...40 °C
    Enclosure type Type 1
    File number UL E174191

    Mechanical data

    Weight[g] 57
    Housing rectangular
    Mounting non-flush mountable
    Dimensions[mm] 40 x 26 x 47
    Materials housing: PBT

    Displays / operating elements

    Display
    switching status 2 x LED, yellow

    Remarks

    Pack quantity 1 pcs.

    Electrical connection - plug

    Connector 1 x M12; coding: A; Moulded body: stainless steel; Contacts: gold-plated
