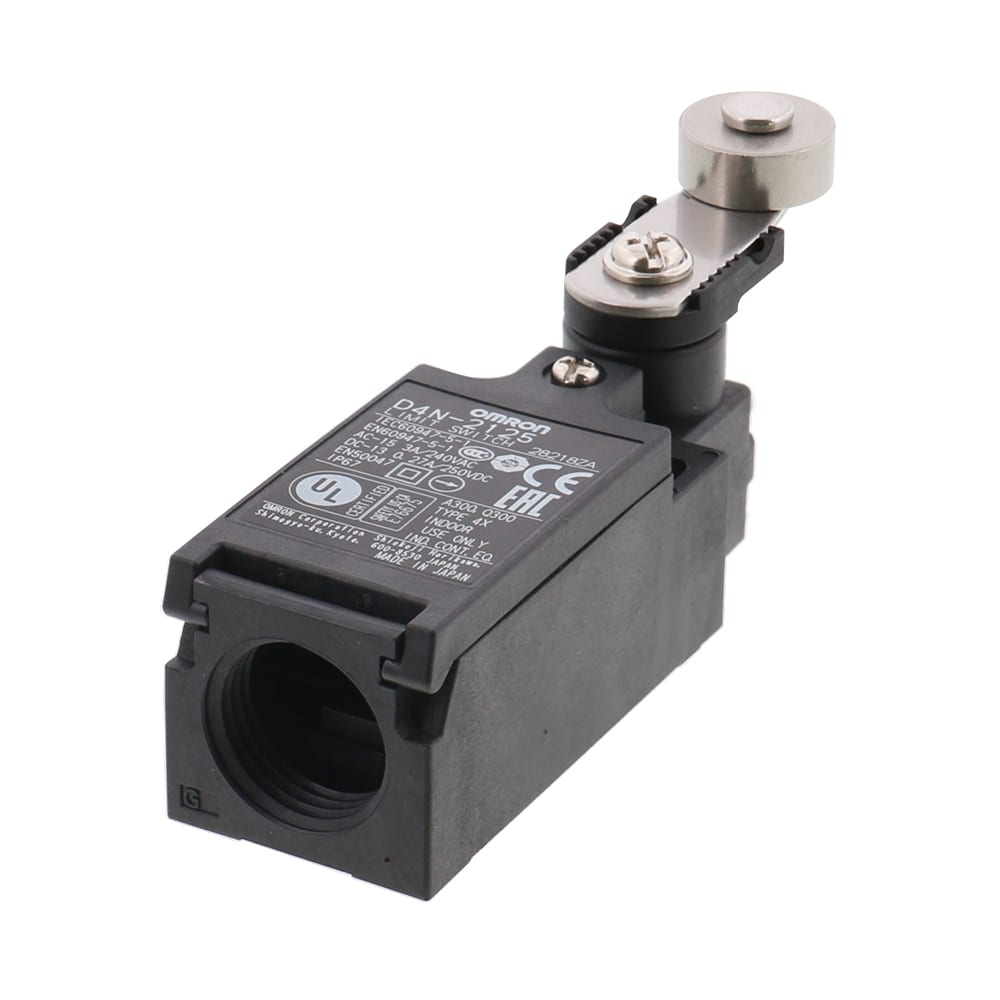

LIMIT SWITCH MODEL-D4N-2120 MAKE- OMRON SNAP ACTION 1NO/1NC, RESIN LEVER

Description

  • Detector Shape
    Roller Lever Type (rotation)
  • Main Body Size
    Small
  • Environment
    Standard
  • Plunger Shape Type
    -
  • Roller Lever Shape Type
    Standard
  • Lever Shape Type
    -
  • Rod Shape Type
    -
  • Operating Temperature Range
    -30～70
  • Acquired Standards
    TUV / UL / GB(CCC) / EN
  • Protection Structure
    IP67
  • Force Required for Push Side O.F.
    5
  • Motion to Switching P.T.
    -
  • Angle to Switching P.T
    18-27
  • Max. Stroke T.T
    -
  • Max. Angle T.T
    80
  • Contact Type
    2-circuit Double-break
  • Contact Point Type
    -
  • Mechanical Life
    1500
  • Mechanical Operation Frequency
    30
  • Rated Operating Voltage
    DC125V / DC250V
  • Rated Conductance Current
    2.5
  • Main Body External Dimension, Width W
    31
  • Main Body External Dimension, Height H
    47
  • Main Body External Dimension, Length L
    82.5
  • Lever Length R
    26
  • Detector Element Details
    Roller lever
  • Indicator Light
    -
  • Movement After the Operation OT
    -
  • Operating Position OP
    -
  • Torque necessary for operation, OF
    -
  • Conduit Size
    G1/2
  • Specification of Terminal
    -
  • Details Type
    1 Conduit Shape 2 Contact Series
  • O.D.
    φ17.5×6.8
  • Mounting System
    Front mounting
  • Direction of Operation
    Snap action (direct circuit opening operation included)
  • Roller Type
    Resin lever / resin roller R26
  • Contact format
    1NC/1NO
  • Release Key Type
    -
  • Lock / Release System
    -
  • Built-in Switch Specification
    -
  • AC Rated Voltage
    -
  • DC Rated Voltage
    -

    DELIVERY PERIOD : 1-2 WEEKS

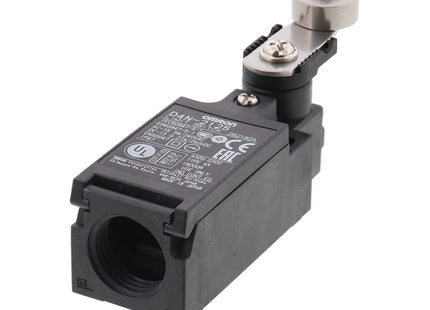

LIMIT SWITCH MODEL-D4N-2120 MAKE- OMRON SNAP ACTION 1NO/1NC, RESIN LEVER

Product form

Detector Shape Roller Lever Type (rotation) Main Body Size Small Environment Standard Plunger Shape Type - Roller Lever Shape Type... Read more

Rs. 2,359.00 Rs. 1,391.22 Incl. VAT

      Description

      • Detector Shape
        Roller Lever Type (rotation)
      • Main Body Size
        Small
      • Environment
        Standard
      • Plunger Shape Type
        -
      • Roller Lever Shape Type
        Standard
      • Lever Shape Type
        -
      • Rod Shape Type
        -
      • Operating Temperature Range
        -30～70
      • Acquired Standards
        TUV / UL / GB(CCC) / EN
      • Protection Structure
        IP67
      • Force Required for Push Side O.F.
        5
      • Motion to Switching P.T.
        -
      • Angle to Switching P.T
        18-27
      • Max. Stroke T.T
        -
      • Max. Angle T.T
        80
      • Contact Type
        2-circuit Double-break
      • Contact Point Type
        -
      • Mechanical Life
        1500
      • Mechanical Operation Frequency
        30
      • Rated Operating Voltage
        DC125V / DC250V
      • Rated Conductance Current
        2.5
      • Main Body External Dimension, Width W
        31
      • Main Body External Dimension, Height H
        47
      • Main Body External Dimension, Length L
        82.5
      • Lever Length R
        26
      • Detector Element Details
        Roller lever
      • Indicator Light
        -
      • Movement After the Operation OT
        -
      • Operating Position OP
        -
      • Torque necessary for operation, OF
        -
      • Conduit Size
        G1/2
      • Specification of Terminal
        -
      • Details Type
        1 Conduit Shape 2 Contact Series
      • O.D.
        φ17.5×6.8
      • Mounting System
        Front mounting
      • Direction of Operation
        Snap action (direct circuit opening operation included)
      • Roller Type
        Resin lever / resin roller R26
      • Contact format
        1NC/1NO
      • Release Key Type
        -
      • Lock / Release System
        -
      • Built-in Switch Specification
        -
      • AC Rated Voltage
        -
      • DC Rated Voltage
        -

        DELIVERY PERIOD : 1-2 WEEKS
