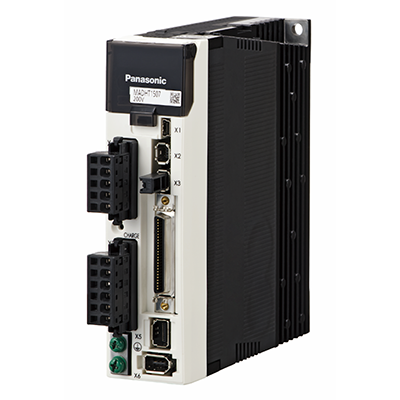

MDDHT3530 panasonic

Description

Item Specifications
Part Number MDDHT3530
Product details A5 series
Speed, Position, Torque, Full-closed type
with the safety function
Family Name MINAS A5
Series A5 series
Type Speed, Position, Torque, Full-closed type
Frame D-Frame
Frequency response (kHz) 2.3
Control method Position control, Velocity control, Torque control, and Full-closed control
Safety Function with
Power device Max. current rating 30A
Current detector current rating 30A
Supply voltage Single/3-phase 200 V
I/F Classification of type Analog/Pulse
Dimensions (W) (Unit: mm) 86
Dimensions (H) (Unit: mm) 150
Dimensions (D) (Unit: mm) 170
Mass (kg) 1.8
Environment For more details, please refer to the instruction manual.

MDDHT3530 panasonic

Product form

Item Specifications Part Number MDDHT3530 Product details A5 seriesSpeed, Position, Torque, Full-closed typewith the safety function Family Name MINAS A5... Read more

Rs. 13,213.00 Excl. VAT

    Description

    Item Specifications
    Part Number MDDHT3530
    Product details A5 series
    Speed, Position, Torque, Full-closed type
    with the safety function
    Family Name MINAS A5
    Series A5 series
    Type Speed, Position, Torque, Full-closed type
    Frame D-Frame
    Frequency response (kHz) 2.3
    Control method Position control, Velocity control, Torque control, and Full-closed control
    Safety Function with
    Power device Max. current rating 30A
    Current detector current rating 30A
    Supply voltage Single/3-phase 200 V
    I/F Classification of type Analog/Pulse
    Dimensions (W) (Unit: mm) 86
    Dimensions (H) (Unit: mm) 150
    Dimensions (D) (Unit: mm) 170
    Mass (kg) 1.8
    Environment For more details, please refer to the instruction manual.
