MODEL- 111.10 STANDARD : EN 837-1

Description

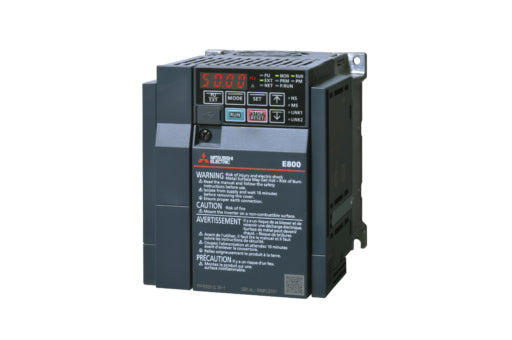

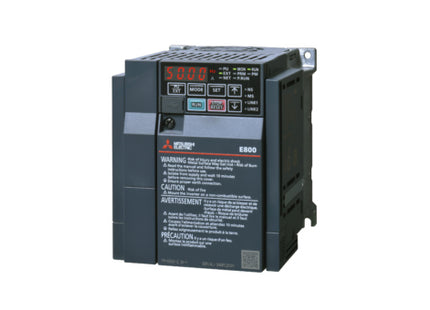

FA-Inverter: Inverter

Series FR-E800 SERIES
Type FR-E800-ETH INVERTER
Minimum Rated Voltage (V) 200
Min. Permissible Voltage (V) 170
Maximum Rated Voltage (V) 240
Max. Permissible Voltage (V) 264
Current Type AC
Phases 1
Rated Output Current ND (A) 5
Rated Motor Capacity ND (kW) 0,75
Frequency Range (Hz) 0,2–590
Control Method V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Brake Chopper ED (%) 30
Integrated EMC Filter NO
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display BUILT-IN
Display Type 4 DIGITS LED
PLC Function YES
Program Memory 2K
Program Memory Unit STEPS
Integrated Digital Inputs 2
Digital Outputs (Transistor) 0
Digital Outputs (Relay) 1
Integrated Analogue Inputs 2
Integrated Analogue Outputs 0
IO Type of Terminal Block SPRING CLAMP
Expandable YES
RS-485 NO
USB 1 (MINI B)
Ethernet Port 2
Built-In Network BACNET/IP, MODBUS/TCP, ETHERNET/IP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC
Leakage Current (mA) 1,2
Power Loss ND (W) 50
Protection Class IP20

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 108
Height (mm) 128
Depth (mm) 135
Weight (kg) 1,3

Life Cycle

Serial No. on the Box QR1

Campaigns

Selling Status Standard

Product Packaging

Cardboard (g) 215
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 10
Wood (g) 0
Glass (g) 0
Others (g) 0

MODEL- 111.10 STANDARD : EN 837-1

Product form

FA-Inverter: Inverter Series FR-E800 SERIES Type FR-E800-ETH INVERTER Minimum Rated Voltage (V) 200 Min. Permissible Voltage (V) 170 Maximum Rated... Read more

Rs. 1,300.00 Excl. VAT

  • Shipped today? Order within: Jul 14, 2026 17:00:00 -0400

    Description

    FA-Inverter: Inverter

    Series FR-E800 SERIES
    Type FR-E800-ETH INVERTER
    Minimum Rated Voltage (V) 200
    Min. Permissible Voltage (V) 170
    Maximum Rated Voltage (V) 240
    Max. Permissible Voltage (V) 264
    Current Type AC
    Phases 1
    Rated Output Current ND (A) 5
    Rated Motor Capacity ND (kW) 0,75
    Frequency Range (Hz) 0,2–590
    Control Method V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
    Motor Type INDUCTION MOTOR, PM MOTOR
    Brake Chopper ED (%) 30
    Integrated EMC Filter NO
    Safe Torque Off (STO) YES
    Regenerative (4Q) NO
    Integrated DC Choke NO
    Display BUILT-IN
    Display Type 4 DIGITS LED
    PLC Function YES
    Program Memory 2K
    Program Memory Unit STEPS
    Integrated Digital Inputs 2
    Digital Outputs (Transistor) 0
    Digital Outputs (Relay) 1
    Integrated Analogue Inputs 2
    Integrated Analogue Outputs 0
    IO Type of Terminal Block SPRING CLAMP
    Expandable YES
    RS-485 NO
    USB 1 (MINI B)
    Ethernet Port 2
    Built-In Network BACNET/IP, MODBUS/TCP, ETHERNET/IP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC
    Leakage Current (mA) 1,2
    Power Loss ND (W) 50
    Protection Class IP20

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT

    Product Dimensions & Weight

    Width (mm) 108
    Height (mm) 128
    Depth (mm) 135
    Weight (kg) 1,3

    Life Cycle

    Serial No. on the Box QR1

    Campaigns

    Selling Status Standard

    Product Packaging

    Cardboard (g) 215
    Other paper (g) 0
    Aluminum (g) 0
    Steel (g) 0
    Styrofoam (g) 0
    Other plastic (g) 10
    Wood (g) 0
    Glass (g) 0
    Others (g) 0
