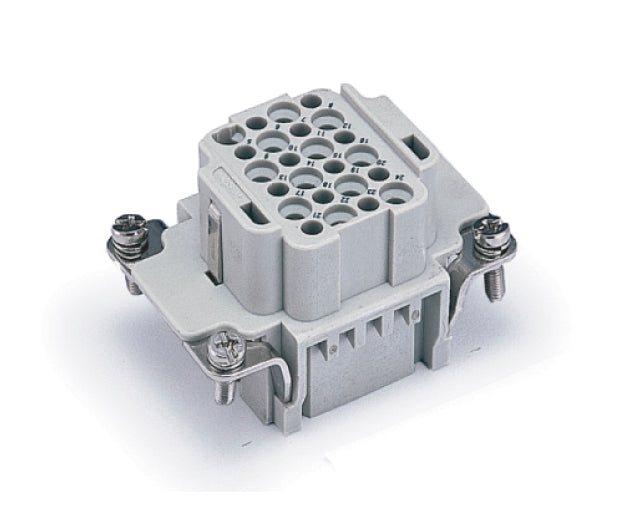

MODEL- 24 MALE CONNECTOR (HDD-024-FC)

Description

Technical Data
  • Series

    HDD insert series

  • Connection type

    Crimp connection

  • Male/female

    Female

  • Specifications

    6B

  • Number of connector contacts

    24

  • Grounding contacts

    Yes

  • Rated current

    10A

  • Rated voltage

    250V

  • Rated pulse voltage

    4KV

  • Class of pollution

    3

  • Parameters when class of pollution is 2

    10A 230/400V 4kV 2

  • Rated voltage as per UL/CSA

    600V

  • Insulation resistance

    ≥10¹ºΩ

  • Working temperature

    -40℃...+125℃

  • Mating cycles

    ≥500

  • Inserts material

    Polycarbonate

  • Inserts color

    RAL 7032 (light gray)

  • Flame retardant rating as per UL94

    V0

  • Contact material

    Copper alloy

  • Surface treatment

    Silver-plated

    Gold-plated

  • Contact resistance

    ≤3mΩ

  • Wire gauge (mm²)

    0.14-2.5mm²

  • Wire gauge (AWG)

    26-14 AWG

  • Stripping length

    5mm

    6mm

    8mm

  • Standard

    DIN EN 60 664

    DIN EN 61984

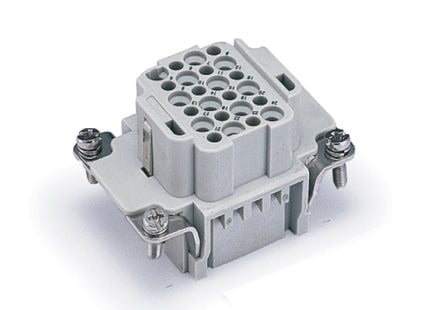

MODEL- 24 MALE CONNECTOR (HDD-024-FC)

Product form

Technical Data Series HDD insert series Connection type Crimp connection Male/female Female Specifications 6B Number of connector contacts 24 Grounding... Read more

Rs. 1,372.00 Excl. VAT

    Description

    Technical Data
    • Series

      HDD insert series

    • Connection type

      Crimp connection

    • Male/female

      Female

    • Specifications

      6B

    • Number of connector contacts

      24

    • Grounding contacts

      Yes

    • Rated current

      10A

    • Rated voltage

      250V

    • Rated pulse voltage

      4KV

    • Class of pollution

      3

    • Parameters when class of pollution is 2

      10A 230/400V 4kV 2

    • Rated voltage as per UL/CSA

      600V

    • Insulation resistance

      ≥10¹ºΩ

    • Working temperature

      -40℃...+125℃

    • Mating cycles

      ≥500

    • Inserts material

      Polycarbonate

    • Inserts color

      RAL 7032 (light gray)

    • Flame retardant rating as per UL94

      V0

    • Contact material

      Copper alloy

    • Surface treatment

      Silver-plated

      Gold-plated

    • Contact resistance

      ≤3mΩ

    • Wire gauge (mm²)

      0.14-2.5mm²

    • Wire gauge (AWG)

      26-14 AWG

    • Stripping length

      5mm

      6mm

      8mm

    • Standard

      DIN EN 60 664

      DIN EN 61984
