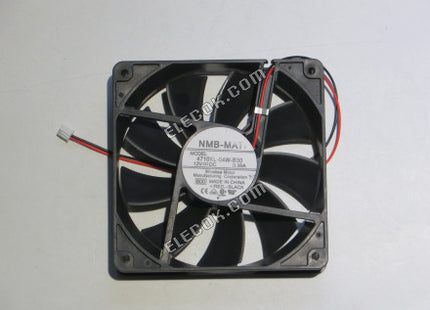

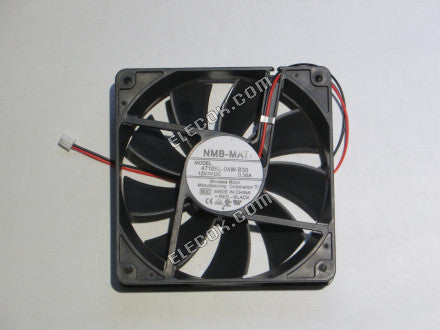

MODEL-4710KL-04W-B30 PCAM NMB FAN

Description

NMB 4710KL-04W-B30-B00 12V 0.36A 3.36W 2wires Cooling Fan

Data Sheet NMB 4710KL-04W-B30-B00 12V 0.36A 2wires Cooling
Manufacturer NMB
Part number 4710KL-04W-B30-B00
other name 11925KA-12L-AA-00,4710KL04WB30B00,4710KL04WB30B00-ND,471OKL-O4W-B3O-BOO
AC/DC DC Fans
Fan Type Axial
Size 119 mm x 119 mm x 25 mm
Voltage 12V
Current 0.36A
PoWer 3.36W
Termination 2 wires
Speed (RPM) 2200
Air Flow 88.2 CFM (2.50 m³/min)
Bearing Ball
Shape Square
Series 4710KL
Static Pressure 0.129 in H2O (32.1 Pa)
Noise 35 dBA
Blade_material Plastic
Frame_material Plastic
Other Name 47L0KL-04W-B30-B00

MODEL-4710KL-04W-B30 PCAM NMB FAN

Product form

NMB 4710KL-04W-B30-B00 12V 0.36A 3.36W 2wires Cooling Fan Data Sheet NMB 4710KL-04W-B30-B00 12V 0.36A 2wires Cooling Manufacturer NMB Part number... Read more

Rs. 830.00 Excl. VAT

    Description

    NMB 4710KL-04W-B30-B00 12V 0.36A 3.36W 2wires Cooling Fan

    Data Sheet NMB 4710KL-04W-B30-B00 12V 0.36A 2wires Cooling
    Manufacturer NMB
    Part number 4710KL-04W-B30-B00
    other name 11925KA-12L-AA-00,4710KL04WB30B00,4710KL04WB30B00-ND,471OKL-O4W-B3O-BOO
    AC/DC DC Fans
    Fan Type Axial
    Size 119 mm x 119 mm x 25 mm
    Voltage 12V
    Current 0.36A
    PoWer 3.36W
    Termination 2 wires
    Speed (RPM) 2200
    Air Flow 88.2 CFM (2.50 m³/min)
    Bearing Ball
    Shape Square
    Series 4710KL
    Static Pressure 0.129 in H2O (32.1 Pa)
    Noise 35 dBA
    Blade_material Plastic
    Frame_material Plastic
    Other Name 47L0KL-04W-B30-B00
